约翰迪尔零件查询210C - BACKHOE, LOADER CENTER LINK PITCH CYLINDER (746967 - 752372)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 944 次

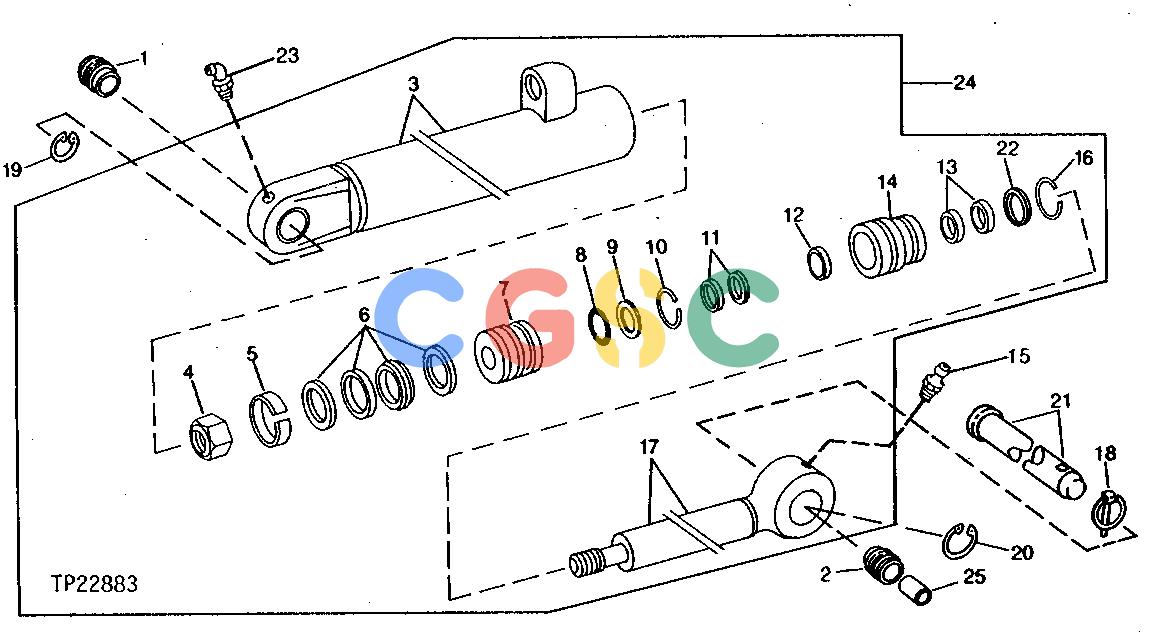

Pos.	Part No	Qty	Parts name	Comments
1.	AZ23708	[1]	Bushing	(SUB FOR AT101223)
2.	AT101224	[1]	Bushing
3.	RE21843	[1]	Hydraulic Cylinder Barrel
4.	R82570	[1]	Lock Nut
5.	R82569	[1]	Wear Ring	(BK)
6.	RE21848	[1]	Seal	(BK)
7.	R82568	[1]	Piston
8.	R94418	[1]	O-Ring	(BK)
9.	R79117	[1]	Back-Up Ring	(BK)
10.	R82571	[1]	Snap Ring
11.	RE21846	[1]	Seal	(RK)
12.	R82566	[1]	Seal	(RK)
13.	RE24532	[1]	Seal	(RK)
14.	........	[1]	Hydr. Cylinder Rod Guide	( R94417 NO LONGER USED) (SUB H157662 ) (ALSO ORDER AH149810)
15.	JD7797	[1]	Lubrication Fitting
16.	R90565	[1]	Snap Ring	(SUB FOR C17048, THIS APPLICATION)
17.	RE21850	[1]	Hydraulic Cylinder Rod
18.	AR62151	[1]	Quick Lock Pin
19.	40M7225	[2]	Snap Ring
20.	40M1863	[2]	Snap Ring
21.	R58262	[1]	Pin Fastener	CATEGORY I
21.	R53296	[1]	Pin Fastener	CATEGORY II
22.	H169509	[AR]	Back-Up Ring	(SUB FOR R91726)(BK) (DISASSEMBLY AID TOOL)
23.	JD7806	[1]	Lubrication Fitting
24.	........	[1]	Hydraulic Cylinder	(WHEN RE33802 IS NO LONGER AVAILABLE, ORDER INDIVIDUAL COMPONENT PARTS)
25.	T105771	[1]	Bushing	CATEGORY I
25.	T105772	[1]	Bushing	CATEGORY II
