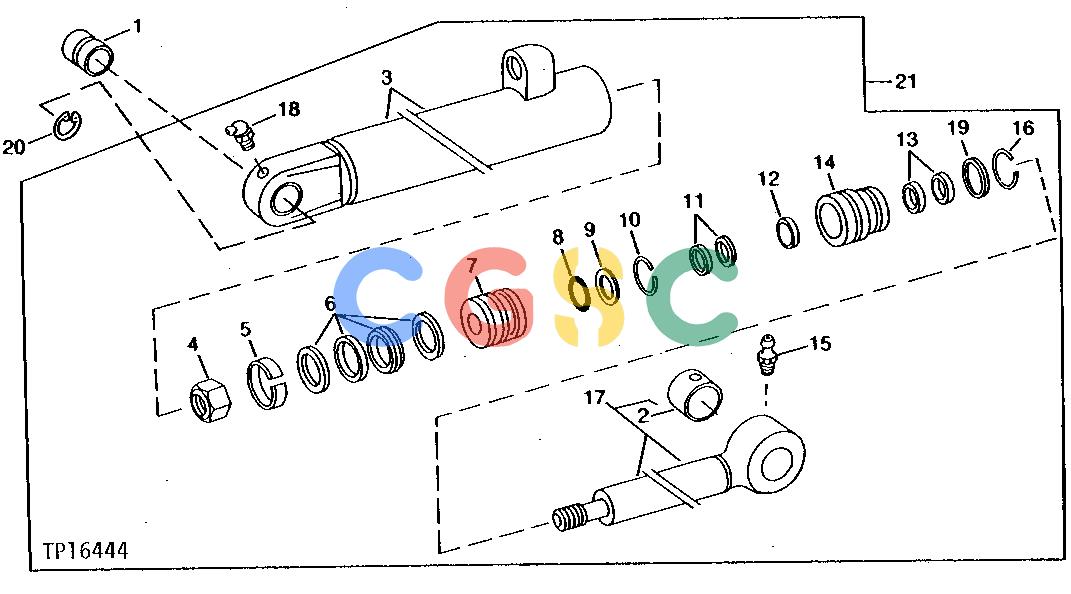

约翰迪尔零件查询210C - BACKHOE, LOADER HITCH TILT CYLINDER ( - 746966)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
762 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AZ23708
|
[1] |
Bushing
|
|
| 2. |
R82564
|
[1] |
Bushing
|
|
| 3. |
RE21843
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 4. |
R82570
|
[1] |
Lock Nut
|
|
| 5. |
R82569
|
[1] |
Wear Ring
|
|
| 6. |
RE21848
|
[1] |
Seal
|
|
| 7. |
R82568
|
[1] |
Piston
|
|
| 8. |
R83465
|
[1] |
O-Ring
|
|
| 9. |
R82567
|
[1] |
Back-Up Ring
|
|
| 10. |
R82571
|
[1] |
Snap Ring
|
|
| 11. |
RE21846
|
[1] |
Seal
|
|
| 12. |
R82566
|
[1] |
Seal
|
|
| 13. |
RE24532
|
[1] |
Seal
|
|
| 14. |
R82565
|
[1] |
Hydr. Cylinder Rod Guide
|
|
| 15. |
JD7759
|
[1] |
Lubrication Fitting
|
|
| 16. |
R90565
|
[1] |
Snap Ring
|
|
| 17. |
RE21845
|
[1] |
Hydraulic Cylinder Rod
|
|
| 18. |
JD7806
|
[1] |
Lubrication Fitting
|
|
| 19. |
H169509
|
[AR] |
Back-Up Ring
|
|
| 20. |
40M7225
|
[2] |
Snap Ring
|
|
| 21. |
RE21842
|
[1] |
Hydraulic Cylinder
|
|
