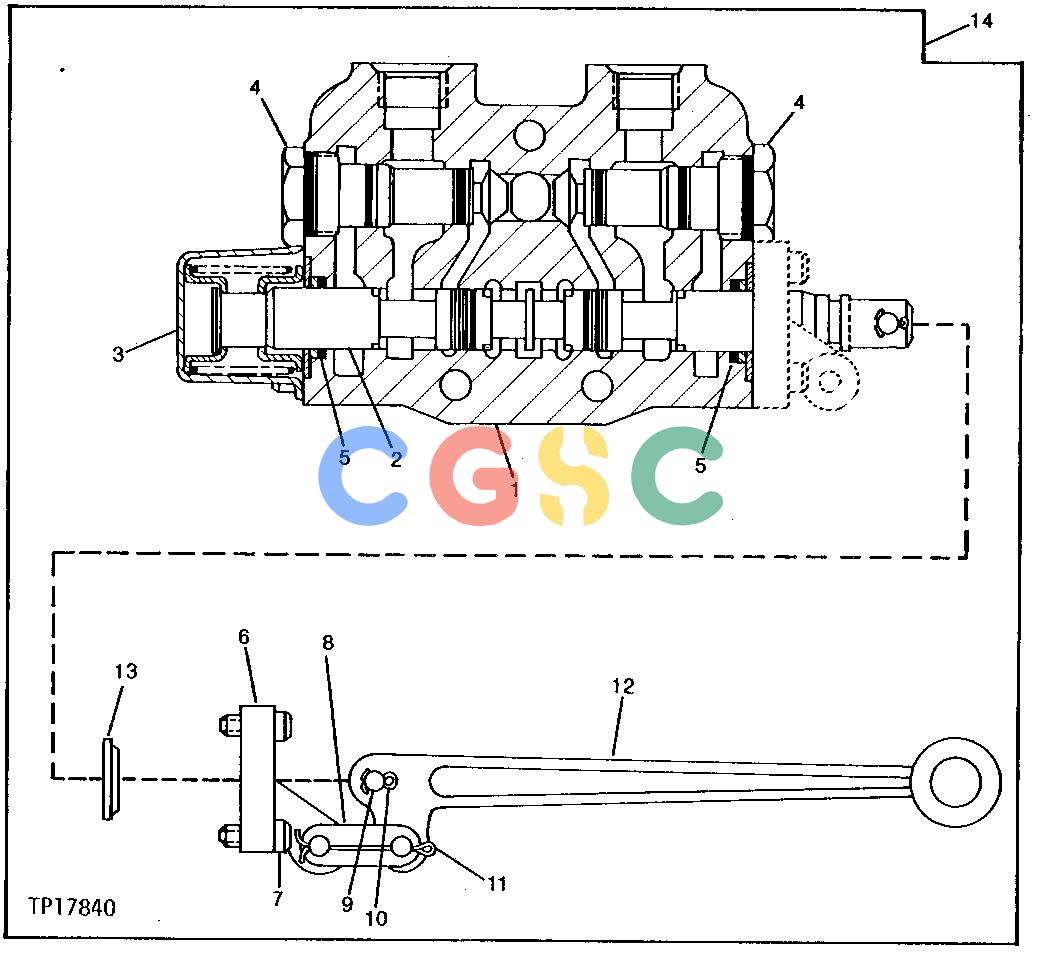

约翰迪尔零件查询210C - BACKHOE, LOADER Implement, Tilt And Pitch Sections With Handle (Three-Point Hitch Valve) ( - 752372)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
572 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
........
|
[1] |
Housing
|
|
| 2. |
........
|
[1] |
Spool
|
|
| 3. |
AT104333
|
[1] |
Hydr./Pilot Control Valve
|
|
| 4. |
AT38197
|
[2] |
Plug
|
|
| 5. |
T104785
|
[1] |
Back-Up Ring
|
|
| 5. |
T104786
|
[1] |
Washer
|
|
| 5. |
T104783
|
[2] |
O-Ring
|
|
| 5. |
U11296
|
[2] |
O-Ring
|
|
| 6. |
T36103
|
[1] |
Bracket
|
|
| 7. |
21H1349
|
[2] |
Screw
|
|
| 8. |
AU30041
|
[1] |
Link
|
|
| 9. |
T35986
|
[1] |
Pin Fastener
|
|
| 10. |
11M7077
|
[1] |
Cotter Pin
|
|
| 11. |
11H272
|
[1] |
Cotter Pin
|
|
| 12. |
T113030
|
[1] |
Handle
|
|
| 13. |
........
|
[1] |
Seal
|
|
| 14. |
........
|
[1] |
Valve
|
|
