约翰迪尔零件查询210C - BACKHOE, LOADER Replacement Implement, Tilt And Pitch Sections With Handle (Three-Point Hitch Valve) ( - 752372)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 252 次

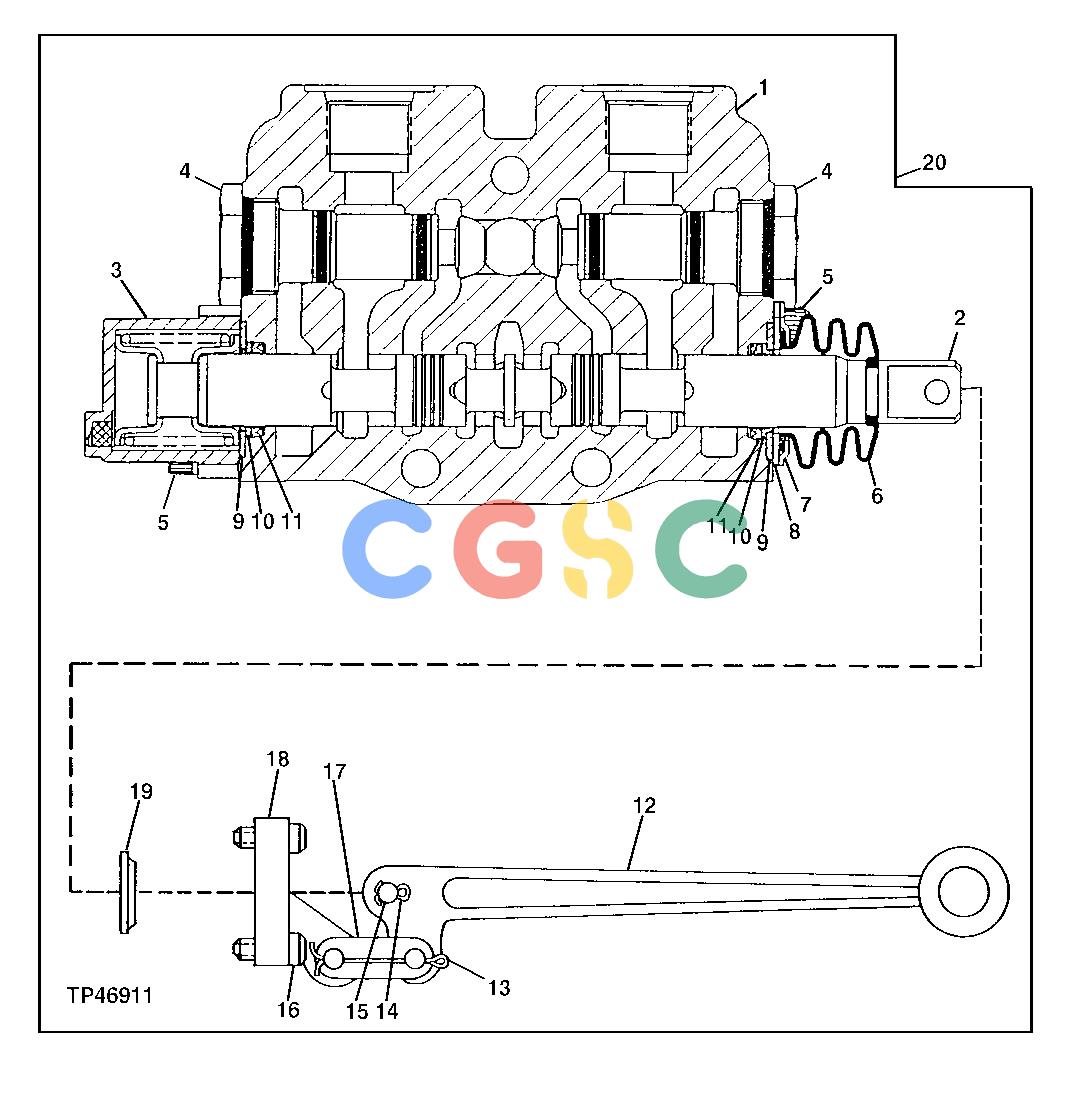

Pos.	Part No	Qty	Parts name	Comments
1.	........	[1]	Housing
2.	........	[1]	Spool
3.	AT104333	[1]	Hydr./Pilot Control Valve
4.	AT38197	[2]	Plug
5.	19H3554	[2]	Screw	(K: KIT AT315751 SPOOL, SEAL KIT (SUB FOR AT167443)) 1/4" X 0.880"
6.	T151335	[2]	Boot	(K: KIT AT315751 SPOOL, SEAL KIT (SUB FOR AT167443))
7.	T151337	[1]	Retainer	(K: KIT AT315751 SPOOL, SEAL KIT (SUB FOR AT167443))
8.	........	[1]	Plate	(K: KIT AT315751 SPOOL, SEAL KIT (SUB FOR AT167443))
9.	........	[2]	Retainer	(K: KIT AT315751 SPOOL, SEAL KIT (SUB FOR AT167443))
10.	........	[2]	Seal	(K: KIT AT315751 SPOOL, SEAL KIT (SUB FOR AT167443))
11.	........	[2]	Seal	(K: KIT AT315751 SPOOL, SEAL KIT (SUB FOR AT167443))
12.	T113030	[1]	Handle
13.	11H272	[1]	Cotter Pin	1/16" X 2"
14.	11M7077	[1]	Cotter Pin	1.600 X 25 MM
15.	T35986	[1]	Pin Fastener
16.	21H1349	[2]	Screw	1/4" X 7/8"
17.	AU30041	[1]	Link	(ALSO ORDER 11H272, THIS APPLICATION)
18.	T36103	[1]	Bracket
19.	........	[1]	Seal
20.	AT167247	[1]	Spool Valve	(ALSO ORDER AT160682)
