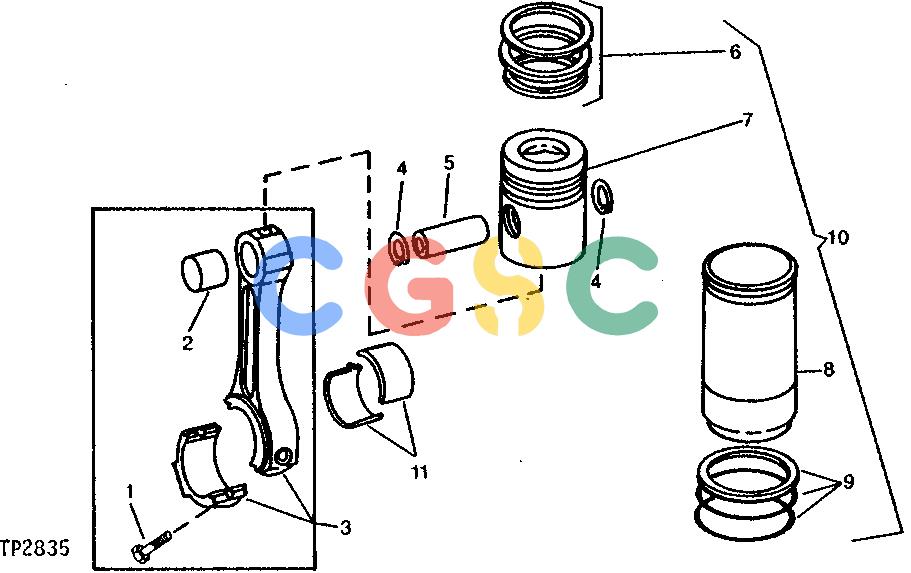

约翰迪尔零件查询300B - BACKHOE, LOADER CONNECTING ROD, PISTON, RINGS AND LINER (SERIAL NO. 710724- ) [01B20]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
293 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R74194
|
[6] |
Screw
|
|
| 1. |
R80033
|
[6] |
Cap Screw
|
|
| 2. |
R55647
|
[3] |
Bushing
|
|
| 3. |
RE21076
|
[3] |
Connecting Rod
|
|
| 4. |
M41029
|
[6] |
Snap Ring
|
|
| 5. |
R125754
|
[3] |
Piston Pin
|
|
| 6. |
AR55759
|
[3] |
Piston Ring Kit
|
|
| 7. |
AR77762
|
[3] |
Piston
|
|
| 8. |
T32343
|
[3] |
Cylinder Liner
|
|
| 9. |
AR71618
|
[3] |
Kit
|
|
| 10. |
AR78041
|
[3] |
Piston-Liner Kit
|
|
| 11. |
AT21138
|
[3] |
Bearing
|
|
| 11. |
........
|
[3] |
Bearing
|
|
| 11. |
AT21124
|
[3] |
Bearing
|
|
| 11. |
AT21126
|
[3] |
Bearing
|
|
| 11. |
AT21128
|
[3] |
Bearing
|
|
