约翰迪尔零件查询300B - BACKHOE, LOADER RADIATOR (WITH OIL COOLER) [01C19]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 951 次

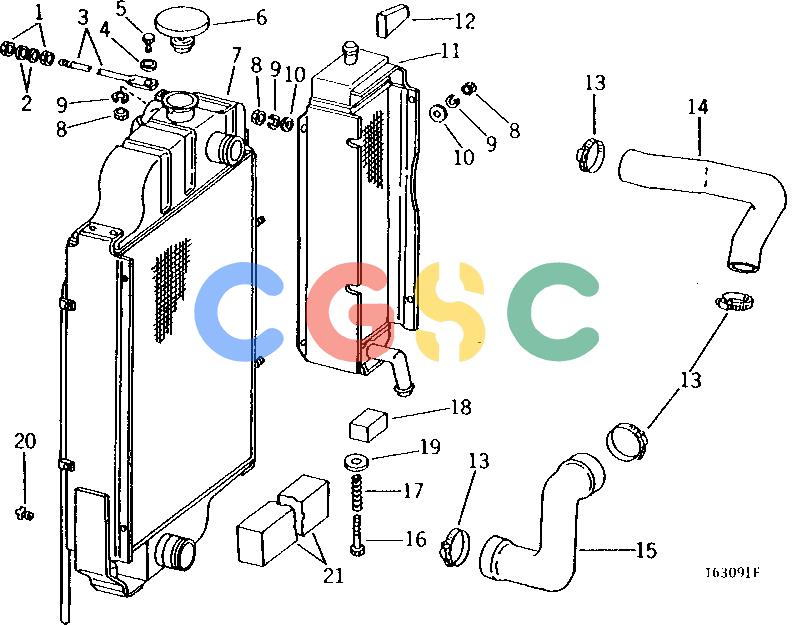

Pos.	Part No	Qty	Parts name	Comments
1.	T11234	[2]	Lock Nut
2.	24H1305	[2]	Washer	13/32" X 13/16" X 0.065"
3.	R61460	[1]	Rod	(SUB FOR T22495)
4.	24H1122	[1]	Washer	3/8" X 7/8" X 0.083"
5.	19H2664	[1]	Cap Screw	5/16" X 3/4"
6.	AT27585	[1]	Cap
7.	AR65715	[1]	Radiator	(SUB FOR AT28810)
8.	14H785	[5]	Nut	5/16"
9.	12H303	[5]	Lock Washer	5/16"
10.	24H1685	[4]	Washer	11/32" X 47/64" X 0.083"
11.	AT20848	[1]	Oil Cooler	(SUB AT169229)
11.	AT169229	[1]	Oil Cooler	(SUB FOR AR69398 AND AT77459 OR AT165535)
12.	T22900	[1]	Deflector
13.	AR21999	[4]	Hose Clamp	(SUB FOR AR21840)
14.	T23533	[1]	Hose	UPPER (DIESEL)
14.	R38481	[1]	Hose	UPPER (DIESEL) (SUB FOR R38312)
14.	T22496	[1]	Hose	UPPER (GASOLINE)
15.	T22500	[1]	Hose	LOWER (DIESEL)
15.	T22497	[1]	Hose	LOWER (GASOLINE)
16.	19H2458	[2]	Cap Screw	3/8" X 3"
17.	R62372	[2]	Spring	(SUB FOR R34352)
18.	T22375	[1]	Pad
19.	T22381	[2]	Washer	RUBBER
20.	AT13740	[1]	Drain Valve
21.	R35339	[1]	Isolator
...	T11847	[1]	Sealant	(NO LONGER AVAILABLE)
