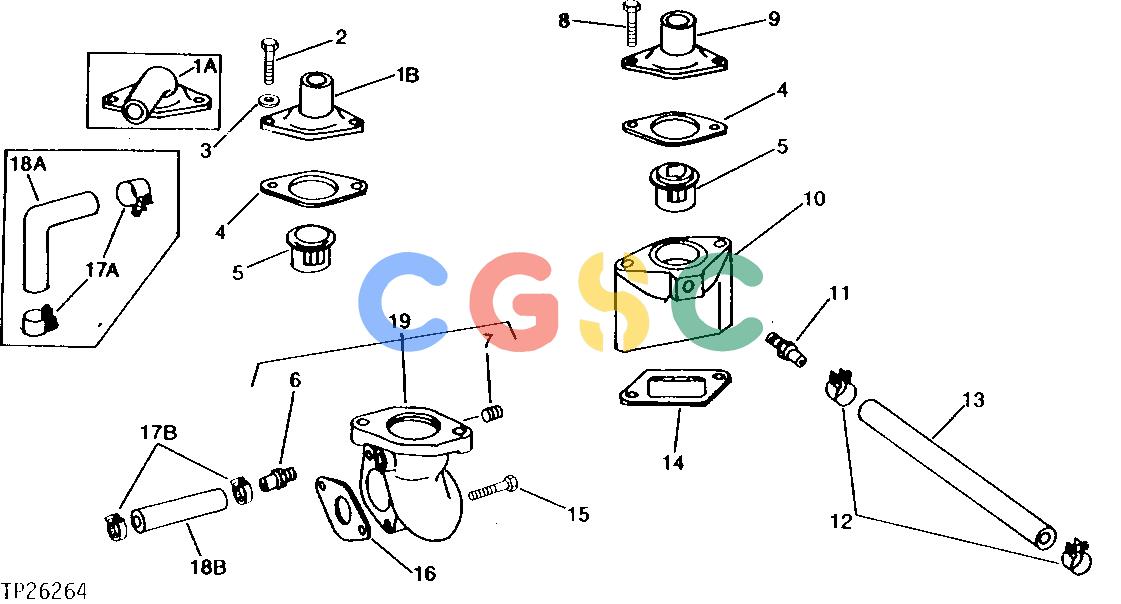

约翰迪尔零件查询300B - BACKHOE, LOADER THERMOSTAT HOUSING ASSEMBLY [01C22]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
892 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1A. |
T23620
|
[1] |
Cover
|
|
| 1B. |
T20317
|
[1] |
Cover
|
|
| 2. |
19H3385
|
[2] |
Cap Screw
|
|
| 3. |
12H304
|
[2] |
Lock Washer
|
|
| 4. |
T20215
|
[1] |
Gasket
|
|
| 5. |
RE33705
|
[1] |
Thermostat
|
|
| 6. |
T19651
|
[1] |
Hose Fitting
|
|
| 7. |
15H561
|
[1] |
Pipe Plug
|
|
| 8. |
19H1925
|
[2] |
Cap Screw
|
|
| 9. |
T20317
|
[1] |
Cover
|
|
| 10. |
T20210
|
[1] |
Housing
|
|
| 11. |
T19651
|
[1] |
Hose Fitting
|
|
| 12. |
AR21837
|
[2] |
Clamp
|
|
| 13. |
T27549
|
[1] |
Hose
|
|
| 14. |
T20212
|
[1] |
Gasket
|
|
| 15. |
19H1726
|
[2] |
Cap Screw
|
|
| 16. |
T20219
|
[1] |
Gasket
|
|
| 17A. |
AR21837
|
[2] |
Clamp
|
|
| 17B. |
AR21837
|
[2] |
Clamp
|
|
| 18A. |
T20277
|
[1] |
Hose
|
|
| 18B. |
T12815
|
[1] |
Hose
|
|
| 19. |
AR73097
|
[1] |
Housing
|
|
