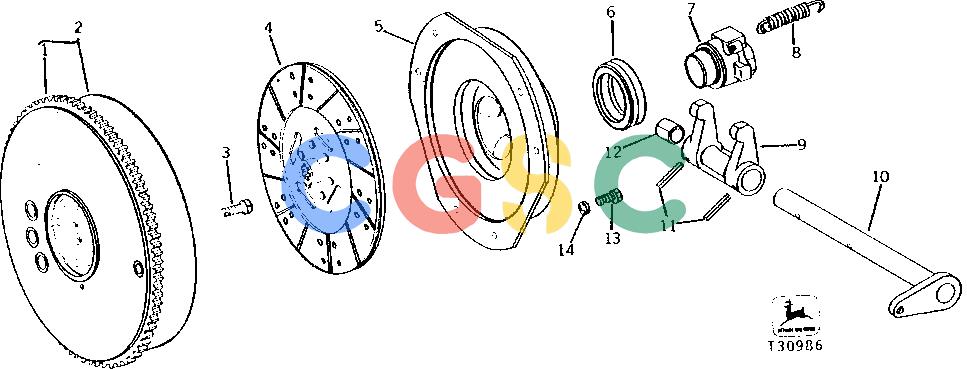

约翰迪尔零件查询300B - BACKHOE, LOADER ENGINE CLUTCH AND FLYWHEEL (NO PTO) (WITHOUT REVERSER) [01E19]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
610 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T20088
|
[1] |
Gear
|
|
| 2. |
AT21045
|
[1] |
Flywheel
|
|
| 3. |
19H2993
|
[4] |
Cap Screw
|
|
| 4. |
AR63695
|
[1] |
Clutch Disk
|
|
| 5. |
AT35213
|
[1] |
Clutch Plate
|
|
| 6. |
AR43065
|
[1] |
Thrust Bearing
|
|
| 7. |
R51469
|
[1] |
Planet Pinion Carrier
|
|
| 8. |
T21450
|
[1] |
Extension Spring
|
|
| 9. |
T21999
|
[1] |
Fork
|
|
| 10. |
AT19837
|
[1] |
Shaft
|
|
| 11. |
34H353
|
[2] |
Spring Pin
|
|
| 12. |
T21446
|
[1] |
Bushing
|
|
| 13. |
L372T
|
[6] |
Cap Screw
|
|
| 14. |
12H303
|
[6] |
Lock Washer
|
|
