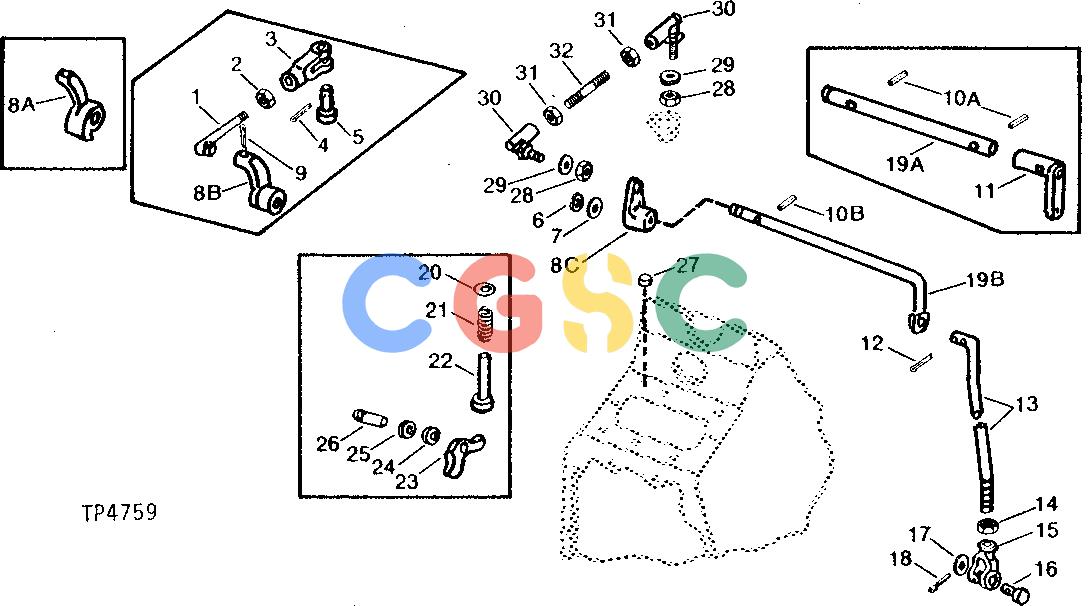

Pos.	Part No	Qty	Parts name	Comments
1.	T39855	[1]	Rod
2.	14H650	[1]	Nut	5/16"
3.	L299T	[1]	Yoke
4.	11M7079	[1]	Cotter Pin	2.500 X 12 MM
5.	P46404	[1]	Pin Fastener
6.	A4883R	[1]	Snap Ring
7.	24H1658	[1]	Washer	21/32" X 1" X 0.060"
8A.	T22754	[1]	Lever
8B.	T66474	[1]	Lever
8C.	T71767	[1]	Lever
9.	11M7082	[1]	Cotter Pin	2.500 X 25 MM
10A.	25H72	[2]	Groove Pin	3/16" X 1"
10B.	25H72	[2]	Groove Pin	3/16" X 1"
11.	T22755	[1]	Arm	CONTROL LEVER ROD, UPPER, (SUB R61136)
12.	11M7081	[2]	Cotter Pin	2.500 X 20 MM
13.	T22757	[1]	Rod
14.	14H732	[1]	Nut	3/8"
15.	C284R	[1]	Yoke
16.	C1067R	[1]	Pin Fastener	HEADED (USE IF AVAILABLE)
16.	R65563	[1]	Pin Fastener	(SUB FOR C1067R)
17.	24H1304	[1]	Washer	13/32" X 23/32" X 0.120"
18.	11M7059	[1]	Cotter Pin	3.200 X 20 MM
19A.	T22753	[1]	Shaft	(SUB R61136)
19B.	R61136	[1]	Shaft
20.	F3353R	[1]	O-Ring
21.	R26169	[1]	Spring
22.	T23206	[1]	Pin	HEADED
23.	T23207	[1]	Arm	HIGH SPEED LOCKOUT
24.	24H1305	[1]	Washer	13/32" X 13/16" X 0.065"
25.	R72655	[1]	Snap Ring	(SUB FOR T12808)
26.	R39166	[1]	Pin
27.	M1102T	[1]	Plug
28.	14H650	[2]	Nut	5/16"
29.	12H303	[2]	Lock Washer	5/16"
30.	AR41590	[2]	Ball Joint
31.	14H882	[2]	Nut	5/16"
32.	T80015	[1]	Stud	(SUB FOR T71768)
