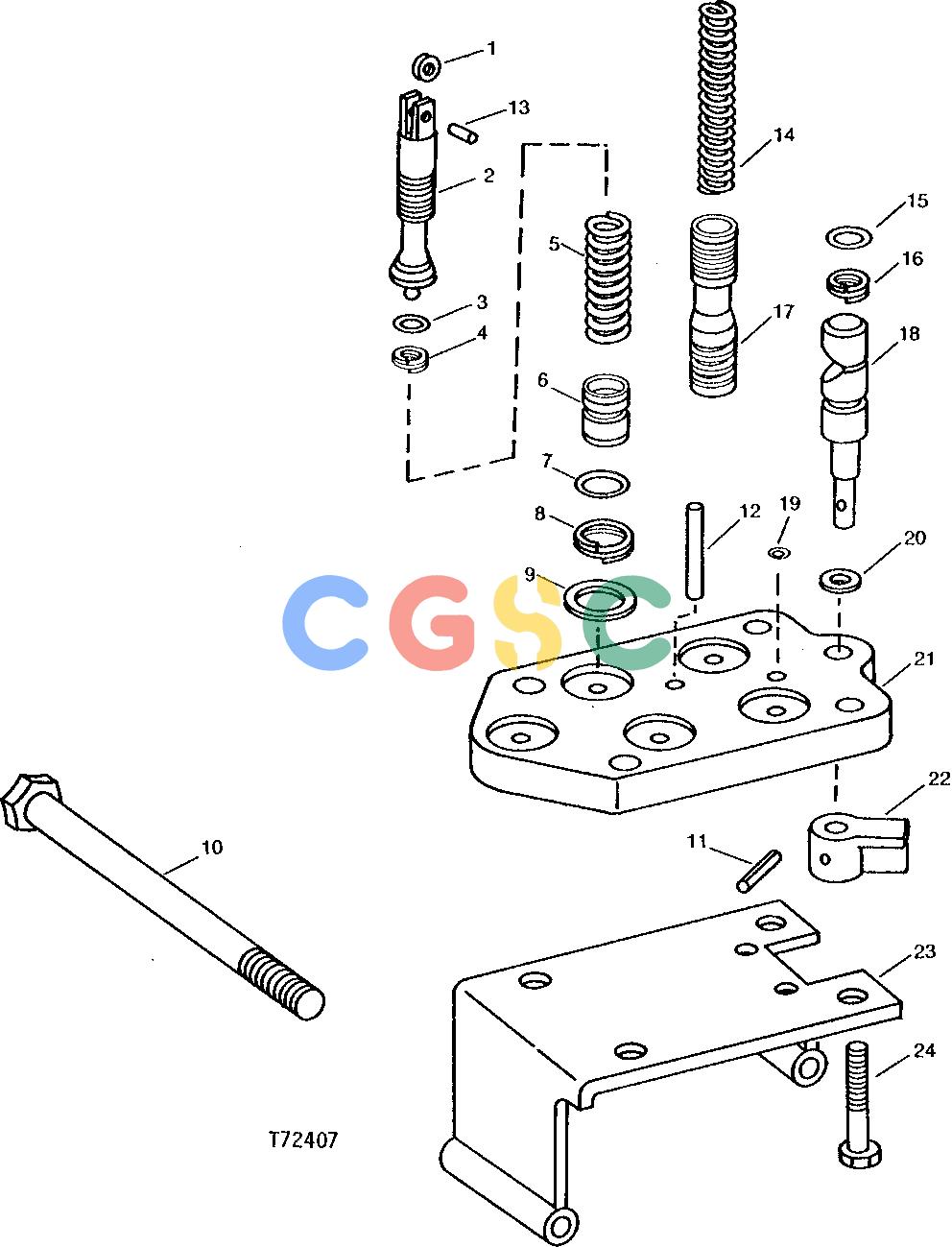

约翰迪尔零件查询300B - BACKHOE, LOADER SELECTIVE CONTROL VALVE POPPET, METERING AND FLOW CONTROL VALVES (SERIAL NO. -277209) [01H14]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 691 次

Pos.	Part No	Qty	Parts name	Comments
1.	R51409	[4]	Spacer
2.	AR86535	[2]	Valve	(SUB FOR AR56120, AR70150 AND AR78396)
3.	A3917R	[AR]	O-Ring	(4 USED PRESSURE VALVE) (2 USED RETURN VALVE) (SUB FOR R65286)
4.	R26484	[AR]	Back-Up Ring	(4 USED PRESSURE VALVE) (2 USED RETURN VALVE)
5.	R65501	[2]	Spring	(SUB FOR R41055, THIS APPLICATION)
5.	R65502	[2]	Spring	(SUB FOR R41055)
6.	R41156	[4]	Guide
6.	R66416	[4]	Bushing
7.	R27166	[4]	O-Ring
8.	R41057	[4]	Back-Up Ring
9.	R26149	[6]	Packing
10.	19H2224	[2]	Cap Screw	1/2" X 4-3/4"
11.	34H231	[1]	Spring Pin	3/32" X 3/4"
12.	34H284	[1]	Spring Pin	3/16" X 1-1/4"
13.	34H242	[4]	Spring Pin	1/8" X 7/16"
14.	R41549	[1]	Spring
15.	P46051	[1]	O-Ring
16.	R40937	[1]	Back-Up Ring
17.	R52549	[1]	Shut-Off Valve
18.	R65289	[1]	Valve	(SUB FOR R52547)
19.	R34812	[1]	O-Ring
20.	R41339	[1]	Shim
21.	AR40688	[1]	Cover
22.	R62652	[1]	Arm	(SUB FOR R41338)
23.	AR39162	[1]	Bracket
24.	19H2633	[4]	Cap Screw	3/8" X 1-1/2"
24.	19H3239	[4]	Cap Screw	3/8" X 1-1/4"
