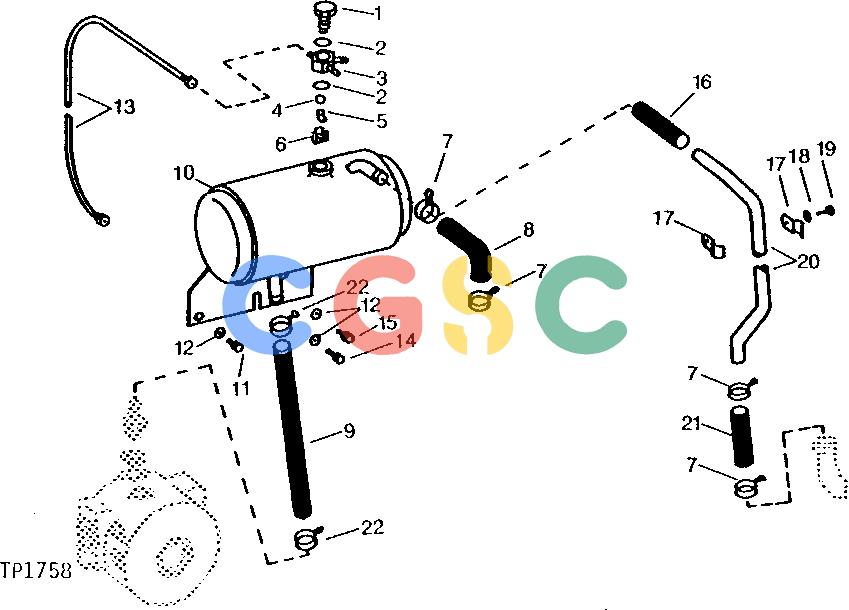

Pos.	Part No	Qty	Parts name	Comments
1.	T22970	[1]	Plug
2.	U11343	[2]	O-Ring
3.	AT20983	[1]	Fitting
4.	D2361R	[1]	Ball	STEEL, 1/2" CHECK VALVE
5.	R39078	[1]	Spring
6.	R39076	[1]	Guide
7.	AR21839	[4]	Clamp
8.	L35843	[1]	Hose	(SUB FOR T40167 AND T22958, THIS APPLICATION)
9.	........	[1]	Hose	365 MM (3/4" X 14-3/8") (MAKE FROM T78497) (SUB FOR T35689 AND T33416)
10.	AR63288	[1]	Reservoir
11.	19H2021	[1]	Cap Screw	3/8" X 5/8"
12.	12H304	[3]	Lock Washer	3/8"
13.	AT20960	[1]	Oil Line	DRAIN, HYDRAULIC PUMP
14.	19H1648	[1]	Cap Screw	3/8" X 3/4"
15.	19H1936	[1]	Cap Screw	3/8" X 3/4"
16.	........	[1]	Hose	108 MM (3/4" X 4-1/4") RESERVOIR TO CLUTCH HOUSING OIL LINE (WITHOUT COOLER) (MAKE FROM T78497) (SUB FOR T35693 AND T21371)
17.	R27531	[4]	Clamp	(WITHOUT COOLER)
18.	24M7055	[2]	Washer	8.400 X 16 X 1.600 MM, (WITHOUT COOLER)
19.	37H84	[2]	Screw	1/4" X 3/4" (WITHOUT COOLER)
20.	T30104	[1]	Tube	(WITHOUT COOLER)
21.	........	[1]	Hose	114 MM (3/4" X 4-1/2") (MAKE FROM T61939) (SUB FOR T35692 AND T21371)
22.	AR21839	[2]	Clamp	(WITHOUT COOLER) (SUB FOR H2742B, THIS APPLICATION)
