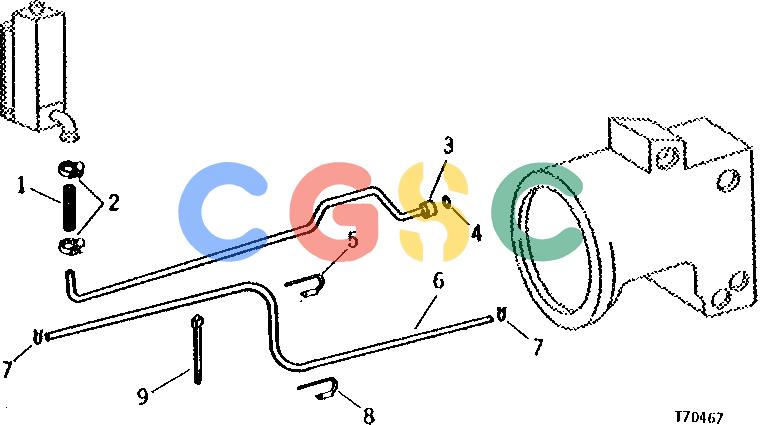

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | L35845 | [1] | Hose | OIL COOLER TO CLUTCH HOUSING OIL LINE (WITH REVERSER) (SUB FOR T24760, THIS APPLICATION) |
| 2. | AR21839 | [2] | Clamp | |
| 3. | AT22145 | [1] | Oil Line | TO CLUTCH HOUSING |
| 3. | AT22268 | [1] | Oil Line | (WITH REVERSER) |
| 4. | R1662R | [1] | Washer | |
| 5. | R44302 | [1] | Tie Band | BLEED TUBE TO BATTERY CABLE |
| 6. | T23073 | [1] | Tube | BLEED, RESERVOIR TO CLUTCH HOUSING |
| 7. | T19324 | [2] | Clamp | |
| 8. | R44302 | [1] | Tie Band | BLEED TUBE TO COWL |
| 9. | H77698 | [1] | Tie Band | (SUB FOR T44946) |
