约翰迪尔零件查询300B - BACKHOE, LOADER HYDRAULIC PUMP OIL INLET REAR LINES [01I14]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 746 次

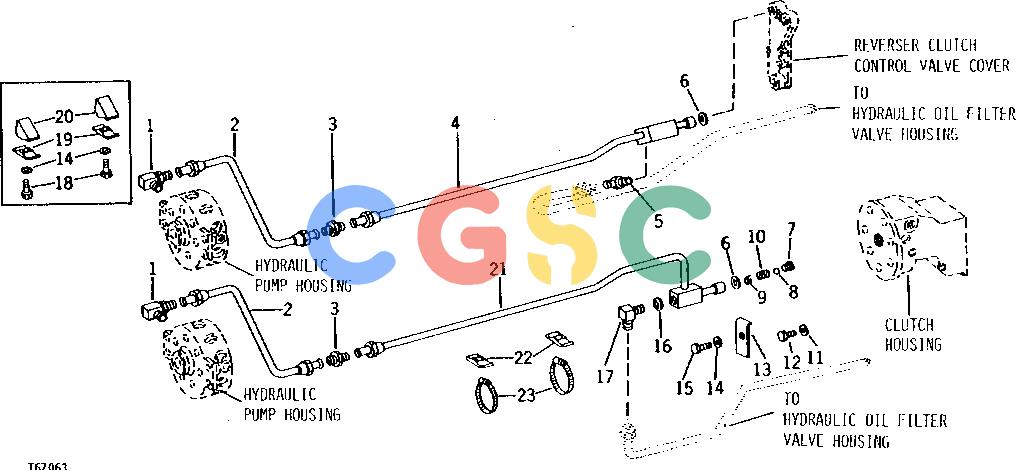

Pos.	Part No	Qty	Parts name	Comments
1.	AR39071	[1]	Elbow Fitting	90° ADJUSTABLE
2.	AT23555	[1]	Oil Line	FRONT INLET
3.	R27266	[1]	Fitting
4.	AT23560	[1]	Oil Line	INLET REAR (WITH REVERSER)
5.	R27267	[1]	Fitting	FILTER RELIEF VALVE HOUSING LINE-TO-ADAPER
5.	U12547	[1]	O-Ring	(SUB FOR F3171R) (NOT ILLUSTRATED)
6.	R1662R	[1]	Washer
7.	T23203	[1]	Valve Seat	INLET LINE CHECK VALVE (WITHOUT REVERSER)
8.	D2361R	[1]	Ball	STEEL, 1/2" (WITHOUT REVERSER)
9.	R39076	[1]	Guide	(WITHOUT REVERSER)
10.	R39078	[1]	Spring	(WITHOUT REVERSER)
11.	R43696	[1]	Washer	(SUB FOR A4231R) (WITH REVERSER)
12.	19H2676	[1]	Cap Screw	3/8" X 1"
13.	T23059	[1]	Retainer	OIL LINES-TO-CLUTCH HOUSING (WITHOUT REVERSER)
14.	12H304	[3]	Lock Washer	3/8"
15.	19H3483	[1]	Cap Screw	3/8" X 1-1/8"
16.	U12547	[1]	O-Ring	(SUB FOR F3171R) (WITHOUT REVERSER)
17.	AT32331	[1]	Elbow Fitting	90° ADJUSTABLE (WITHOUT REVERSER) (SUB FOR AR26723)
18.	19H3239	[2]	Cap Screw	3/8" X 1-1/4"
19.	T23040	[2]	Clamp	OIL LINES TO CYLINDER BLOCK, (SUB AR21999) (ALSO ORDER R49076)
20.	T23053	[2]	Spacer	(SUB AR21999) (ALSO ORDER R49076)
21.	AT23556	[1]	Oil Line	INLET REAR (WITHOUT REVERSER)
22.	R49076	[2]	Spacer
23.	AR21999	[2]	Hose Clamp	(SUB FOR AR21840)
24.	U12547	[1]	O-Ring	(SUB FOR F3171R)
