约翰迪尔零件查询300B - BACKHOE, LOADER HYDRAULIC PUMP OIL PRESSURE FRONT LINES [01I13]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 607 次

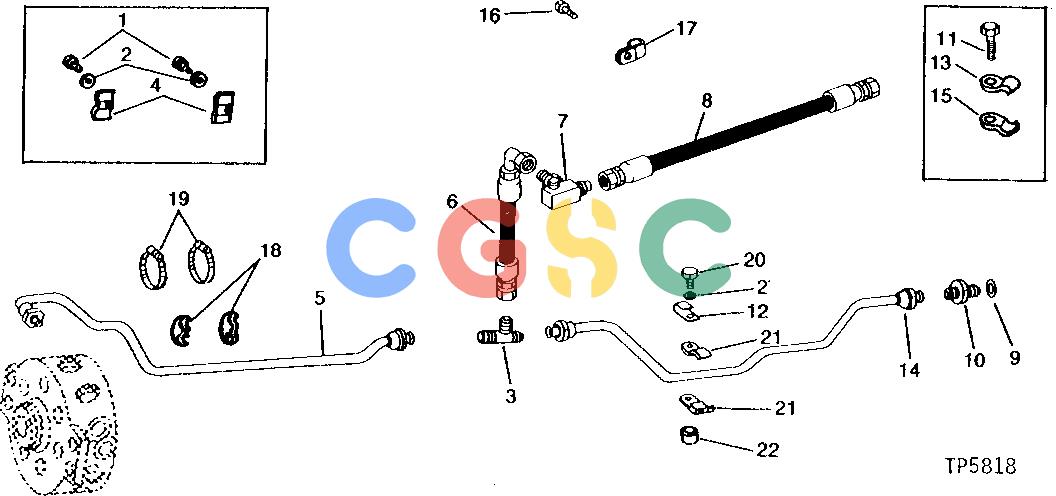

Pos.	Part No	Qty	Parts name	Comments
1.	19H3239	[2]	Cap Screw	3/8" X 1-1/4"
2.	12H304	[3]	Lock Washer	3/8"
3.	T25723	[1]	Tee Fitting
4.	T23040	[2]	Clamp	(SUB AR21999) (ALSO ORDER R49076)
5.	AT37736	[1]	Oil Line	HYDRAULIC PUMP FRONT PRESSURE
6.	AT38634	[1]	Hydraulic Hose - Fabricate	3/4" X 305 MM (12") X 3/4", PUMP PRESSURE LINE TO ACCUMULATOR
7.	AR32665	[1]	Tee Fitting
8.	AT38635	[1]	Hydraulic Hose - Fabricate	9/16" X 635 MM (25") X 9/16", TEE TO ELBOW IN POWER STEERING VALVE HOUSING
8.	AT54133	[1]	Hydraulic Hose - Fabricate	9/16" X 635 MM (25") X 9/16", TEE TO ELBOW IN POWER STEERING VALVE HOUSING
9.	R26906	[1]	O-Ring
10.	R27270	[1]	Fitting
11.	19H2284	[2]	Cap Screw	3/8" X 7/8"
12.	B1986R	[1]	Clip	(WITH REVERSER)
13.	T25724	[1]	Clamp	(SUB (2) R35626, 28H860, 12H304 AND 19H1732, THIS APPLICATION)
14.	AT23557	[1]	Oil Line	HYDRAULIC PUMP REAR PRESSURE (WITHOUT REVERSER)
14.	AT23561	[1]	Oil Line	HYDRAULIC PUMP REAR PRESSURE (WITH REVERSER)
15.	R28539	[1]	Clamp	(SUB (2) R35726, 28H860, 12H304 AND 19H1732, THIS APPLICATION)
16.	19H2676	[1]	Cap Screw	3/8" X 1"
17.	T25133	[1]	Clamp
18.	R49076	[2]	Spacer
19.	AR21999	[2]	Hose Clamp	(SUB FOR AR21840)
20.	19H1732	[1]	Cap Screw	3/8" X 1-1/4"
21.	R35726	[2]	Clamp
22.	28H860	[1]	Washer	0.423" X 0.675" X 3/8"
