约翰迪尔零件查询300B - BACKHOE, LOADER 3-POINT HITCH CENTER LINK (CATEGORY I AND II) [01J09]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 766 次

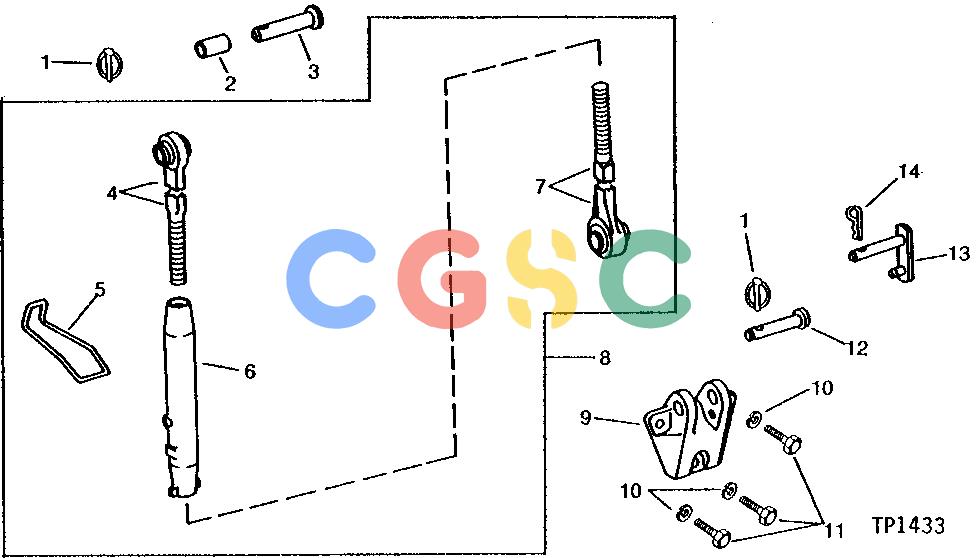

Pos.	Part No	Qty	Parts name	Comments
1.	AR62151	[2]	Quick Lock Pin
2.	T12553	[1]	Bushing	(TO CONVERT CATEGORY II TO CATEGORY I)
2.	L11292	[1]	Bushing	(NON-TELESCOPING DRAFT TUBES) (TO CONVERT CATEGORY II TO CATEGORY I)
3.	R53296	[1]	Pin Fastener	(CATEGORY II)
3.	R58262	[1]	Pin Fastener	(CATEGORY I) (SUB FOR R44917)
4.	AT19796	[1]	Link End	CENTER LINK WITH BALL REAR (CATEGORY II) (MARKED T21508) (R.H. THREAD)
4.	AT19873	[1]	Link End	CENTER LINK, WITH BALL, REAR (CATEGORY I) (MARKED T21508) (R.H. THREAD)
4.	AT30979	[1]	End	CENTER LINK, WITH BALL, REAR (NON-TELESCOPING DRAFT TUBES) (R.H. THREAD)
5.	T22008	[1]	Handle
5.	T27136	[1]	Handle	(NON-TELESCOPING DRAFT TUBES) (CATEGORY II)
6.	T22028	[1]	Link Body	CENTER
6.	R70183	[1]	Link Body	CENTER
6.	AT30978	[1]	Link Body	(NON-TELESCOPING DRAFT TUBES) (CATEGORY II)
7.	AT19795	[1]	Link End	CENTER LINK WITH BALL FRONT (MARKED T21506) (L.H. THREAD)
7.	........	[1]	End	( AT30977 NO LONGER AVAILABLE) CENTER LINK WITH BALL, FRONT (NON-TELESCOPING DRAFT TUBES) (CATEGORY II) (L.H. THREAD)
8.	AT20863	[1]	Link	CENTER ASSEMBLY
8.	AR92432	[1]	Link Body
9.	T21685	[1]	Bracket
10.	12H294	[3]	Lock Washer	5/8"
11.	19H1356	[3]	Cap Screw	5/8" X 1-3/4"
12.	........	[1]	Pin	(SUB AL40957 AND A3581R)
13.	AL40957	[1]	Pin Fastener	(SUB FOR AT21912)
14.	A3581R	[1]	Spring Locking Pin
