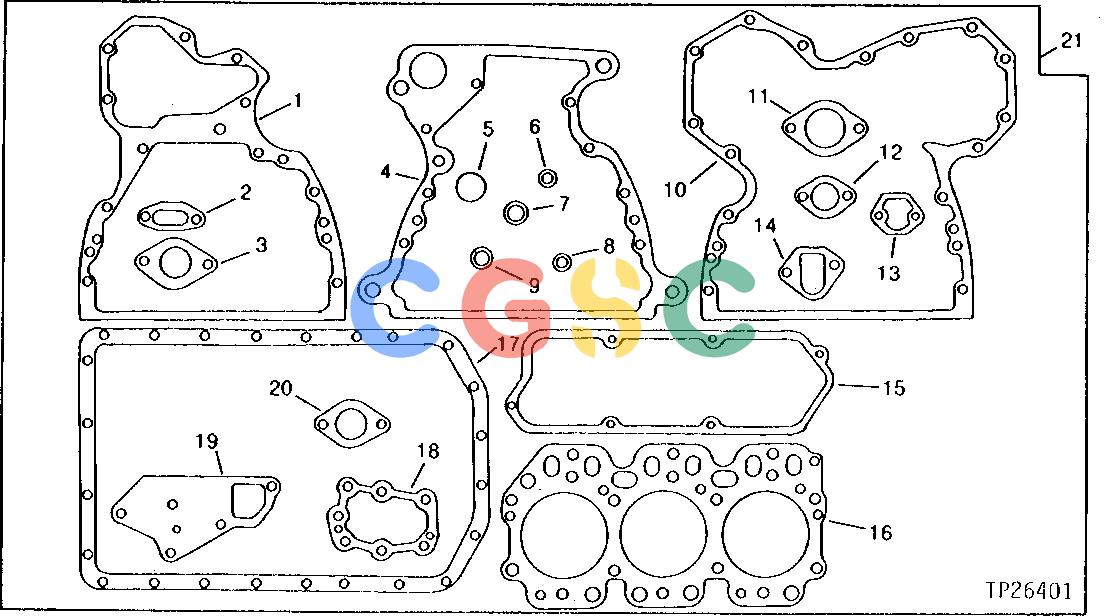

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | R131794 | [1] | Gasket | CYLINDER BLOCK PLATE, (SUB FOR R90648) |
| 2. | R97352 | [1] | Gasket | OIL FILLER INLET, (SUB FOR T20336) |
| 3. | T20215 | [1] | Gasket | THERMOSTAT COVER |
| 4. | R97351 | [1] | Gasket | FLYWHEEL HOUSING, (SUB FOR R49516, THIS APPLICATION) (SUB FOR R70483) |
| 5. | T20328 | [1] | Gasket | OIL FILLER, CAP |
| 6. | T20304 | [1] | Washer | TACHOMETER DRIVE SHAFT |
| 7. | T13213 | [1] | Washer | ALUMINUM, OIL DRAIN PLUG |
| 8. | R74354 | [1] | O-Ring | OIL PUMP OUTLET, TUBE, (SUB FOR R27166, THIS APPLICATION) |
| 9. | R56463 | [1] | O-Ring | VENT TUBE OUTLET, (SUB FOR R495R, THIS APPLICATION) |
| 10. | R121314 | [1] | Gasket | TIMING GEAR COVER, (SUB FOR T20155 OR R97454 OR R119269) |
| 11. | R81275 | [1] | Gasket | AIR INLET, (SUB FOR T20159, THIS APPLICATION) |
| 12. | T20219 | [1] | Gasket | THERMOSTAT HOUSING |
| 13. | R520618 | [1] | Gasket | FUEL PUMP, (SUB FOR R27285, R97350) |
| 14. | T20364 | [1] | Gasket | INJECTION PUMP GEAR COVER, (SUB R78366) |
| 14. | R125066 | [1] | Gasket | (SUB FOR R69260 AND R78366 OR R97773) |
| 15. | T20111 | [1] | Gasket | ROCKER ARM COVER, (SUB. AR102261 AND (6) AR103811 CAP SCREWS WITH WASHERS) |
| 15. | AR102261 | [1] | Gasket | ROCKER ARM COVER |
| 16. | R98460 | [1] | Engine Cylinder Head Gasket | CYLINDER HEAD, (SUB FOR R52789) |
| 17. | T24534 | [1] | Gasket | OIL PAN (CORK) |
| 17. | R97341 | [1] | Gasket | OIL PAN (ASBESTOS) (SUB FOR R49514) |
| 18. | T20273 | [1] | Gasket | TIMING GEAR COVER OPENING COVER |
| 19. | T20243 | [1] | Gasket | WATER PUMP COVER |
| 20. | R90658 | [3] | Gasket | EXHAUST MANIFOLD (SUB FOR T20006) (ALL T20006 GASKETS MUST BE REPLACED AT THE SAME TIME. DO NOT MIX T20006 AND R90658) |
| 21. | AT23201 | [1] | Seal Kit | ENGINE OVERHAUL, (SUB RE38570, (3) AR71617, (6) AR103811, (3) R48000 AND (3) RE32011) |
| 21. | AR97196 | [1] | Gasket Kit | (SUB RE38570, (3) AR71617, (6) AR103811, (3) R48000 AND (3) RE32011) |
| 21. | RE501574 | [1] | Gasket Kit | (SUB FOR RE38570) (ALSO ORDER (3) AR71617, (3) R48000, (3) RE32011 AND (6) AR103811) |
