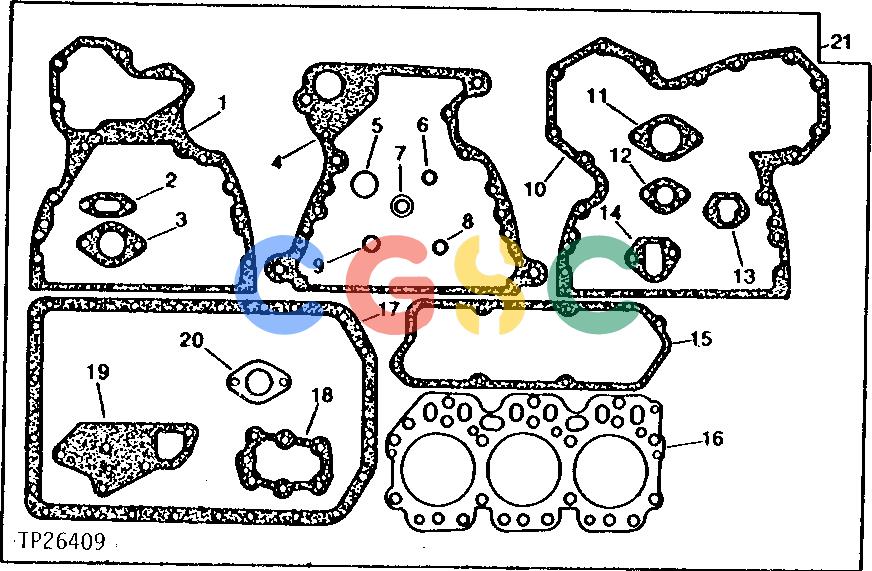

Pos.	Part No	Qty	Parts name	Comments
1.	R90648	[1]	Gasket	(SUB FOR R73140, THIS APPLICATION) CYLINDER BLOCK PLATE
2.	R97352	[1]	Gasket	OIL FILLER INLET, (SUB FOR T20336)
3.	T20215	[1]	Gasket	THERMOSTAT COVER
4.	R97351	[1]	Gasket	FLYWHEEL HOUSING, (SUB FOR R70483)
5.	T20328	[1]	Gasket	OIL FILLER CAP
6.	T20304	[1]	Washer	TACHOMETER DRIVE SHAFT
7.	T13213	[1]	Washer	OIL DRAIN PLUG
8.	R74354	[1]	O-Ring	OIL PUMP OUTLET TUBE
9.	R56463	[1]	O-Ring	VENT TUBE OUTLET
10.	R121314	[1]	Gasket	TIMING GEAR COVER, (SUB FOR T20155 OR R97454 OR R119269)
11.	T20159	[1]	Gasket	AIR INLET
12.	T20219	[1]	Gasket	THERMOSTAT HOUSING
13.	R520618	[1]	Gasket	FUEL PUMP, (SUB FOR R27285, R97350)
14.	R125066	[1]	Gasket	INJECTION PUMP GEAR COVER, (SUB FOR R78366 AND R97773)
15.	AR102261	[1]	Gasket	ROCKER ARM COVER
16.	R80241	[1]	Gasket	(USE IF AVAILABLE) (SUB FOR R59447) CYLINDER HEAD
16.	R97356	[1]	Engine Cylinder Head Gasket	(SUB FOR R80241)
17.	T24534	[1]	Gasket	OIL PAN
18.	T20273	[1]	Gasket	TIMING GEAR COVER OPENING
19.	T20243	[1]	Gasket	WATER PUMP COVER
20.	R90658	[3]	Gasket	EXHAUST MANIFOLD, (SUB FOR T20006) (ALL T20006 GASKETS MUST BE REPLACED AT THE SAME TIME. DO NOT MIX T20006 AND R90658)
21.	RE501578	[1]	Gasket Kit	(SUB AR102298, RE16912, RE37492 AND RE38853) (ALSO ORDER (3) AR71617, (3) R48000 AND (3) RE32011)
21.	RE37492	[1]	Gasket Kit	(SUB FOR RE16912) (ALSO ORDER (3) AR71617, (3) R48000 AND (3) RE32011)
