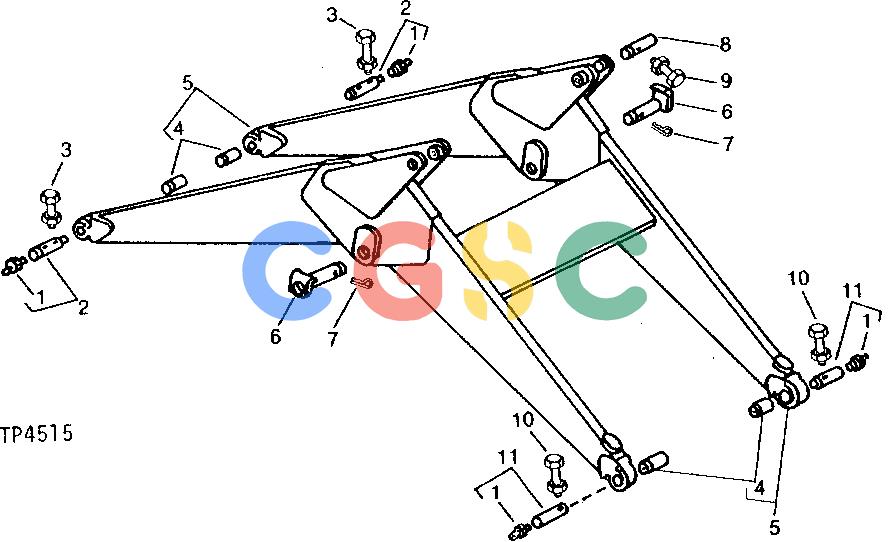

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | JD7759 | [4] | Lubrication Fitting | STRAIGHT, 1/8" |
| 2. | AU42183 | [2] | Pin Fastener | |
| 3. | 19H2855 | [2] | Cap Screw | 3/8" X 3-1/4" |
| 3. | T11234 | [2] | Lock Nut | 3/8" |
| 4. | U12817 | [4] | Bushing | |
| 5. | BU40443 | [1] | Loader Boom | (INCLUDES BUSHINGS) |
| 6. | AU11658 | [2] | Pin | BOOM CYLINDER HEAD END |
| 7. | 11H223 | [2] | Cotter Pin | 3/8" X 2" |
| 8. | U43298 | [2] | Pin | BUCKET CYLINDER HEAD END |
| 9. | 19H2458 | [2] | Cap Screw | 3/8" X 3" |
| 9. | T11234 | [2] | Lock Nut | 3/8" |
| 10. | 19H3520 | [2] | Cap Screw | 1/2" X 3-1/4" |
| 10. | BP12214 | [2] | Lock Nut | 1/2", (SUB FOR U12622) |
| 11. | AU11942 | [2] | Pin Fastener |
