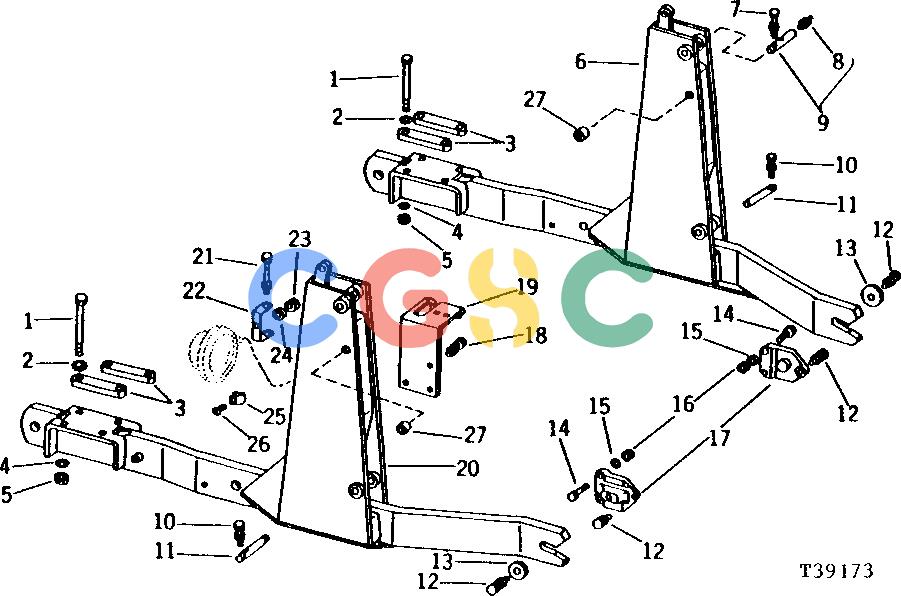

约翰迪尔零件查询300B - BACKHOE, LOADER LOADER SIDE FRAMES [02D25]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 671 次

Pos.	Part No	Qty	Parts name	Comments
1.	08H4310	[8]	Cap Screw	7/8" X 8-1/2"
2.	24H1429	[8]	Washer	29/32" X 1-3/4" X 0.194"
3.	U40699	[4]	Strap	REAR MOUNTING
4.	12H245	[8]	Lock Washer	7/8"
5.	14H836	[8]	Nut	7/8"
6.	AT38952	[1]	Frame	SIDE, L.H. (ALSO ORDER (2) T10610)
7.	19H3404	[2]	Cap Screw	3/8" X 4"
7.	T11234	[2]	Lock Nut	3/8"
8.	JD7759	[2]	Lubrication Fitting	STRAIGHT, 1/8"
9.	AU42183	[2]	Pin Fastener
10.	19H2855	[2]	Cap Screw	3/8" X 3-1/4"
10.	T11234	[2]	Lock Nut	3/8"
11.	U43294	[2]	Pin
12.	19H2994	[4]	Cap Screw	5/8" X 1-1/2"
12.	12H294	[4]	Lock Washer	5/8"
13.	U12948	[2]	Washer	FRONT MOUNT
14.	19H2726	[4]	Cap Screw	5/8" X 4"
15.	12H294	[4]	Lock Washer	5/8"
16.	14H1039	[4]	Nut	5/8"
17.	U40559	[2]	Support
18.	19H3385	[3]	Cap Screw	1/2" X 1-1/8"
18.	24H1625	[3]	Washer	17/32" X 1" X 0.120"
18.	24H1111	[3]	Washer	17/32" X 1-1/16" X 0.090"
19.	AU40734	[1]	Bracket
19.	AT53446	[1]	Bracket
20.	AT38951	[1]	Frame	SIDE, R.H. (ALSO ORDER (2) T10610)
21.	19H2228	[2]	Cap Screw	3/8" X 4"
21.	T11234	[2]	Lock Nut
22.	T35138	[2]	Clevis
23.	14H1040	[2]	Nut	1/2", (SUB FOR 14H809)
24.	12H301	[2]	Lock Washer	1/2"
25.	U41534	[6]	Clip
25.	U41534	[2]	Clip
26.	T10671	[6]	Cap Screw
26.	T10671	[2]	Cap Screw
27.	T10610	[4]	Grommet
