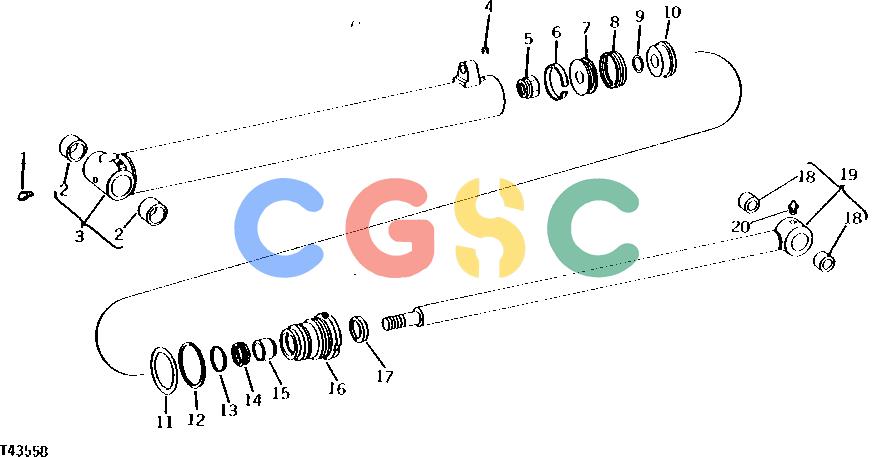

约翰迪尔零件查询300B - BACKHOE, LOADER BACKHOE CROWD CYLINDER (9250-A BACKHOE) [02H06]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
264 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
JD7788
|
[1] |
Lubrication Fitting
|
|
| 2. |
U10666
|
[2] |
Bushing
|
|
| 3. |
AT45785
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 4. |
22H1077
|
[1] |
Set Screw
|
|
| 5. |
L2235CU
|
[1] |
Lock Nut
|
|
| 6. |
U43261
|
[1] |
Wear Ring
|
|
| 7. |
U43260
|
[1] |
Piston
|
|
| 8. |
T38193
|
[1] |
Packing
|
|
| 9. |
R29463
|
[1] |
O-Ring
|
|
| 10. |
U17219
|
[1] |
Piston
|
|
| 11. |
U10776
|
[1] |
O-Ring
|
|
| 12. |
R78993
|
[1] |
Back-Up Ring
|
|
| 13. |
U14128
|
[1] |
Snap Ring
|
|
| 14. |
R76802
|
[1] |
Seal
|
|
| 15. |
U41823
|
[1] |
Wear Ring
|
|
| 16. |
R80922
|
[1] |
Hydr. Cylinder Rod Guide
|
|
| 17. |
U11019
|
[1] |
Seal
|
|
| 18. |
U40741
|
[1] |
Bushing
|
|
| 19. |
AU42132
|
[1] |
Hydraulic Cylinder Rod
|
|
| 20. |
JD7759
|
[1] |
Lubrication Fitting
|
|
| ... |
AT45784
|
[1] |
Hydraulic Cylinder
|
|
| ... |
RE18755
|
[1] |
Hydraulic Cylinder Kit
|
|
