约翰迪尔零件查询300D - BACKHOE, LOADER PARK BRAKE ACTUATOR AND CONTROLSEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 568 次

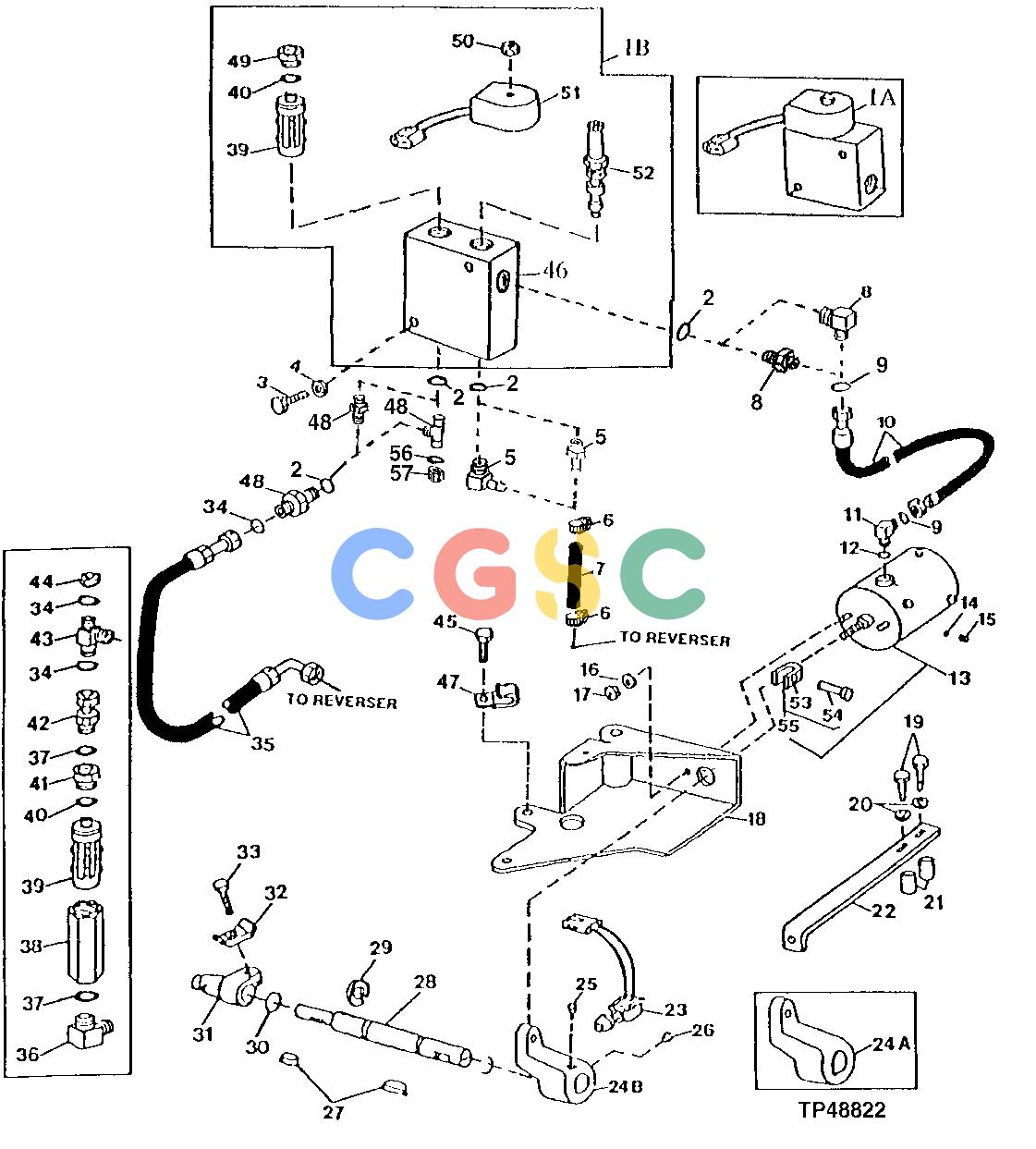

Pos.	Part No	Qty	Parts name	Comments
1A.	AT151673	[1]	Solenoid Valve	(SUB FOR AT148442)
1B.	AT158084	[1]	Solenoid
2.	R26375	[3]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
3.	19M7981	[2]	Cap Screw	M8 X 55
3.	19M8081	[2]	Cap Screw	M10 X 80
3.	19M7981	[2]	Cap Screw	M8 X 55
3.	19M8081	[2]	Cap Screw	M10 X 80
4.	24M7238	[2]	Washer	8.700 X 17 X 2 MM
4.	24M7239	[2]	Washer	10.700 X 21 X 2.500 MM
4.	24M7238	[2]	Washer	8.700 X 17 X 2 MM
4.	24M7239	[2]	Washer	10.700 X 21 X 2.500 MM
5.	AR90369	[1]	Elbow Fitting
5.	T38282	[1]	Hose Fitting
6.	TY22464	[2]	Clamp	(SUB FOR AR21836)
7.	........	[1]	Hose	(MAKE FROM TY22562) (CUT TO LENGTH)
8.	38H1405	[1]	Elbow Fitting
8.	38H1317	[1]	Fitting
8.	38H1405	[1]	Elbow Fitting
8.	38H1317	[1]	Fitting
9.	T77932	[2]	O-Ring
10.	AT146282	[1]	Hydraulic Hose - Fabricate	1" X 1016 MM (40") X 1"
10.	AT168964	[1]	Hydraulic Hose - Fabricate
10.	AT146282	[1]	Hydraulic Hose - Fabricate	1" X 1016 MM (40") X 1"
10.	AT168964	[1]	Hydraulic Hose - Fabricate
11.	38H1006	[1]	Elbow Fitting
12.	R26906	[1]	O-Ring
13.	AT146182	[1]	Actuator
13.	AT171247	[1]	Seal Kit	SEAL AND BUSHING (NOT ILLUSTRATED)
14.	R26287	[1]	O-Ring
15.	R31631	[1]	Drain Plug
16.	24M7241	[2]	Washer	17 X 34 X 4 MM
17.	14H808	[2]	Nut	5/8"
18.	AT160736	[1]	Support	(SUB FOR AT148205)
19.	19H2284	[2]	Cap Screw	3/8" X 7/8"
20.	24H1122	[2]	Washer	3/8" X 7/8" X 0.083"
21.	28H2497	[1]	Spacer	0.423" X 0.675" X 5/8"
22.	T135418	[1]	Strap
23.	........	[1]	Switch	( AH140605 USE IF AVAILABLE) (SUB FOR AH123025 (MOMENTARY))
23.	AT157547	[1]	Switch	(PARK BRAKE) (SUB FOR AH123025 AND AH140605 (MOMENTARY))
24A.	T137349	[1]	Arm
24B.	T142414	[1]	Arm	(SUB FOR T137349 ) (ALSO ORDER AN122499)
25.	AN122499	[1]	Bolt	9.525 X 12.700 MM (3/8" X 1/2")
26.	AN122499	[1]	Bolt	9.525 X 12.700 MM (3/8" X 1/2")
27.	26H77	[2]	Shaft Key	3/16" X 3/4"
28.	T132945	[1]	Shaft
29.	M2353T	[1]	Snap Ring
30.	T122075	[1]	O-Ring	29.820 X 2.616 MM (1.174" X 0.103")
31.	L32144	[1]	Lever
32.	R1888R	[1]	Strap
33.	19H3483	[1]	Cap Screw	3/8" X 1-1/8"
34.	T77857	[3]	O-Ring	12.421 X 1.778 MM (0.489" X 0.070")
35.	AT151287	[1]	Hydraulic Hose - Fabricate	9/16" X 519 MM (20-1/2") X 13/16" (SUB FOR AT145187)
35.	AT167920	[1]	Hydraulic Hose - Fabricate	(SUB FOR AT160994)
35.	AT169590	[1]	Hydraulic Hose - Fabricate
35.	AT167920	[1]	Hydraulic Hose - Fabricate
35.	AT169590	[1]	Hydraulic Hose - Fabricate
36.	38H1005	[1]	Elbow Fitting
37.	R26375	[2]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
38.	T135794	[1]	Housing
39.	T58474	[1]	Screen
40.	R29936	[1]	O-Ring	29.743 X 2.946 MM (1.171" X 0.116")
41.	T135795	[1]	Fitting Plug
42.	38H1068	[1]	Adapter Fitting
43.	38H1017	[1]	Tee Fitting
44.	T140268	[1]	Plug
45.	19H2038	[1]	Cap Screw	3/8" X 1/2"
46.	........	[1]	Junction Block
47.	T19935	[1]	Clamp
48.	38H1161	[1]	Adapter Fitting
48.	38H1024	[1]	Tee Fitting
48.	38H1161	[1]	Adapter Fitting
48.	38H1024	[1]	Tee Fitting
49.	R27175	[1]	Drain Plug
50.	M63707	[1]	Lock Nut
51.	AH128654	[1]	Electrical Coil
52.	AT151491	[1]	Pressure Relief Valve
53.	........	[1]	Yoke
54.	........	[1]	Pin
55.	AT161025	[1]	Yoke Kit
56.	T77857	[1]	O-Ring	12.421 X 1.778 MM (0.489" X 0.070")
56.	T77857	[1]	O-Ring	12.421 X 1.778 MM (0.489" X 0.070")
57.	38H1416	[1]	Fitting
57.	38H1416	[1]	Fitting
