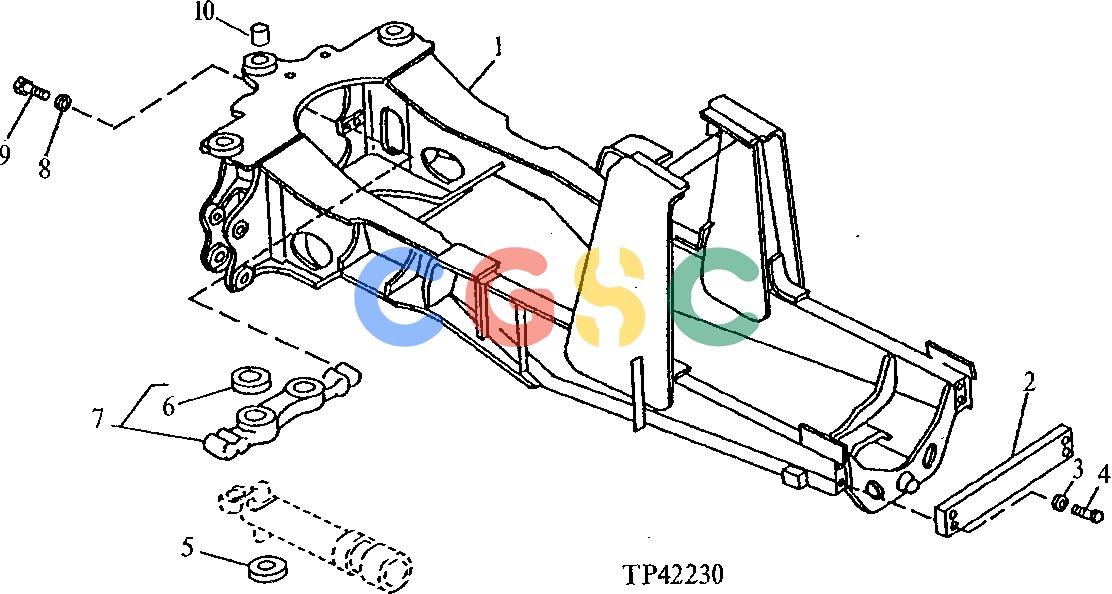

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | ........ | [1] | Frame | |
| 1. | ........ | [1] | Frame | |
| 2. | AT142117 | [1] | Bumper | (WITHOUT FRONT COUNTERWEIGHT) |
| 3. | T119912 | [4] | Washer | |
| 3. | N231749 | [4] | Washer | (SUB FOR T33089) |
| 4. | 19M7882 | [4] | Screw | M16 X 170 |
| 5. | T127791 | [2] | Bushing | (MAIN FRAME) |
| 6. | T127791 | [2] | Bushing | |
| 7. | AT145899 | [1] | Trunnion | |
| 8. | T83426 | [4] | Washer | (SUB FOR T33089, THIS APPLICATION) |
| 9. | 19M8224 | [4] | Cap Screw | M20 X 60 |
| 10. | T162581 | [2] | Bushing | (SUB FOR T127792) |
