约翰迪尔零件查询300D - BACKHOE, LOADER Main Frame (802200 - )EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 295 次

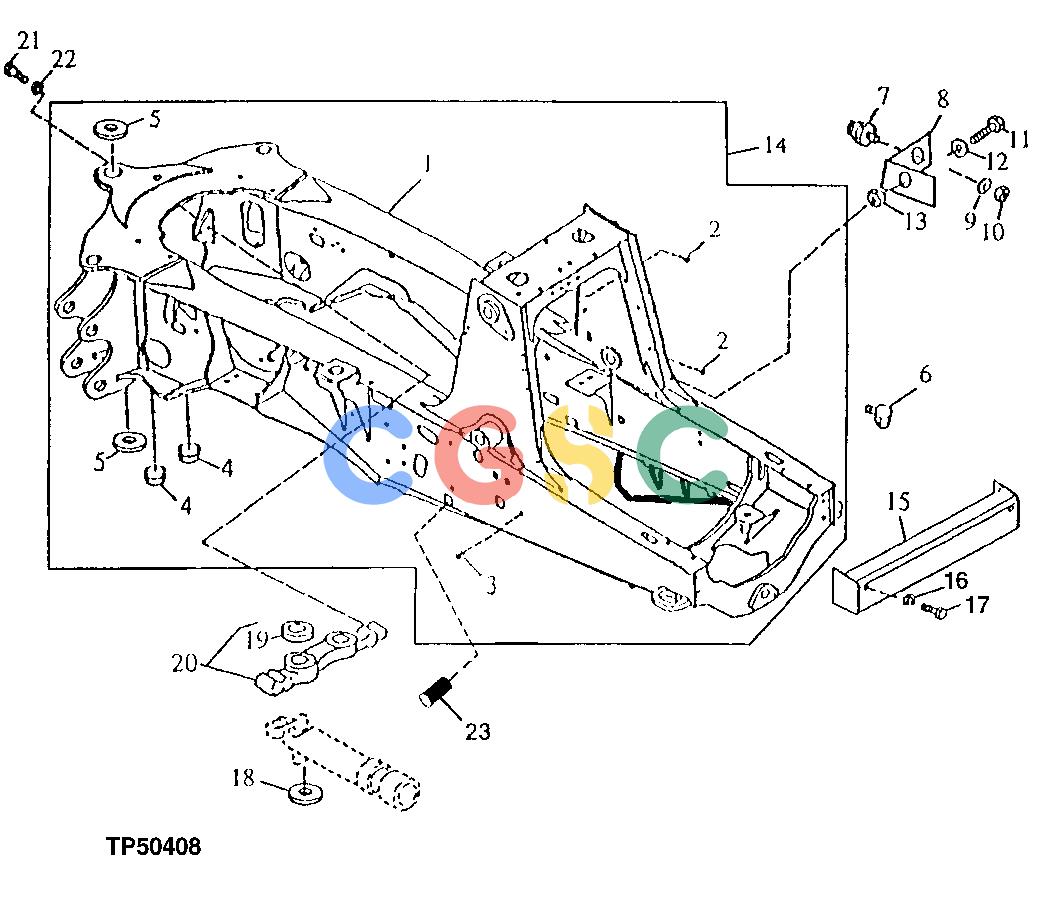

Pos.	Part No	Qty	Parts name	Comments
1.	........	[1]	Frame
2.	T148410	[17]	Nut	M10 (KREMNUT)(RED NO.8 FOR 8 MM PLATE)
3.	T148409	[25]	Nut	M10 (KREMNUT)(GOLD NO.6 FOR 6 MM PLATE)
3.	24H1211	[2]	Washer	9/16" X 1-3/8" X 0.105"
4.	T147070	[2]	Bushing
5.	T148313	[2]	Bushing
6.	JD7799	[1]	Lubrication Fitting
7.	AT36635	[1]	Bumper
8.	T152598	[1]	Support
9.	24H1136	[1]	Washer	11/32" X 11/16" X 0.065"
10.	14H650	[1]	Nut	5/16"
11.	19M7662	[1]	Cap Screw	M10 X 30
12.	24M7239	[1]	Washer	10.700 X 21 X 2.500 MM
13.	14M7517	[1]	Lock Nut	M10
14.	........	[1]	Frame	( AT161930 AND AT173151 NO LONGER AVAILABLE)
15.	AT164570	[1]	Bumper
16.	T119912	[2]	Washer	16.660 X 41.148 X 6 MM (21/32" X 1.620" X 0.236") (SUB FOR 24M7241, THIS APPLICATION)
17.	19M7882	[2]	Screw	M16 X 170
18.	T148387	[2]	Washer
19.	T153303	[2]	Bushing
20.	AT169804	[1]	Trunnion	(MARKED T153304)
21.	19M8224	[4]	Cap Screw	M20 X 60
22.	T83426	[4]	Washer
23.	........	[1]	Hose	MAKE FROM T100484 BULK MATERIAL, CUT TO LENGTH
