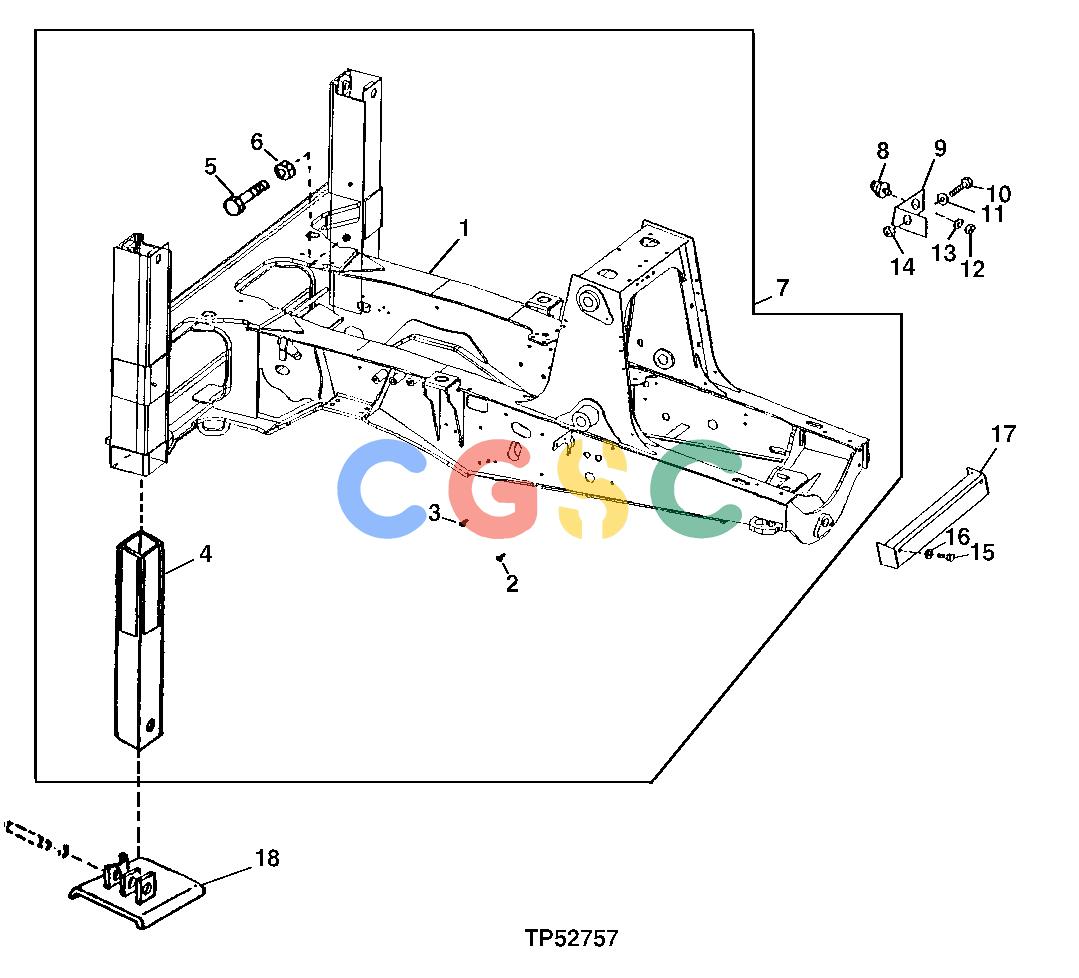

约翰迪尔零件查询300D - BACKHOE, LOADER Main Frame (850000 - )EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
787 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
........
|
[1] |
Frame
|
|
| 2. |
T148410
|
[9] |
Nut
|
|
| 3. |
T148409
|
[25] |
Nut
|
|
| 3. |
24H1211
|
[2] |
Washer
|
|
| 4. |
AT145849
|
[1] |
Arm
|
|
| 5. |
19M8002
|
[2] |
Cap Screw
|
|
| 6. |
14M7335
|
[2] |
Nut
|
|
| 7. |
AT170594
|
[1] |
Frame
|
|
| 8. |
AT36635
|
[1] |
Bumper
|
|
| 9. |
T152598
|
[1] |
Support
|
|
| 10. |
19M7662
|
[1] |
Cap Screw
|
|
| 11. |
24M7239
|
[1] |
Washer
|
|
| 12. |
14H650
|
[1] |
Nut
|
|
| 13. |
24H1136
|
[1] |
Washer
|
|
| 14. |
14M7167
|
[1] |
Lock Nut
|
|
| 15. |
19M7882
|
[2] |
Screw
|
|
| 16. |
T119912
|
[2] |
Washer
|
|
| 17. |
AT164570
|
[1] |
Bumper
|
|
| 18. |
AT172419
|
[1] |
Stabilizer
|
|
| 18. |
AT172420
|
[1] |
Stabilizer
|
|
