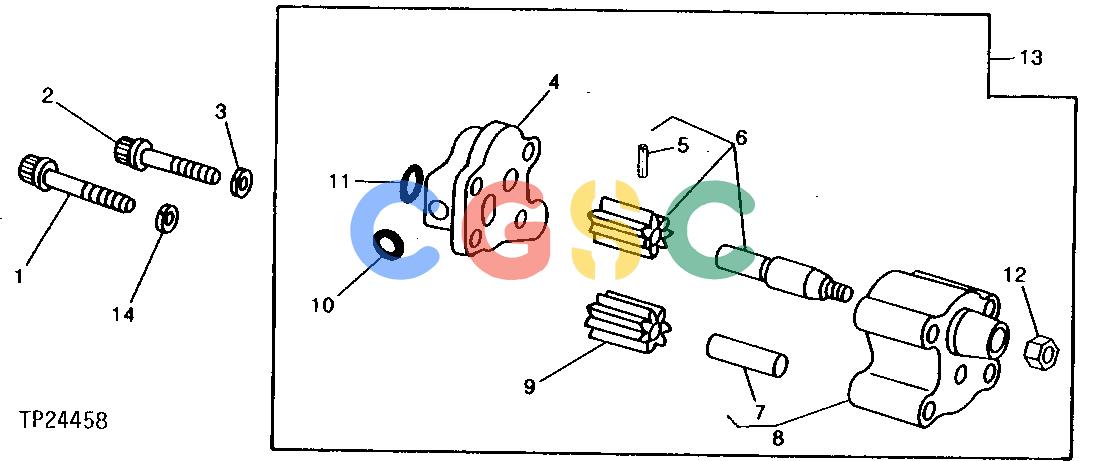

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | R74552 | [2] | Screw | |
| 2. | R57059 | [2] | Cap Screw | |
| 3. | 12H304 | [2] | Lock Washer | 3/8" |
| 4. | R53382 | [1] | Cover | |
| 5. | 34H280 | [1] | Spring Pin | 3/16" X 7/8", (SUB FOR M3853T, THIS APPLICATION) |
| 6. | AR62978 | [1] | Pinion | |
| 7. | T20091 | [1] | Dowel Pin | |
| 8. | ........ | [1] | Housing | (MARKED R54615) (SUB RE55343 AND R113752) |
| 9. | R54614 | [1] | Gear | (7 TEETH) |
| 10. | R74354 | [1] | O-Ring | |
| 11. | R61871 | [1] | O-Ring | |
| 12. | 14H826 | [1] | Nut | 1/2" |
| 13. | RE35685 | [1] | Oil Pump | (SUB RE55343 AND R113752) |
| 14. | 12H304 | [2] | Lock Washer | 3/8" |
| 14. | R74553 | [2] | Washer |
