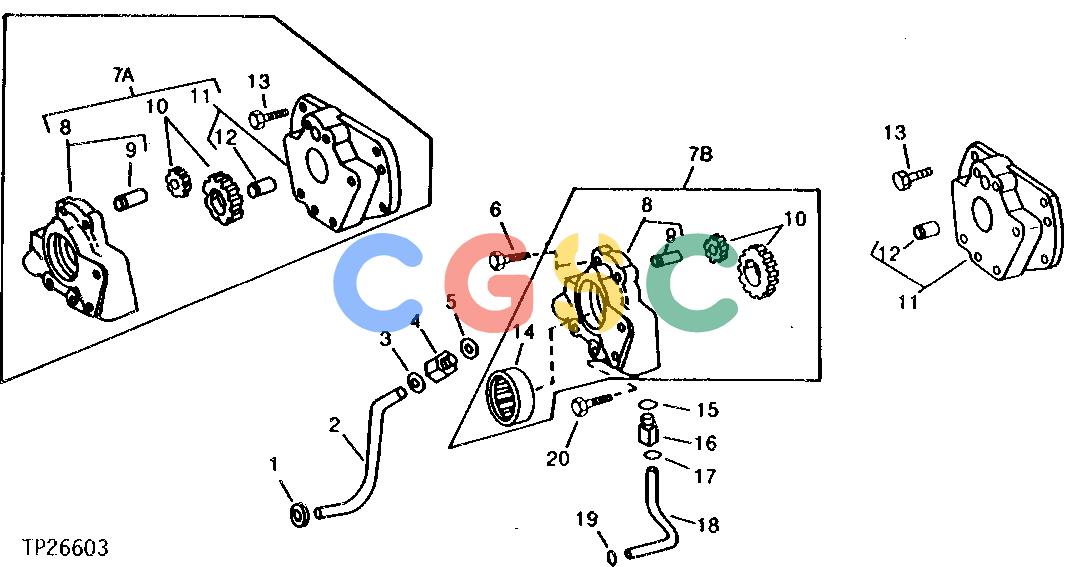

约翰迪尔零件查询302A - BACKHOE, LOADER TRANSMISSION OIL PUMP AND OIL LINES (WITHOUT REVERSER) [01F07]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
587 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R26149
|
[1] |
Packing
|
|
| 2. |
T25418
|
[1] |
Oil Tube
|
|
| 3. |
T13119
|
[1] |
O-Ring
|
|
| 4. |
T30754
|
[1] |
Adapter Fitting
|
|
| 5. |
U12547
|
[1] |
O-Ring
|
|
| 6. |
R41041
|
[1] |
Cap Screw
|
|
| 7A. |
........
|
[1] |
Oil Pump
|
|
| 7B. |
AR96662
|
[1] |
Oil Pump
|
|
| 8. |
........
|
[1] |
Housing
|
|
| 9. |
R39224
|
[1] |
Dowel Pin
|
|
| 10. |
AR69661
|
[1] |
Steering Gear
|
|
| 10. |
R57957
|
[1] |
Gear
|
|
| 11. |
AR69659
|
[1] |
Adapter Fitting
|
|
| 12. |
R30587
|
[3] |
Dowel Pin
|
|
| 13. |
19H3483
|
[4] |
Cap Screw
|
|
| 14. |
JD8720
|
[1] |
Cylindrical Roller Bearing
|
|
| 15. |
R26906
|
[1] |
O-Ring
|
|
| 16. |
T22862
|
[1] |
Adapter Fitting
|
|
| 17. |
R375R
|
[1] |
O-Ring
|
|
| 18. |
T25419
|
[1] |
Oil Tube
|
|
| 19. |
T22851
|
[1] |
Washer
|
|
| 19. |
T68412
|
[1] |
Washer
|
|
| 20. |
R112877
|
[5] |
Cap Screw
|
|
