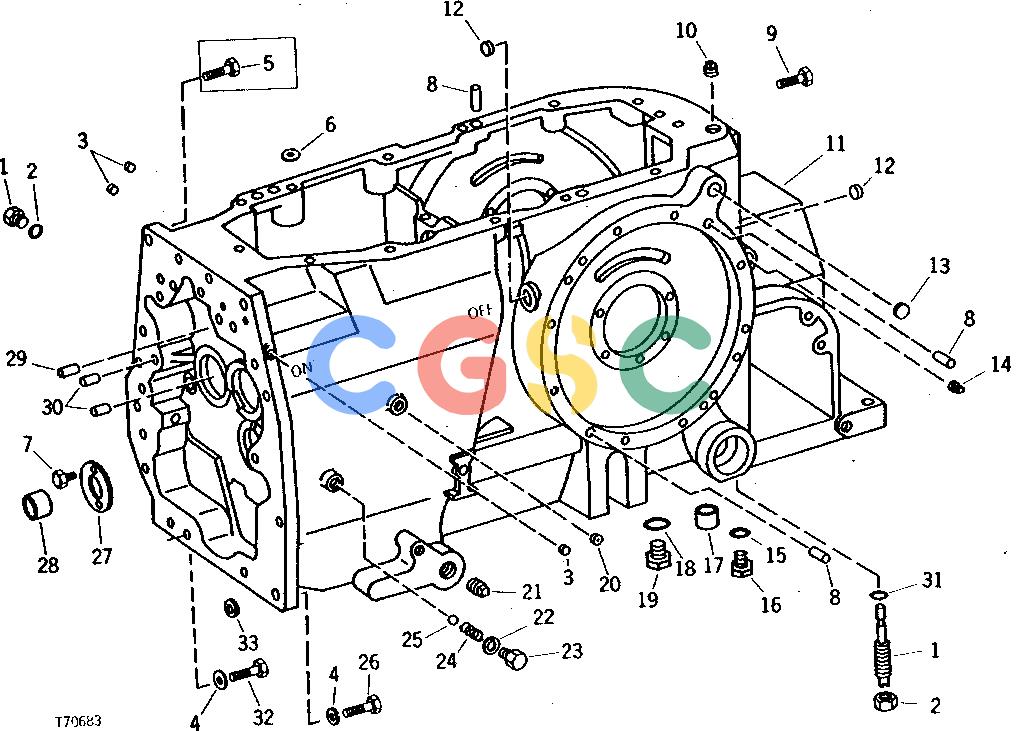

约翰迪尔零件查询302A - BACKHOE, LOADER TRANSMISSION CASE [01F08]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 411 次

Pos.	Part No	Qty	Parts name	Comments
1.	T21776	[1]	Screw	(WITH PARKING BRAKE)
2.	14H971	[1]	Nut	1/2", (WITH PARKING BRAKE)
3.	M1102T	[3]	Plug
4.	T20168	[8]	Washer
5.	19H2735	[2]	Cap Screw	1/2" X 2"
6.	T17882	[2]	Washer
7.	37H44	[2]	Screw	0.154" X 3/8"
8.	R48685	[6]	Dowel Pin	(SUB FOR A120R)
9.	19H2367	[1]	Cap Screw	5/8" X 3/4", (CENTER LINE BRACKET HOLE) (WITHOUT ROCKSHAFT)
10.	15H562	[1]	Pipe Plug	1", (PARKING BRAKE ADJUSTING HOLE)
11.	AT69065	[1]	Transmission Case	(MARKED T71774) (SUB FOR AT65214, MARKED T68035) (SUB FOR AT43407, THIS APPLICATION, MARKED T44556) (ALSO ORDER AR94724)
11.	AR101832	[1]	Case	(MARKED R75561) (INCLUDES DOWEL PINS, STEEL BALL, OIL ROD TUBE AND BUSHING) (SUB FOR AR91514, MARKED R70136)
12.	T18891	[2]	Plug
13.	T21937	[1]	Plug	(WITHOUT PARKING BRAKE)
14.	15H584	[1]	Pipe Plug	1/2"
15.	R27003	[1]	Washer	(WITHOUT PARKING BRAKE)
16.	19H2351	[1]	Cap Screw	1/2" X 1/2", (WITHOUT PARKING BRAKE)
17.	T21671	[1]	Bushing
18.	A4827R	[2]	Washer
19.	R26727	[2]	Drain Plug
20.	T18891	[1]	Plug	(WITHOUT REAR PTO)
21.	15H562	[1]	Pipe Plug	1"
22.	R27003	[1]	Washer	(WITHOUT REAR PTO)
23.	19H2351	[1]	Cap Screw	1/2" X 1/2", (WITHOUT REAR PTO)
24.	T27716	[1]	Compression Spring	(WITH REAR PTO)
25.	R26552	[1]	Ball	5/16" (WITH REAR PTO)
26.	19H2993	[6]	Cap Screw	1/2" X 1-1/2"
26.	19H2735	[4]	Cap Screw	HS, SAE 8, 1/2" X 2"
27.	T28668	[1]	Thrust Washer
28.	T22128	[1]	Bushing
29.	T26565	[2]	Dowel Pin
30.	T24729	[2]	Bushing
31.	R27490	[1]	O-Ring	(WITH PARKING BRAKE)
32.	19H2510	[2]	Cap Screw	HS, SAE 8, 1/2" X 1-5/8"
33.	R72288	[1]	Washer
