约翰迪尔零件查询302A - BACKHOE, LOADER HYDRAULIC ACCUMULATOR AND BRACKET [01H17]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 503 次

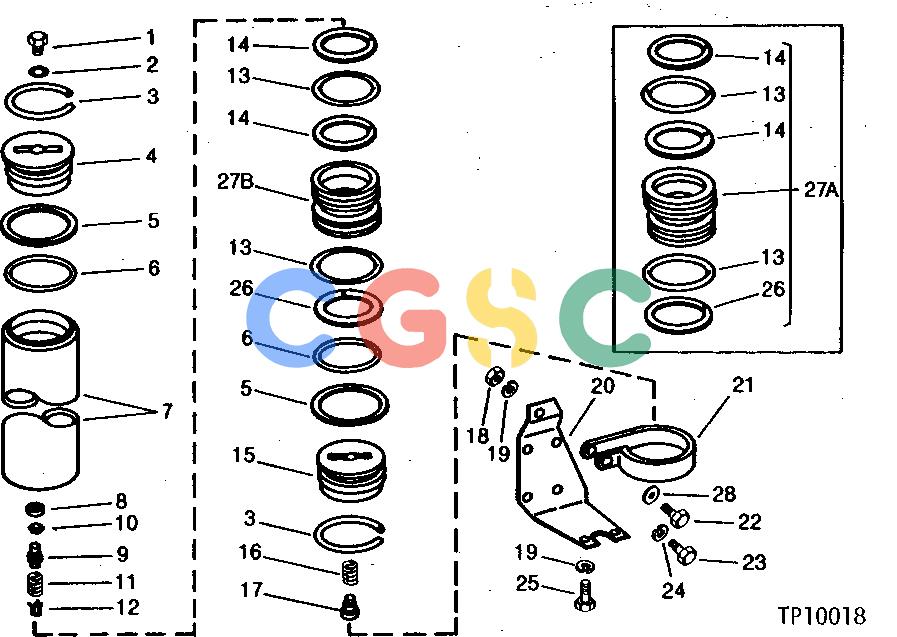

Pos.	Part No	Qty	Parts name	Comments
1.	R27094	[1]	Drain Plug	(A) (B)
2.	R26286	[1]	O-Ring	(A) (B)
3.	U10136	[2]	Snap Ring	(A)
3.	R78101	[2]	Snap Ring	(B)
4.	R48957	[1]	End	(A) (B)
5.	R78823	[2]	Back-Up Ring	(A) (B) (SUB FOR R35684, THIS APPLICATION)
6.	R86192	[2]	O-Ring	(A) (B) (SUB FOR U12331)
7.	R46986	[1]	Hydraulic Cylinder Barrel	(A)
7.	R77866	[1]	Hydraulic Cylinder Barrel	(B)
8.	R60038	[1]	Packing	(A) (B) (SUB FOR R26760)
9.	R47085	[1]	Valve	(A) (B)
10.	R47087	[1]	Washer	(A) (B)
11.	R47086	[1]	Spring	(A) (B)
12.	R41877	[1]	Guide	(A) (B)
13.	A4728R	[2]	O-Ring	(A) (B)
14.	L29015	[2]	Back-Up Ring	(A) (B)
15.	R47912	[1]	Cap	(A) (B)
16.	R28084	[1]	Spring
17.	R47913	[1]	Orifice
18.	14H812	[1]	Nut	3/8"
19.	12H304	[3]	Lock Washer	3/8"
20.	T39887	[1]	Bracket
21.	R35794	[1]	Clamp
22.	19H3239	[1]	Cap Screw	3/8" X 1-1/4"
23.	19H2994	[2]	Cap Screw	HS, SAE 8, 5/8" X 1-1/2"
24.	12H294	[2]	Lock Washer	5/8"
25.	19H2284	[2]	Cap Screw	3/8" X 7/8"
26.	R27649	[1]	Back-Up Ring	(A) (B)
27A.	AL23523	[1]	Bearing	(A) (B) (SUB R57103, R27649, (2) A4728R AND (2) L29015)
27B.	R57103	[1]	Piston	(A) (B)
28.	24H1302	[1]	Washer	13/32" X 11/16" X 0.035"
...	AR46054	[1]	Accumulator	(SUB RE29331) (ALSO ORDER R80752 ENGLISH LABEL, R80753 SPANISH LABEL, R80754 FRENCH LABEL AND R82337 GERMAN LABEL AS REQUIRED)
...	RE11966	[1]	Accumulator	(SUB RE29331) (ALSO ORDER R80752 ENGLISH LABEL, R80753 SPANISH LABEL, R80754 FRENCH LABEL AND R82337 GERMAN LABEL AS REQUIRED)
