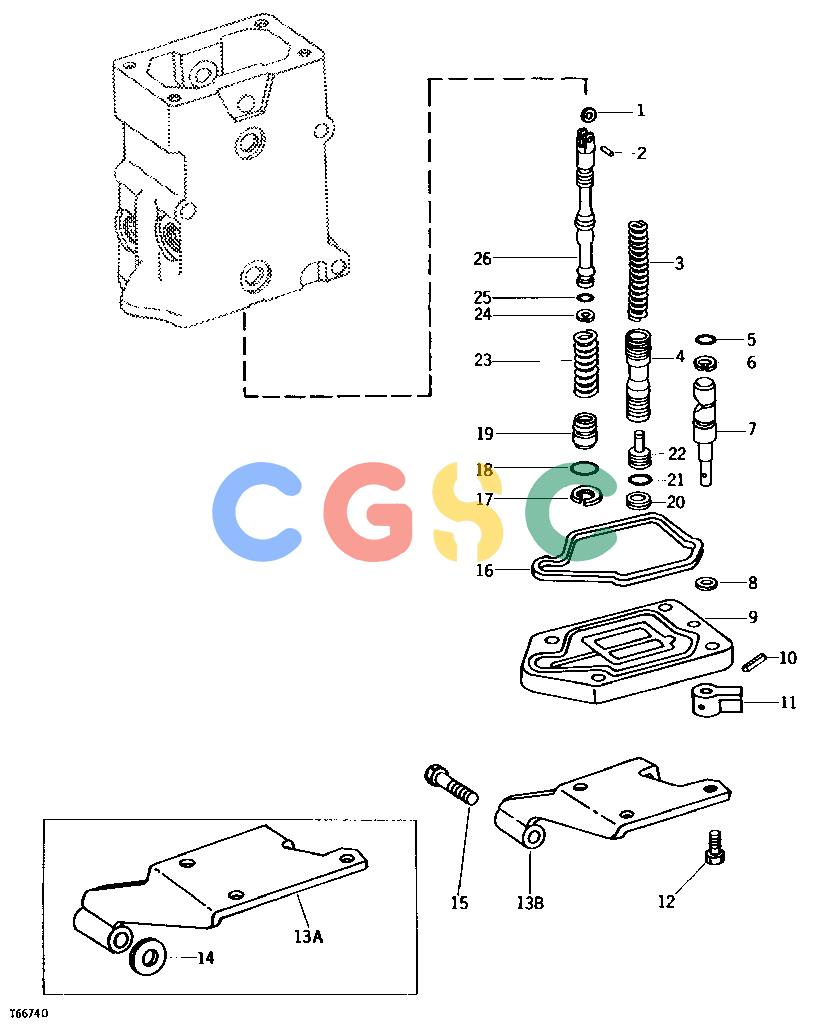

约翰迪尔零件查询302A - BACKHOE, LOADER SELECTIVE CONTROL VALVE POPPET, METERING AND FLOW CONTROL VALVES (SERIAL NO. 277210- ) [01I03]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 859 次

Pos.	Part No	Qty	Parts name	Comments
1.	R51409	[4]	Spacer
2.	34H242	[4]	Spring Pin	1/8" X 7/16"
3.	R41549	[1]	Spring
4.	R52549	[1]	Shut-Off Valve
5.	P46051	[1]	O-Ring
6.	R40937	[1]	Back-Up Ring
7.	R65289	[1]	Valve
8.	R41339	[1]	Shim	.762 MM (.030")
9.	R59629	[1]	Cap	(C)
10.	34H231	[1]	Spring Pin	3/32" X 3/4"
11.	R62652	[1]	Arm	(SUB FOR R41338)
12.	19H2633	[3]	Cap Screw	3/8" X 1-1/2"
12.	19H3239	[3]	Cap Screw	3/8" X 1-1/4"
12.	19H1732	[4]	Cap Screw	3/8" X 1-1/4"
13A.	AR39137	[1]	Bracket
13B.	AR90762	[1]	Bracket
14.	24H1111	[2]	Washer	17/32" X 1-1/16" X 0.090", (USE WITH AR39137)
15.	08H4226	[2]	Cap Screw	1/2" X 6-1/2"
16.	R49187	[1]	Washer	(C)
17.	R41057	[4]	Back-Up Ring
18.	R27166	[4]	O-Ring
19.	R66416	[4]	Bushing
20.	R41057	[1]	Back-Up Ring	(C)
21.	R27166	[1]	O-Ring	(C)
22.	R66916	[1]	Stop	(C)
23.	R65501	[2]	Spring	(C)
23.	R65502	[2]	Spring	(C)
24.	R26484	[4]	Back-Up Ring	(PRESSURE VALVE) (2 USED RETURN VALVE)
25.	A3917R	[4]	O-Ring	(SUB FOR R65286) (PRESSURE VALVE) (2 USED RETURN VALVE)
26.	AR86535	[4]	Valve
...	AR85628	[1]	Cover	CAP WITH PACKINGS
