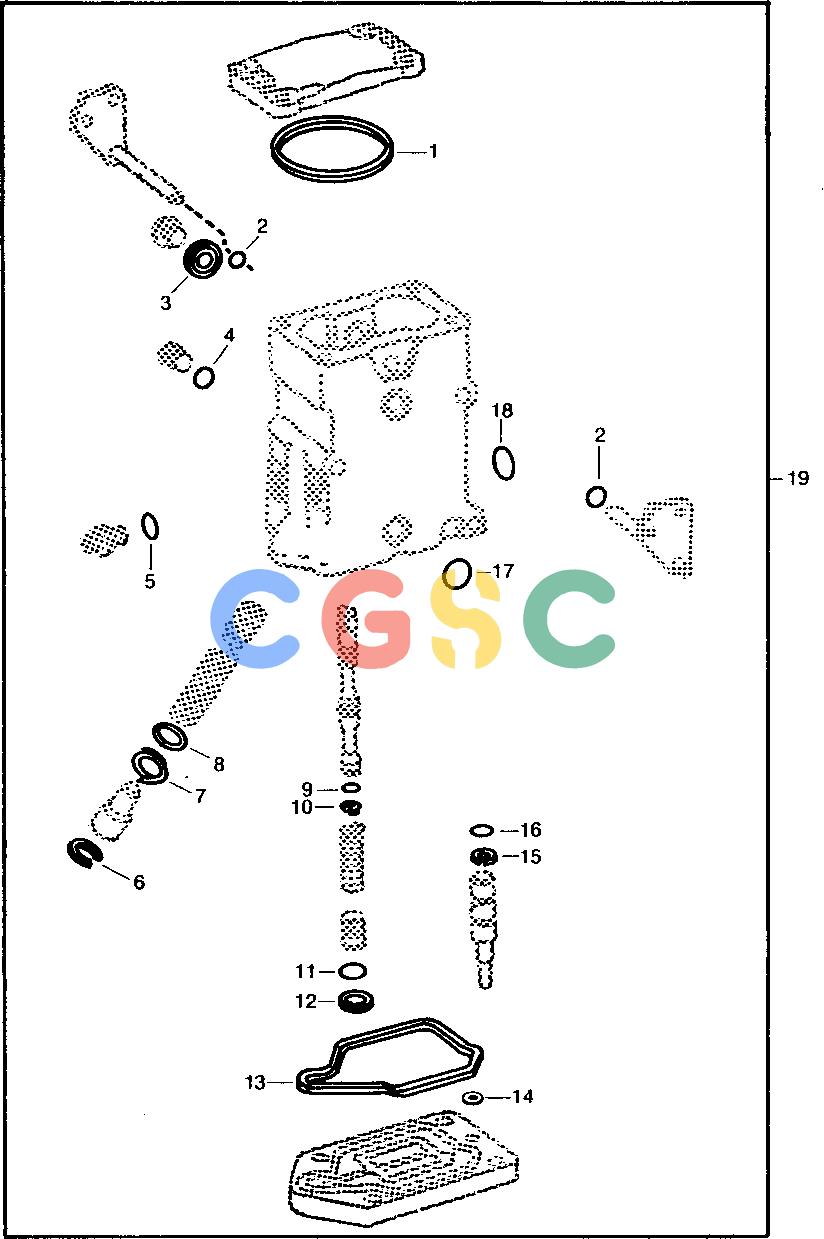

约翰迪尔零件查询302A - BACKHOE, LOADER SELECTIVE CONTROL VALVE OVERHAUL KIT [01I05]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
893 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R49187
|
[1] |
Washer
|
|
| 2. |
R394R
|
[2] |
O-Ring
|
|
| 3. |
AR26697
|
[1] |
Sealing Washer
|
|
| 4. |
R26448
|
[AR] |
O-Ring
|
|
| 5. |
R26375
|
[AR] |
O-Ring
|
|
| 6. |
R46722
|
[1] |
Snap Ring
|
|
| 7. |
R26546
|
[1] |
Back-Up Ring
|
|
| 8. |
B2762R
|
[1] |
O-Ring
|
|
| 9. |
A3917R
|
[AR] |
O-Ring
|
|
| 10. |
R26484
|
[AR] |
Back-Up Ring
|
|
| 11. |
R27166
|
[AR] |
O-Ring
|
|
| 12. |
R41057
|
[AR] |
Back-Up Ring
|
|
| 13. |
R74695
|
[1] |
Washer
|
|
| 14. |
R41339
|
[1] |
Shim
|
|
| 15. |
R40937
|
[1] |
Back-Up Ring
|
|
| 16. |
P46051
|
[1] |
O-Ring
|
|
| 17. |
R26448
|
[1] |
O-Ring
|
|
| 18. |
R26149
|
[AR] |
Packing
|
|
| 19. |
RE10924
|
[1] |
Kit
|
|
