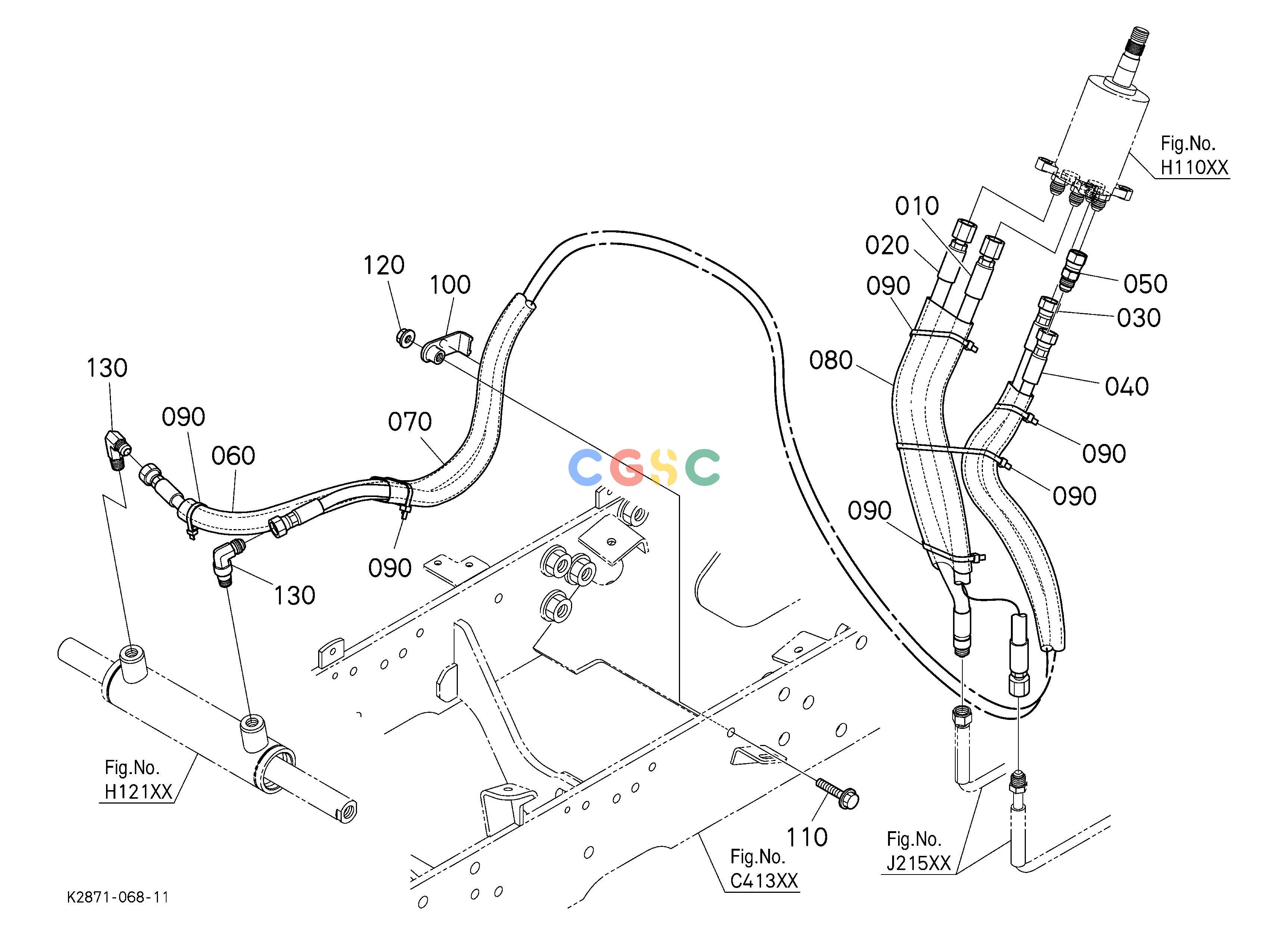

久保田零件查询J21400 HYDRAULIC OIL LINE (STEERING 1) PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
542 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K287141550
|
[1] |
HOSE(PS,IN)
|
0.0000(lbs); 0.000
|
| 010. |
K287141570
|
[1] |
HOSE(PS,IN)
|
0.0000(lbs); 0.000
|
| 020. |
K287141560
|
[1] |
HOSE(PS,OUT)
|
0.0000(lbs); 0.000
|
| 020. |
K287141520
|
[1] |
HOSE(PS,OUT)
|
0.0000(lbs); 0.000
|
| 030. |
K287141610
|
[1] |
HOSE,HYDR(PS,LH)
|
0.0000(lbs); 0.000
|
| 030. |
K287141630
|
[1] |
HOSE,HYDR(PS,LH)
|
0.0000(lbs); 0.000
|
| 040. |
K287141620
|
[1] |
HOSE,HYDR(PS,LH)
|
0.0000(lbs); 0.000
|
| 040. |
K287141640
|
[1] |
HOSE,HYDR(PS,RH)
|
0.0000(lbs); 0.000
|
| 050. |
K287141410
|
[1] |
PIPE(PS,RH,EXT)
|
0.0000(lbs); 0.000
|
| 060. |
K277141630
|
[1] |
SLEEVE(PROTECTION)
|
0.0000(lbs); 0.000
|
| 070. |
K256141636
|
[1] |
SLEEVE PSB15 (40)
|
0.1320(lbs); 0.060
|
| 070. |
K759141640
|
[1] |
SLEEVE(HOSE)
|
0.0000(lbs); 0.000
|
| 080. |
K773187970
|
[1] |
SLEEVE(HEATER HOSE)
|
0.0000(lbs); 0.000
|
| 090. |
K112261230
|
[6] |
BAND,CORD
|
0.0022(lbs); 0.001
|
| 100. |
K251141650
|
[1] |
CLAMP,HOSE
|
0.0440(lbs); 0.020
|
| 110. |
0175450840
|
[1] |
BOLT,FLANGE
|
0.0440(lbs); 0.020
|
| 120. |
0275150080
|
[1] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 130. |
K256141580
|
[2] |
ELBOW
|
0.1760(lbs); 0.080
|
