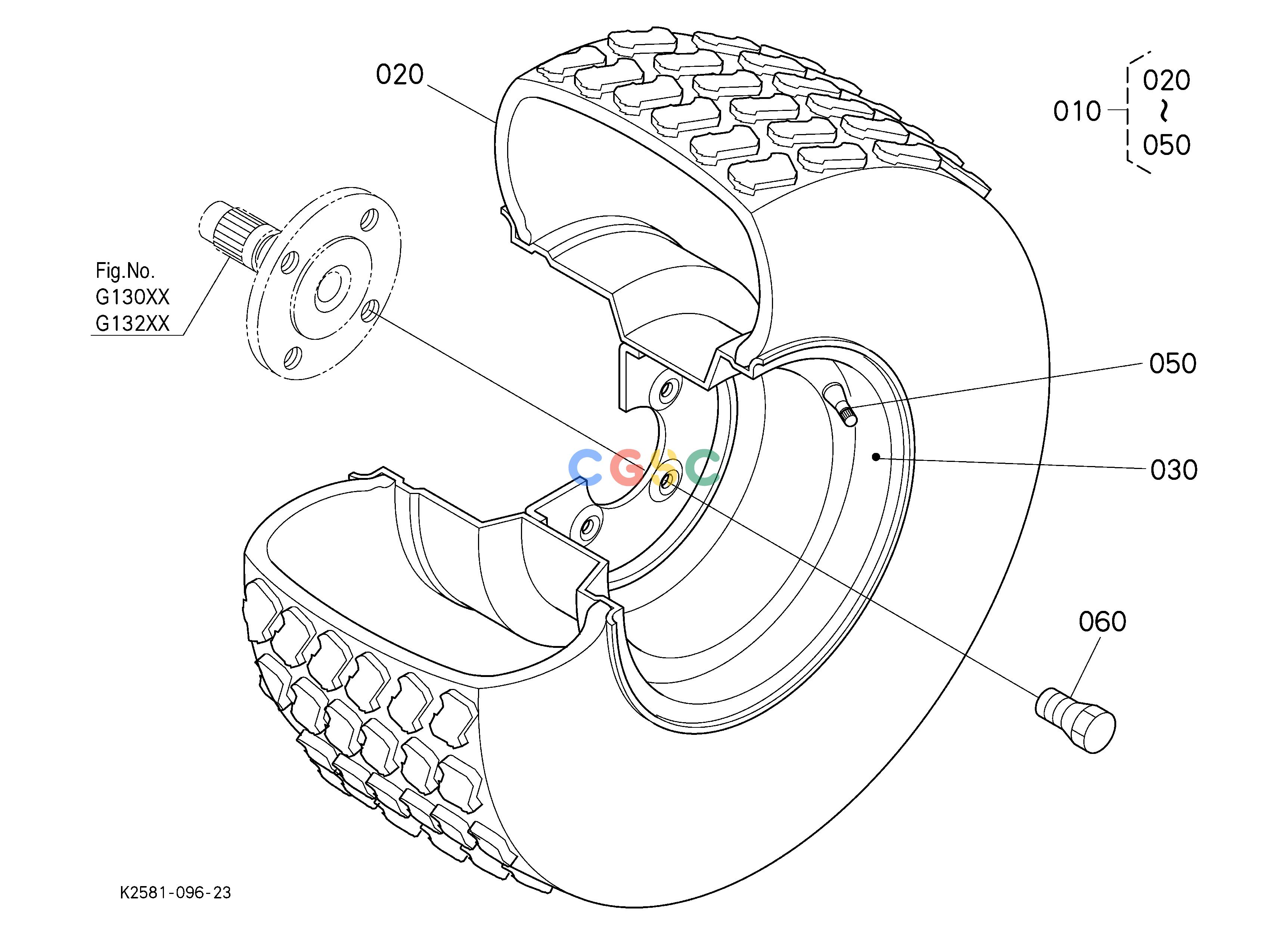

久保田零件查询R10101 FRONT WHEEL (18 8.5-10) FRONT WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
368 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K258118100
|
[2] |
TIRE,ASSY T 18X8.5-10
|
0.0000(lbs); 0.000
|
| 010. |
K287118200
|
[2] |
TIRE,ASSY(T18X8.5-10)
|
0.0000(lbs); 0.000
|
| 020. |
K258118140
|
[2] |
TIRE,T,18X8.50-10
|
0.0000(lbs); 0.000
|
| 030. |
K258118180
|
[2] |
WHEEL,10X7
|
0.0000(lbs); 0.000
|
| 030. |
K287118280
|
[2] |
WHEEL(10X7)
|
0.0000(lbs); 0.000
|
| 050. |
K256117220
|
[2] |
VALVE,TIRE
|
0.0220(lbs); 0.010
|
| 060. |
K256118212
|
[8] |
BOLT(WHEEL,9/16)
|
0.1320(lbs); 0.060
|
