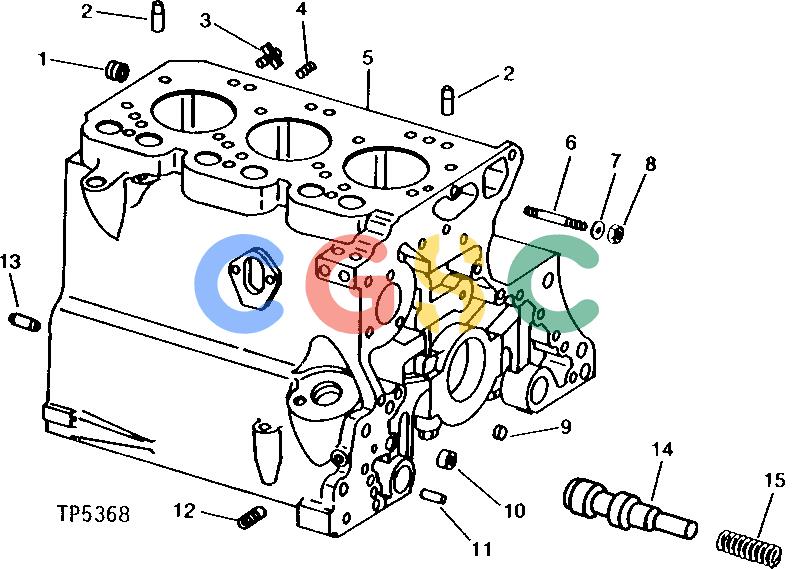

约翰迪尔零件查询310 - BACKHOE, LOADER CYLINDER BLOCK (SERIAL NO. -169357) [01A20]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 424 次

Pos.	Part No	Qty	Parts name	Comments
1.	15H690	[AR]	Pipe Plug	3/4"
1.	T37027	[AR]	Fitting	(WITH CAB)
1.	15H562	[AR]	Pipe Plug	1"
2.	R48685	[2]	Dowel Pin	(SUB FOR R26241, THIS APPLICATION)
3.	AT13740	[1]	Drain Valve	(WITHOUT ENGINE COOLANT HEATER)
3.	T29388	[1]	Union Fitting	(WITH ENGINE COOLANT HEATER) (ALSO ORDER 15H613 ELBOW) (SUB FOR T29381)
4.	15H275	[1]	Pipe Plug	1/4"
4.	T29388	[1]	Union Fitting	(WITH ENGINE COOLANT HEATER)
5.	........	[1]	Cylinder Block	(DIESEL) (SUB RE19841)
5.	........	[1]	Cylinder Block	(GASOLINE)(NO LONGER AVAILABLE)
6.	R122226	[2]	Stud	(SUB FOR R122226)
6.	T25701	[1]	Stud
7.	12H304	[3]	Lock Washer	3/8"
8.	14H812	[3]	Nut	3/8"
9.	T18891	[2]	Plug
10.	R26493	[1]	Bushing	OIL PRESSURE RELIEF VALVE
11.	R26650	[2]	Dowel Pin
12.	15H623	[1]	Pipe Plug	3/8"
13.	R48685	[2]	Dowel Pin	(SUB FOR A120R)
14.	R73139	[1]	Flow Control Hyd. Valve	(USE WITH BLOCK MARKED R72965)
15.	R46625	[1]	Spring	(USE WITH BLOCK MARKED R72965)
...	........	[1]	Short Block Assembly	(DIESEL) (SUB RE19842, (14) R53223 AND R81513)
...	........	[1]	Short Block Assembly	(GASOLINE)(NO LONGER AVAILABLE)
