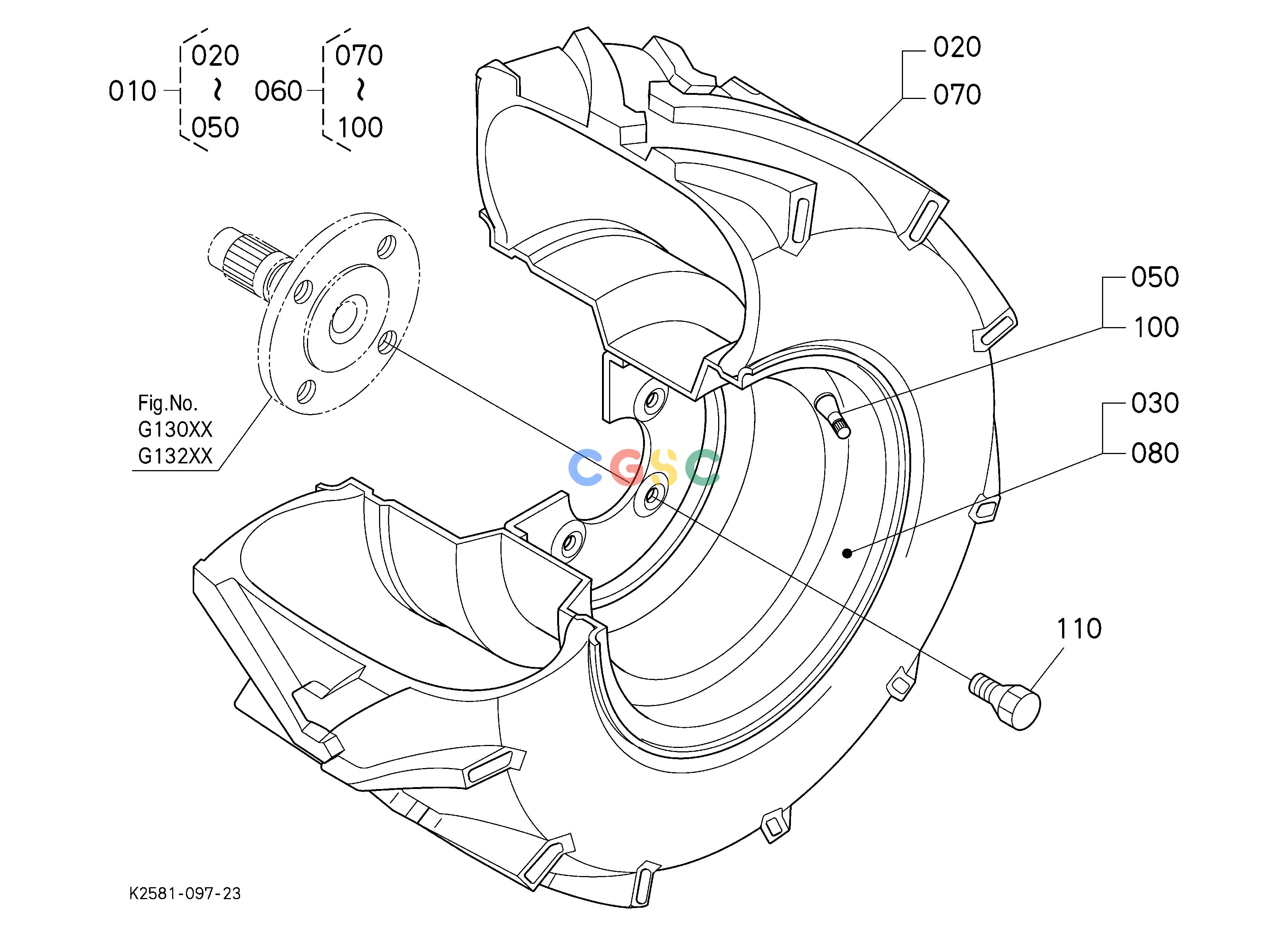

久保田零件查询R10102 FRONT WHEEL (18 8.5-10) FRONT WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
982 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K258118410
|
[1] |
TIRE,ASSY BL18X8.5-10
|
0.0000(lbs); 0.000
|
| 010. |
K287118510
|
[1] |
TIRE,ASSY(BL18X8.5-10)
|
0.0000(lbs); 0.000
|
| 020. |
K258118150
|
[1] |
TIRE,B,18X8.5-10
|
0.0000(lbs); 0.000
|
| 030. |
K258118180
|
[1] |
WHEEL,10X7
|
0.0000(lbs); 0.000
|
| 030. |
K287118280
|
[1] |
WHEEL(10X7)
|
0.0000(lbs); 0.000
|
| 050. |
K256117220
|
[1] |
VALVE,TIRE
|
0.0220(lbs); 0.010
|
| 060. |
K258118420
|
[1] |
TIRE,ASSY BR18X8.5-10
|
0.0000(lbs); 0.000
|
| 060. |
K287118520
|
[1] |
TIRE,ASSY(BR18X8.5-10)
|
0.0000(lbs); 0.000
|
| 070. |
K258118150
|
[1] |
TIRE,B,18X8.5-10
|
0.0000(lbs); 0.000
|
| 080. |
K258118180
|
[1] |
WHEEL,10X7
|
0.0000(lbs); 0.000
|
| 080. |
K287118280
|
[1] |
WHEEL(10X7)
|
0.0000(lbs); 0.000
|
| 100. |
K256117220
|
[1] |
VALVE,TIRE
|
0.0220(lbs); 0.010
|
| 110. |
K256118212
|
[8] |
BOLT(WHEEL,9/16)
|
0.1320(lbs); 0.060
|
