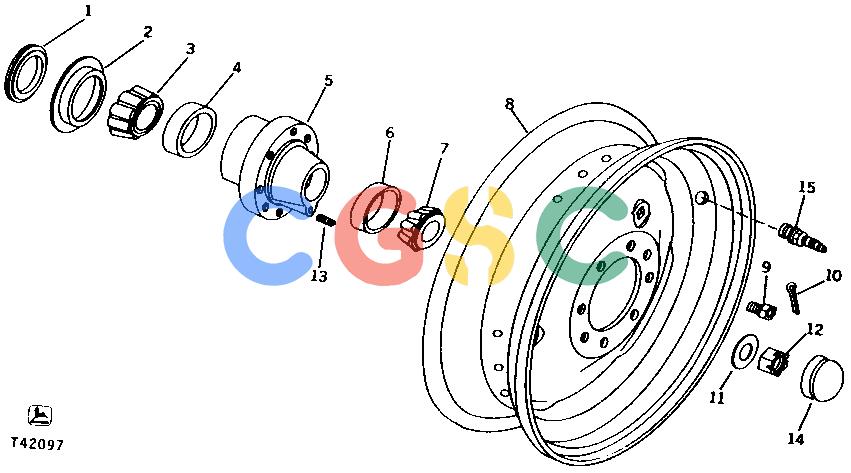

约翰迪尔零件查询310 - BACKHOE, LOADER FRONT WHEEL ASSEMBLY (SERIAL NO. 235786- ) [01H08]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
1012 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AR26480
|
[1] |
Seal
|
|
| 2. |
R26632
|
[1] |
Bushing
|
|
| 3. |
JD8969
|
[1] |
Bearing Cone
|
|
| 4. |
JD7418
|
[1] |
Bearing Cup
|
|
| 5. |
R49841
|
[1] |
Hub
|
|
| 6. |
JD8251
|
[1] |
Bearing Cup
|
|
| 7. |
JD8929
|
[1] |
Bearing Cone
|
|
| 8. |
JD3045
|
[1] |
Wheel
|
|
| 8. |
AT309111
|
[1] |
Wheel
|
|
| 9. |
JD21
|
[8] |
Wheel Bolt
|
|
| 10. |
11M7030
|
[1] |
Cotter Pin
|
|
| 11. |
A5146R
|
[1] |
Washer
|
|
| 12. |
14H920
|
[1] |
Nut
|
|
| 13. |
15H638
|
[1] |
Pipe Plug
|
|
| 14. |
R50992
|
[1] |
Cap
|
|
| 15. |
AN132749
|
[1] |
Tire Valve Stem
|
|
