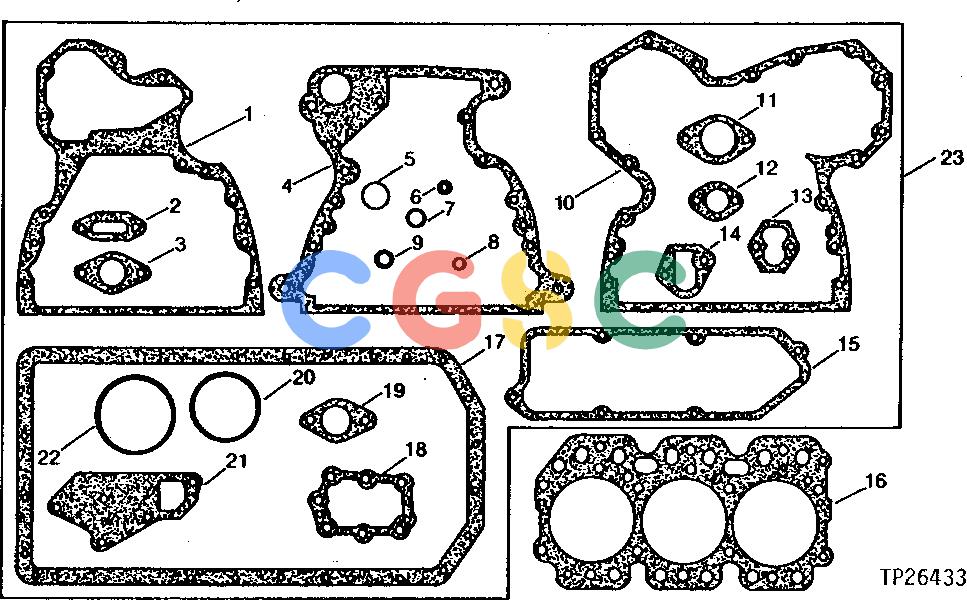

约翰迪尔零件查询310 - BACKHOE, LOADER ENGINE OVERHAUL GASKET SET (DIESEL) [02C12]EPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询310 - BACKHOE, LOADER ENGINE OVERHAUL GASKET SET (DIESEL) [02C12]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 265 次

Pos.	Part No	Qty	Parts name	Comments
1.	R131794	[1]	Gasket	(SUB FOR R90648)
2.	R97352	[1]	Gasket	(SUB FOR T20336)
3.	T20215	[1]	Gasket
4.	R97351	[1]	Gasket	(SUB FOR R49516, THIS APPLICATION) (SUB FOR R70483)
5.	T20328	[1]	Gasket
6.	T20304	[1]	Washer
7.	T13213	[1]	Washer
8.	R27166	[1]	O-Ring	(SUB FOR R27166, THIS APPLICATION)
9.	R56463	[1]	O-Ring	(SUB FOR R495R, THIS APPLICATION)
10.	R121314	[1]	Gasket	(SUB FOR T20155 OR R97454 OR R119269)
11.	R81275	[1]	Gasket	(SUB FOR T20159, THIS APPLICATION)
12.	T20219	[1]	Gasket
13.	R520618	[1]	Gasket	(SUB FOR R97350, R27285)
14.	R69260	[1]	Gasket	(SUB FOR T20364)
15.	AR102261	[1]	Gasket	(SUB FOR T20111) (ALSO ORDER (6) AR103811 CAP SCREWS WITH WASHERS)
16.	R80241	[1]	Gasket	(USE IF AVAILABLE) (SUB FOR R59447)
16.	R97356	[1]	Engine Cylinder Head Gasket	(SUB FOR R80241)
17.	R97341	[1]	Gasket	(SUB FOR R49514)
18.	T20273	[1]	Gasket
19.	R90658	[3]	Gasket	(SUB FOR T20006) (ALL T20006 GASKETS MUST BE REPLACED AT THE SAME TIME. DO NOT MIX T20006 AND R90658)
20.	R70956	[1]	Washer	(SUB FOR R55434)
21.	T20243	[1]	Gasket
22.	R48768	[3]	Washer
23.	RE16912	[1]	Gasket Kit	(SUB FOR AR102298) (ALSO ORDER (3) AR71618, (6) AR103811, (3) R48000 AND (3) RE32011)
23.	RE37492	[1]	Gasket Kit	(SUB FOR RE16912) (ALSO ORDER (3) AR71618, (6) AR103811, (3) R48000 AND (3) RE32011)
23.	RE501578	[1]	Gasket Kit	(SUB FOR RE38853) (ALSO ORDER (3) AR71618, (6) AR103811, (3) R48000 AND (3) RE32011)
