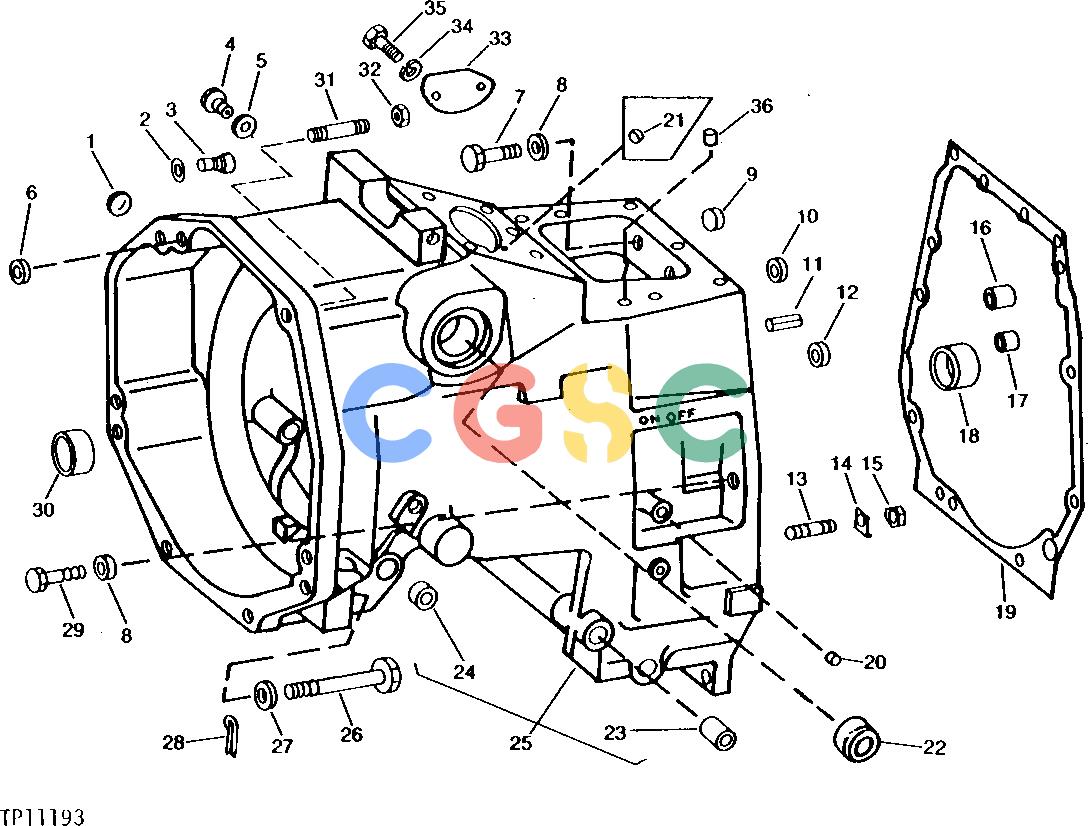

约翰迪尔零件查询310A - BACKHOE, LOADER CLUTCH HOUSING [01G23]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 570 次

Pos.	Part No	Qty	Parts name	Comments
1.	30H13	[AR]	Plug	1", EXPANSION
2.	T21827	[1]	Washer	(WITHOUT TACHOMETER)
3.	T22898	[1]	Plug	(WITHOUT TACHOMETER)
4.	R39112	[1]	Fitting	STEERING SHAFT OIL DRAIN
5.	R26375	[1]	O-Ring
6.	R26919	[1]	Washer
7.	19H2510	[2]	Cap Screw	HS, SAE 8, 1/2" X 1-5/8"
8.	T20168	[3]	Washer
9.	T12083	[1]	Plug	(A)
10.	T22851	[1]	Washer
10.	T68412	[1]	Washer
10.	T68412	[1]	Washer
11.	34H251	[1]	Spring Pin	(A) 1/8" X 1"
12.	A4847R	[1]	Washer
13.	C2175R	[AR]	Stud	(A)
14.	R30958	[4]	Lock Plate
15.	14H812	[4]	Nut	3/8"
16.	T22584	[1]	Bushing	(A) LUBRICATION TUBE
17.	T22585	[1]	Bushing	(A) PRESSURE TUBE
18.	T23212	[1]	Bushing	(A) PLANET PINION CARRIER SHAFT
19.	T36236	[1]	Gasket
20.	M4224T	[1]	Plug
21.	M1102T	[1]	Plug
22.	L1788C	[2]	Bushing	(A)
23.	R27567	[1]	Bushing	(A)
24.	R27320	[1]	Bushing	(A)
25.	AT33619	[1]	Housing	(MARKED T34503) (CONSISTS OF PARTS IDENTIFIED BY (A)) (ALSO ORDER M1102T PLUG) (SUB AT65216, L29854 AND 14H1039) (ALSO ORDER (2) T68412)
25.	AT33619	[1]	Housing	(MARKED T65860) (CONSISTS OF PARTS IDENTIFIED BY (A)) (ALSO ORDER T26416, T21997, (4) R30958, (4) 14H1076, AT73276, (2) 12H304 AND (2) 19H1648) (SUB AT65216) (ALSO ORDER (2) T68412)
25.	AT65216	[1]	Housing	(MARKED T67961) (CONSISTS OF PARTS IDENTIFIED BY (A)) (ALSO ORDER T26416, T21997, (4) R30958, (4) 14H812, AT73276, (2) 12H304 AND (2) 19H1134)
26.	19H3170	[4]	Cap Screw	HS, SAE 8, 5/8" X 4-1/2"
27.	R70268	[4]	Washer	(SUB FOR (4) R42363)
28.	19M7084	[1]	Cap Screw	M8 X 15
29.	19H2735	[1]	Cap Screw	HS, SAE 8, 1/2" X 2"
30.	T23211	[1]	Bushing	(A)
31.	L29854	[1]	Rod
32.	14H1039	[1]	Nut	5/8"
33.	T57002	[1]	Cover
34.	12H304	[2]	Lock Washer	3/8"
35.	19H1134	[2]	Cap Screw	3/8" X 3/4"
36.	M1102T	[1]	Plug
