约翰迪尔零件查询310A - BACKHOE, LOADER BRAKE PEDALS [01H16]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 381 次

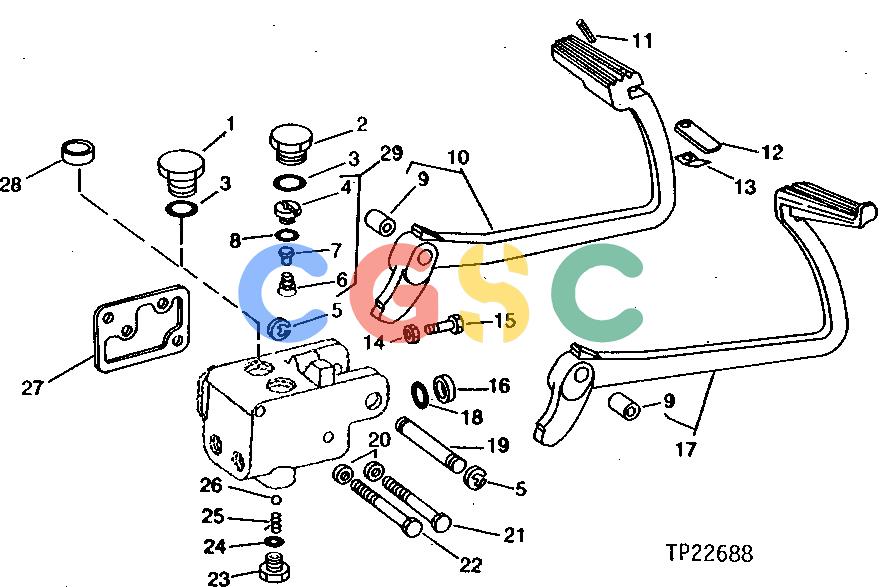

Pos.	Part No	Qty	Parts name	Comments
1.	T21806	[1]	Drain Plug	(USE WITH REPLACEMENT VALVE MARKED R49664)
2.	T21806	[1]	Drain Plug
3.	R29936	[2]	O-Ring
4.	........	[2]	Seat	(A)
5.	F2863R	[2]	Snap Ring
6.	........	[2]	Spring	(A)
7.	........	[2]	Valve	(A)
8.	R26906	[2]	O-Ring	(A)
9.	B177R	[2]	Bushing
10.	........	[1]	Pedal	L.H. (MARKED T21809)
11.	34H312	[1]	Spring Pin	1/4" X 1"
12.	R50879	[1]	Arm
13.	R50034	[1]	Leaf Spring
14.	14H732	[2]	Nut	3/8"
15.	19H3239	[2]	Cap Screw	3/8" X 1-1/4"
16.	T22101	[2]	Seal	(A)
17.	........	[1]	Pedal	R.H. (MARKED T21808) (AT20246 NO LONGER AVAILABLE FURNISH COMPONENT PARTS)
18.	T163092	[1]	Seal	(A) (SUB FOR R495R, THIS APPLICATION)
19.	T49189	[1]	Pin Fastener
20.	12H301	[2]	Lock Washer	1/2"
21.	19H2224	[1]	Cap Screw	1/2" X 4-3/4"
22.	19H3586	[1]	Cap Screw	1/2" X 4-1/4"
23.	R39112	[2]	Fitting
24.	R26375	[2]	O-Ring
25.	T21816	[2]	Compression Spring
26.	D2361R	[2]	Ball	1/2"
27.	T33547	[1]	Gasket
28.	R35286	[1]	Plug	(USE WITH ORIGINAL VALVE MARKED R49663)
29.	........	[2]	Check Valve	(A) AT135655 NO LONGER AVAILABLE, (SUB FOR AT129106) (SUB AT184434)
