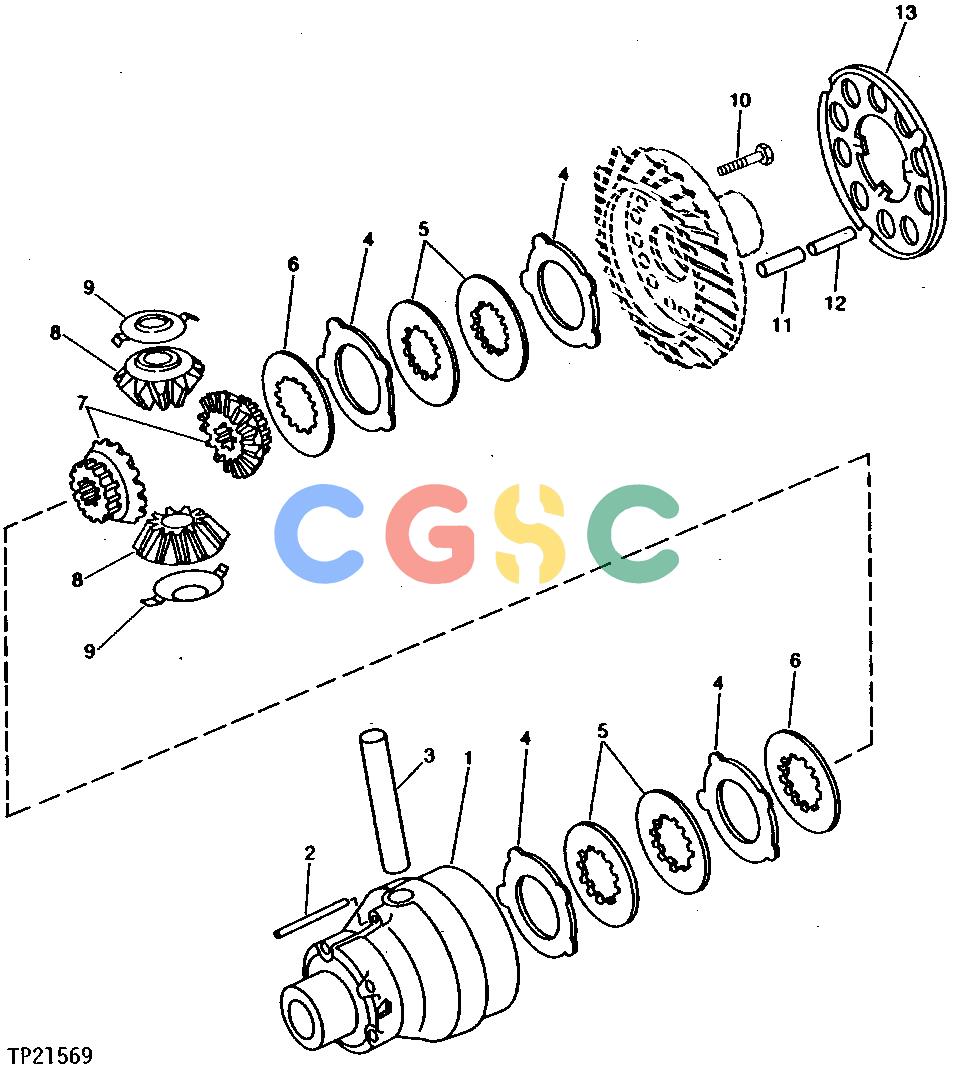

约翰迪尔零件查询310C - BACKHOE, LOADER DIFFERENTIAL CASE (MECHANICAL FRONT WHEEL DRIVE) (SERIAL NO. 373488- ) [01C11]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
242 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT108327
|
[1] |
Differential
|
|
| 2. |
34M7119
|
[1] |
Spring Pin
|
|
| 3. |
L60104
|
[1] |
Pin Fastener
|
|
| 4. |
L60100
|
[AR] |
Disk With Outer Spline
|
|
| 4. |
L60097
|
[AR] |
Disk With Outer Spline
|
|
| 4. |
L60098
|
[AR] |
Disk With Outer Spline
|
|
| 4. |
L60099
|
[AR] |
Disk With Outer Spline
|
|
| 5. |
L40280
|
[8] |
Disk With Inner Spline
|
|
| 6. |
L40258
|
[2] |
Disk With Inner Spline
|
|
| 7. |
L60101
|
[2] |
Bevel Gear
|
|
| 8. |
T116851
|
[2] |
Bevel Gear
|
|
| 9. |
L60103
|
[2] |
Thrust Washer
|
|
| 10. |
19M7402
|
[10] |
Cap Screw
|
|
| 11. |
34M7231
|
[5] |
Spring Pin
|
|
| 12. |
34M7039
|
[5] |
Spring Pin
|
|
| 13. |
T116852
|
[1] |
Washer
|
|
