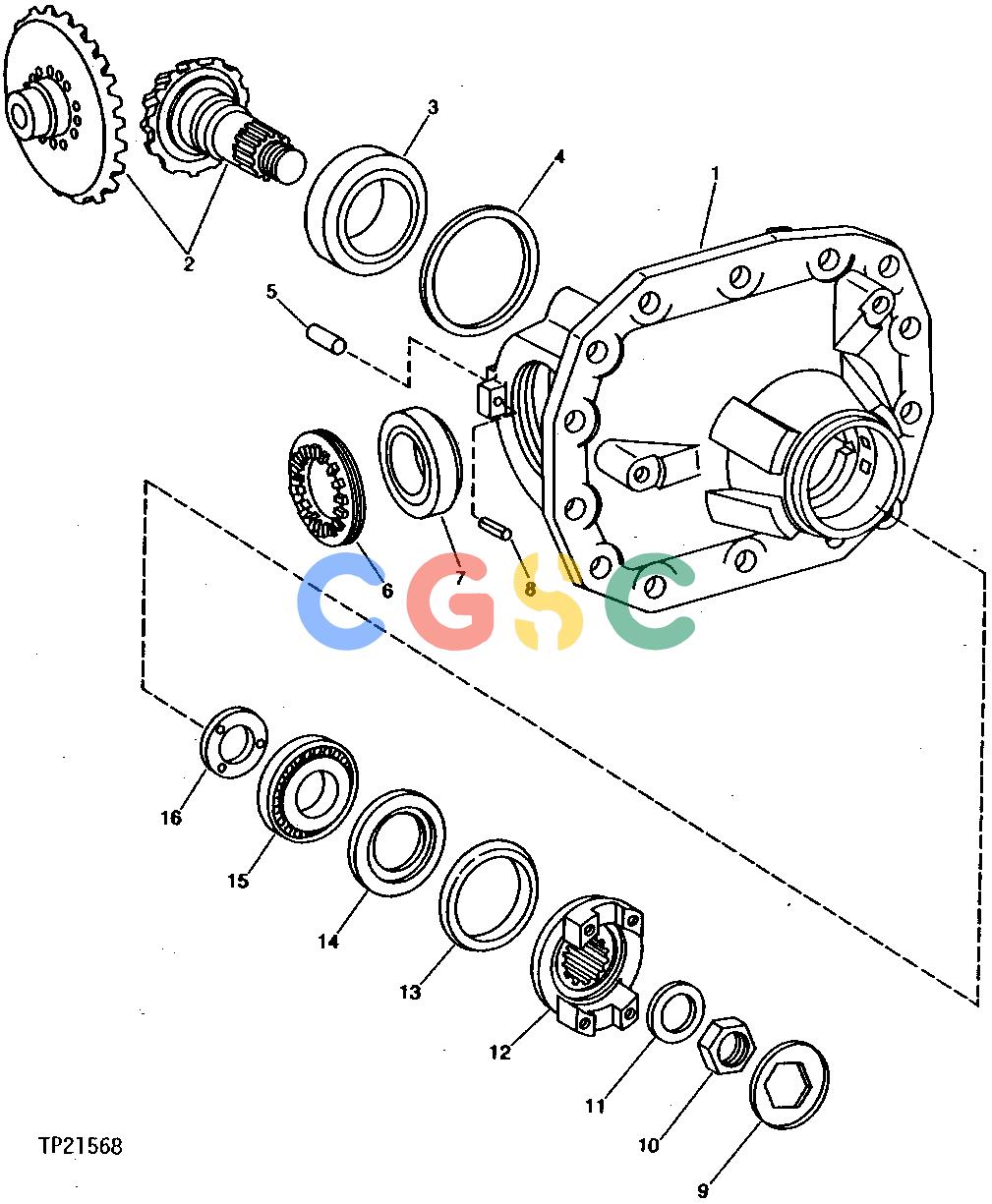

约翰迪尔零件查询310C - BACKHOE, LOADER DIFFERENTIAL CARRIER (MECHANICAL FRONT WHEEL DRIVE) (SERIAL NO. 737488- ) [01C13]EPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询310C - BACKHOE, LOADER DIFFERENTIAL CARRIER (MECHANICAL FRONT WHEEL DRIVE) (SERIAL NO. 737488- ) [01C13]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 249 次

Pos.	Part No	Qty	Parts name	Comments
1.	T116849	[1]	Housing
2.	AT108328	[1]	Bevel Gear Drive
3.	T84057	[1]	Tapered Roller Bearing
4.	L60042	[AR]	Shim	0.5 MM (.020")
4.	L60043	[AR]	Shim	0.6 MM (.024")
4.	L60052	[AR]	Shim	0.65 MM (.026")
4.	L60044	[AR]	Shim	0.7 MM (.028")
4.	L60053	[AR]	Shim	0.75 MM (.030")
4.	L60045	[AR]	Washer	0.80 MM (.031")
4.	L60054	[AR]	Washer	0.85 MM (.033")
4.	L60046	[AR]	Washer	0.90 MM (.035")
4.	L60055	[AR]	Washer	0.95 MM (.037")
4.	L60047	[AR]	Washer	1.0 MM (.039")
4.	L60056	[AR]	Washer	1.05 MM (.041")
4.	L60048	[AR]	Washer	1.1 MM (.043")
4.	L60057	[AR]	Washer	1.15 MM (.045")
4.	L60041	[AR]	Washer	1.2 MM (.047")
4.	L60049	[AR]	Washer	1.3 MM (.051")
4.	L60050	[AR]	Washer	1.4 MM (.055")
4.	L60051	[AR]	Washer	1.5 MM (.059")
5.	T82528	[2]	Dowel Pin
6.	T82529	[2]	Nut
7.	JD37219	[1]	Bearing	(SUB FOR JD10361)
7.	JD37087	[1]	Tapered Roller Bearing	(SUB FOR JD10360) (NOT SHOWN)
8.	34M7216	[2]	Spring Pin	(SUB FOR 34M7041)
9.	T116825	[1]	Locking Collar
10.	T116821	[1]	Nut
11.	T116794	[1]	Washer
12.	AT108336	[1]	Flange
13.	T116850	[1]	Sheet
14.	T116823	[1]	Seal
15.	T116824	[1]	Tapered Roller Bearing	(SUB FOR T116792)
16.	T116798	[AR]	Ring	15.3 MM (.602")
16.	T116799	[AR]	Ring	15.33 MM (.604")
16.	T116800	[AR]	Washer	15.36 MM (.605")
16.	T116801	[AR]	Ring	15.39 MM (.606")
16.	T116802	[AR]	Ring	15.42 MM (.607")
16.	........	[AR]		15.45 MM (.608")
16.	T116804	[AR]	Ring	15.48 MM (.609")
16.	T116805	[AR]	Ring	15.51 MM (.611")
16.	T116806	[AR]	Ring	15.54 MM (.612")
16.	T116807	[AR]	Ring	15.57 MM (.613")
16.	T116808	[AR]	Ring	15.60 MM (.614")
16.	T116809	[AR]	Ring	15.63 MM (.615")
16.	T116810	[AR]	Ring	15.66 MM (.617")
16.	T116811	[AR]	Ring	15.69 MM (.618")
16.	T116812	[AR]	Ring	15.72 MM (.619")
16.	T116813	[AR]	Ring	15.75 MM (.620")
16.	T116814	[AR]	Ring	15.78 MM (.621")
16.	T116815	[AR]	Ring	15.81 MM (.622")
16.	T116816	[AR]	Ring	15.84 MM (.624")
16.	T116817	[AR]	Ring	15.87 MM (.625")
16.	T116818	[AR]	Ring	15.90 MM (.626")
