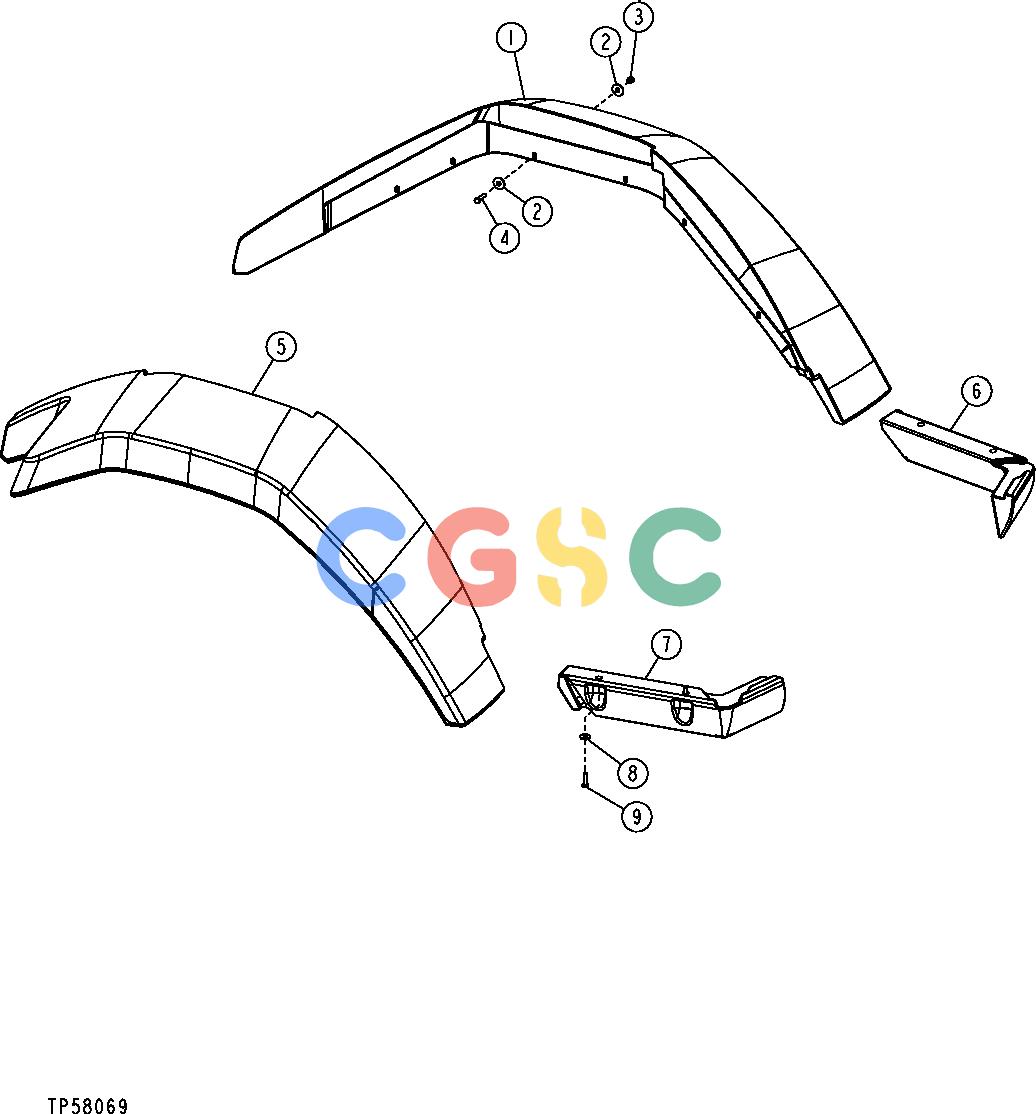

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | T177187 | [1] | Fender | (LH) |
| 2. | 24M7296 | [24] | Washer | 10.500 X 30 X 2.500 MM |
| 3. | 14M7426 | [12] | Lock Nut | M8 |
| 4. | 19M7513 | [12] | Cap Screw | M8 X 30 |
| 5. | T165870 | [1] | Fender | (RH) |
| 6. | T166331 | [1] | Cover | (LH) SERVICE ONLY |
| 7. | T166332 | [1] | Cover | (RH) SERVICE ONLY |
| 8. | 24M7298 | [4] | Washer | 8.400 X 25 X 2 MM |
| 9. | 19M7513 | [4] | Cap Screw | M8 X 30 |
