约翰迪尔零件查询310G - BACKHOE, LOADER RadioEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 625 次

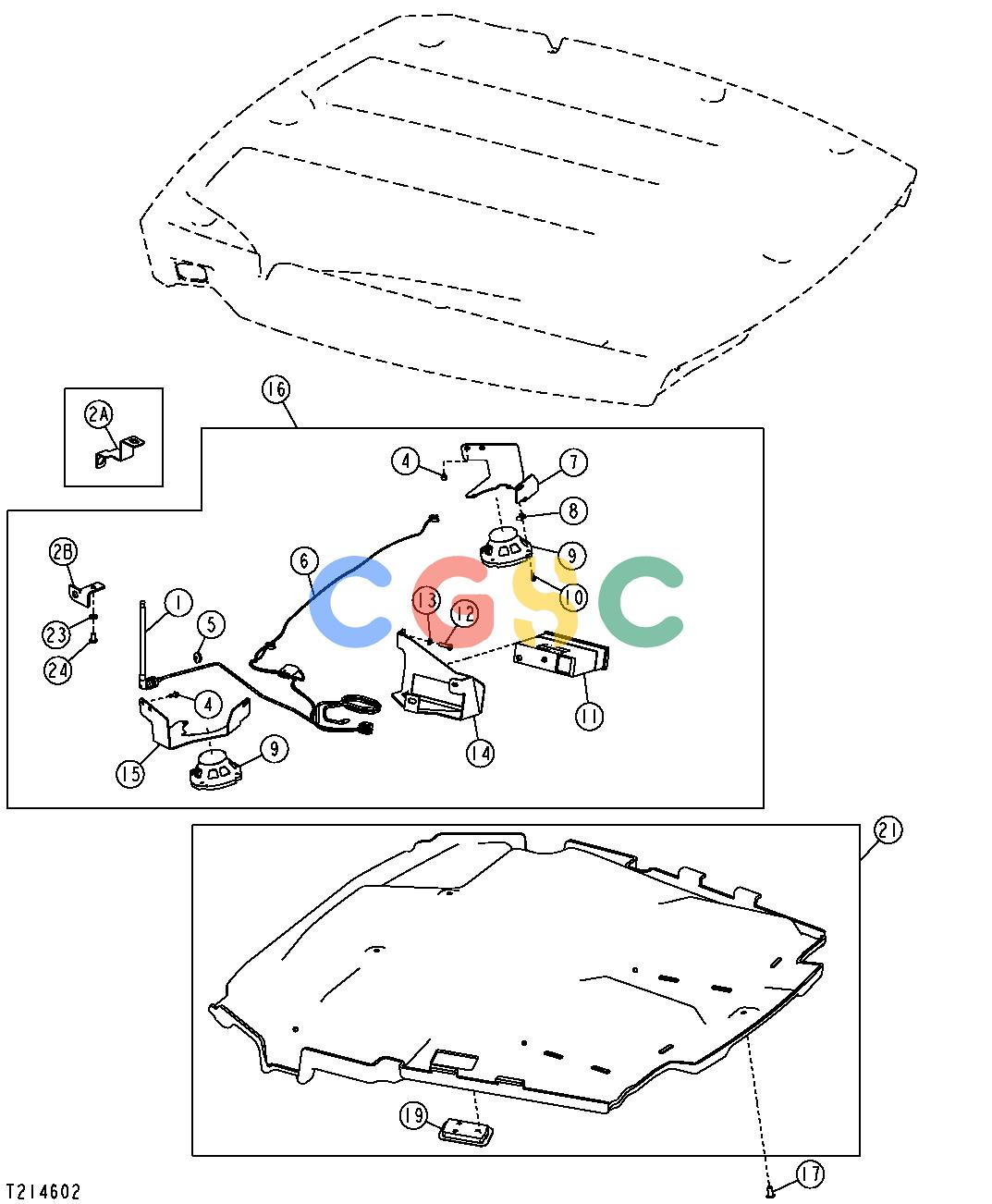

Pos.	Part No	Qty	Parts name	Comments
1.	AT199388	[1]	Antenna	SUB FOR AT185366
2A.	T167232	[1]	Bracket
2B.	T204635	[1]	Bracket
3.	........	[6]	Washer	NOT ILLUSTRATED
4.	19M7775	[6]	Screw	M6 X 16 SUB FOR 19M7933, APPL
5.	T74952	[1]	Grommet
6.	AT191575	[1]	Wiring Harness
7.	T186443	[1]	Bracket
8.	R117892	[6]	Nut	RADIO /SPEAKER MOUNTING
9.	AT342588	[2]	Speaker	SUB FOR AT188759
10.	21M7271	[6]	Screw	M5 X 16
11.	RE190139	[1]	Radio	AM /FM STEREO SUB FOR AT192956 APPL
12.	19M7513	[2]	Cap Screw	M8 X 30
13.	24M7238	[2]	Washer	8.700 X 17 X 2 MM
14.	T165951	[1]	Bracket
15.	T186444	[1]	Bracket
16.	........	[1]	Field Installation Kit	AT192217 NLA ORDER COMPONENTS
17.	........	[9]	Plug	T184892 NLA ORDER (9) MT2485. DRILL HOLE TO 10 MM
17.	MT2485	[9]	Plug	FASTENER SUB FOR T161380
18.	........	[2]	Nut	M84972 NOT ILLUSTRATED ON THIS PAGE
19.	........	[1]	Headliner	AT185500 NLA ORDER AT320544 AND AT326356
19.	AT320544	[1]	Lamp
20.	........	[1]	Self-Locking Screw	T134895 NOT ILLUSTRATED ON THIS PAGE
21.	........	[1]	Headliner	RADIO AT185499 AND AT321005, NLA ORDER AT335596, AT326356, AND AT320544
21.	AT335596	[1]	Headliner	AT321005 NLA
22.	AT326356	[1]	Cab Wiring Harness	REQUIRED FOR AT335596 OR AT320544
23.	24M7239	[1]	Washer	10.700 X 21 X 2.500 MM
24.	19M8324	[1]	Cap Screw	M10 X 16
