约翰迪尔零件查询310G - BACKHOE, LOADER Main Hydraulic System ( - 913416)EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 385 次

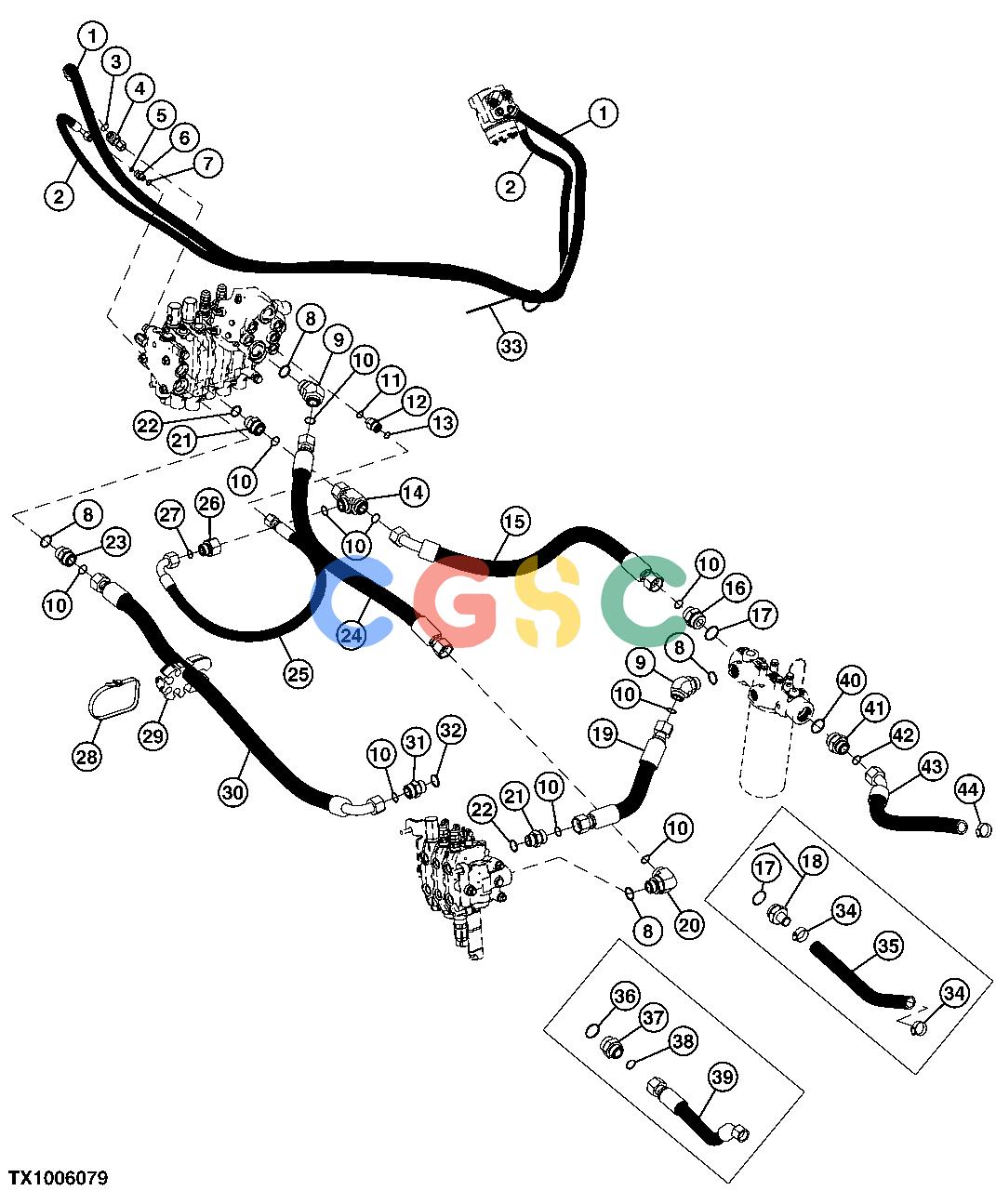

Pos.	Part No	Qty	Parts name	Comments
1.	AT184952	[1]	Hydraulic Hose - Fabricate	(ALSO ORDER 62H1043 AND T77857)
1.	62H1043	[1]	Adapter Fitting	STC
2.	AT184951	[1]	Hydraulic Hose - Fabricate	(ALSO ORDER 62H1042 AND T77613)
2.	62H1042	[1]	Adapter Fitting	STC
3.	T77857	[1]	O-Ring
4.	38H1095	[1]	Elbow Fitting
5.	T77613	[1]	O-Ring
6.	38H1160	[1]	Adapter Fitting
7.	R26448	[1]	O-Ring
8.	R29936	[4]	O-Ring
9.	38H1073	[2]	Elbow Fitting
9.	38H1049	[2]	Elbow Fitting
10.	T77858	[6]	O-Ring
10.	T76938	[6]	O-Ring
11.	R26375	[1]	O-Ring
12.	38H1317	[1]	Fitting
13.	T77932	[1]	O-Ring
14.	38H1033	[1]	Tee Fitting
14.	38H1002	[1]	Tee Fitting
14.	38H1002	[AR]	Tee Fitting	NOT ILLUSTRATED
15.	AT191046	[1]	Hydraulic Hose - Fabricate	36.5252" X 860 MM (33-3/4") X 30.1752"
15.	AT190829	[1]	Hydraulic Hose - Fabricate	36.5252" X 800 MM (31-1/2") X 36.5252" WITH AUXILIARY HYDRAULICS
15.	AT186357	[1]	Hydraulic Hose - Fabricate	36.5252" X 850 MM (33-1/2") X 36.5252" WITHOUT AUXILIARY HYDRAULICS
15.	AT190829	[1]	Hydraulic Hose - Fabricate	36.5252" X 800 MM (31-1/2") X 36.5252" WITH AUXILIARY HYDRAULICS (SUB FOR AT191236 APPL)
15.	AT190829	[1]	Hydraulic Hose - Fabricate	36.5252" X 800 MM (31-1/2") X 36.5252" WITHOUT AUXILIARY HYDRAULICS
16.	38H1180	[1]	Adapter Fitting
17.	U13639	[1]	O-Ring
18.	........	[1]	Adapter Fitting	(AT198196 NLA) (SUB T191313, U13639, T76938, AT280598 AND AH105968)
19.	AT186428	[1]	Hydraulic Hose - Fabricate	30.1752" X 409 MM (16-1/4") X 30.1752"
19.	AT199334	[1]	Hydraulic Hose - Fabricate	36.5252" X 400 MM (15-3/4") X 36.5252" (SUB FOR AT186358)
20.	38H1052	[1]	Elbow Fitting
20.	38H1037	[1]	Elbow Fitting
21.	38H1343	[2]	Adapter Fitting
21.	38H1346	[2]	Adapter Fitting
22.	U17409	[2]	O-Ring
23.	38H1194	[1]	Adapter Fitting
23.	38H1164	[1]	Adapter Fitting
24.	AT186427	[1]	Hydraulic Hose - Fabricate	30.1752" X 974 MM (38-1/2") X 30.1752"
24.	AT185609	[1]	Hydraulic Hose - Fabricate	36.5252" X 985 MM (38-3/4") X 36.5252"
25.	AT186359	[1]	Hydraulic Hose - Fabricate	1" X 860 MM (33-3/4") X 30.1752"
25.	AT191237	[1]	Hydraulic Hose - Fabricate	1" X 565 MM (22-1/4") X 1" NOT ILLUSTRATED
26.	38H1483	[1]	Reducer
26.	38H1476	[2]	Reducer	NOT ILLUSTRATED
27.	T77858	[1]	O-Ring
27.	T77932	[1]	O-Ring	NOT ILLUSTRATED
28.	N189220	[1]	Tie Band
29.	T167142	[1]	Hose Clamp	GATHERING CLAMP
29.	T165940	[1]	Hose Clamp	GATHERING CLAMP (SUB FOR T165940)
29.	T190669	[1]	Hose Clamp
30.	AT187709	[1]	Hydraulic Hose - Fabricate	30.1752" X 1281 MM (50-1/2") X 30.1752"
30.	AT185586	[1]	Hydraulic Hose - Fabricate	36.5252" X 1305 MM (51-1/2") X 36.5252"
31.	38H1163	[1]	Adapter Fitting
31.	38H1164	[1]	Adapter Fitting
32.	U12547	[1]	O-Ring
32.	R29936	[1]	O-Ring
33.	H77698	[1]	Tie Band
34.	AH105968	[2]	Hose Clamp
35.	T207885	[1]	Hose	660 MM
36.	U13639	[1]	O-Ring
37.	38H1180	[1]	Adapter Fitting
38.	T76938	[1]	O-Ring
39.	AT190561	[1]	Hydraulic Hose - Fabricate	36.5252" X 615 MM (24-1/4") X 30.1752"
40.	U13639	[1]	O-Ring
41.	T191313	[1]	Orifice
42.	T76938	[1]	O-Ring
43.	AT280598	[1]	Hydraulic Hose - Fabricate
44.	AH105968	[1]	Hose Clamp
