约翰迪尔零件查询310G - BACKHOE, LOADER Main Hydraulic System (913417 - )EPC John Deere online_约翰迪尔John Deere_工程机械

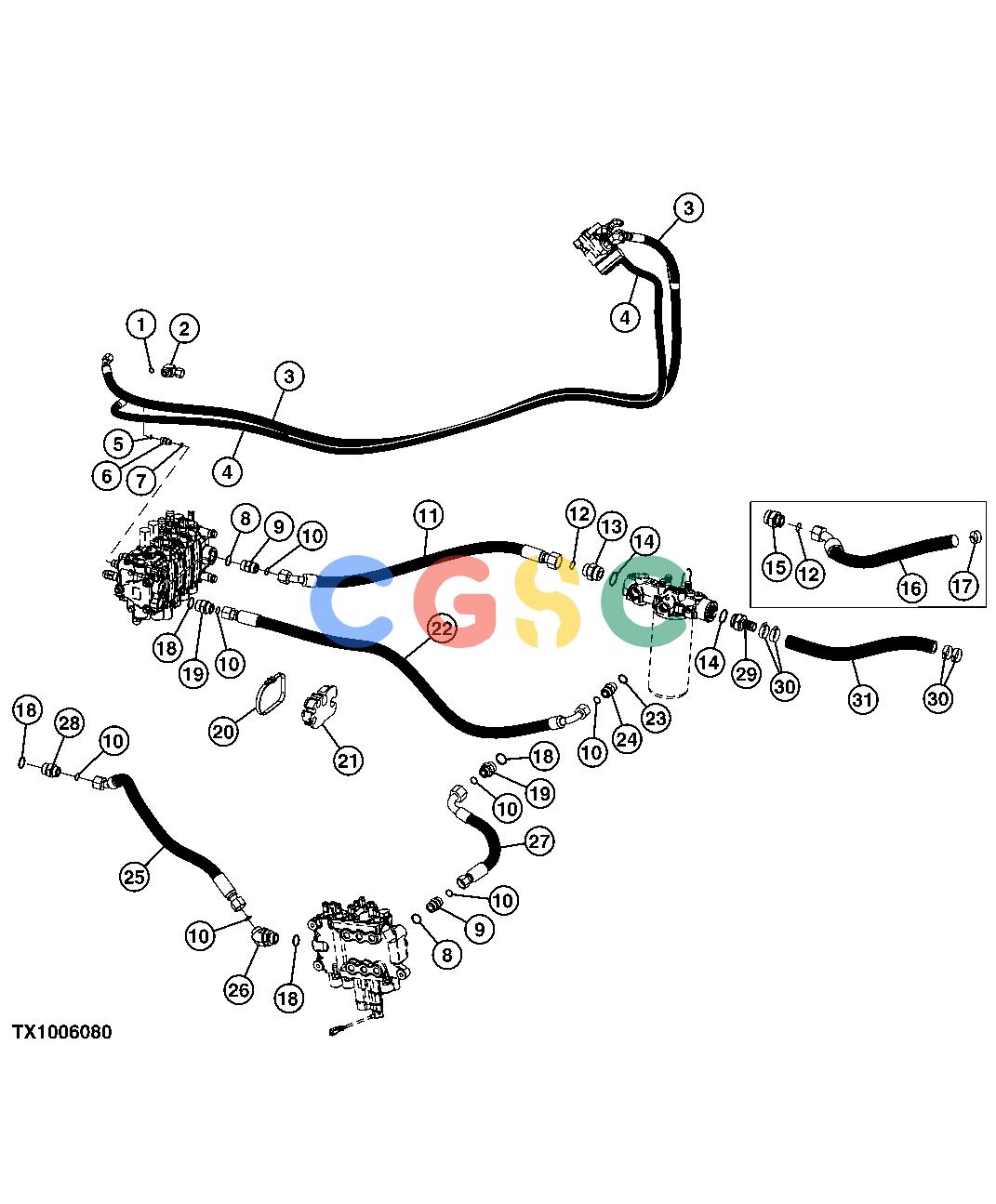

约翰迪尔零件查询310G - BACKHOE, LOADER Main Hydraulic System (913417 - )EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 304 次

Pos.	Part No	Qty	Parts name	Comments
1.	T77857	[1]	O-Ring
2.	38H1095	[1]	Elbow Fitting
3.	AT184952	[1]	Hydraulic Hose - Fabricate
4.	AT184951	[1]	Hydraulic Hose - Fabricate
5.	T77613	[1]	O-Ring
6.	38H1160	[1]	Adapter Fitting
7.	R26448	[1]	O-Ring
8.	U17409	[2]	O-Ring
9.	38H1343	[2]	Adapter Fitting
9.	38H1346	[2]	Adapter Fitting
10.	T77858	[7]	O-Ring
10.	T76938	[7]	O-Ring
11.	AT190762	[1]	Hydraulic Hose - Fabricate	30.1752" X 710 MM (28") X 36.5252" WITH AUXILIARY HYDRAULICS
11.	AT196400	[1]	Hydraulic Hose - Fabricate	1" X 952 MM (37-1/2") X 13/16" WITHOUT AUXILIARY HYDRAULICS
11.	AT300759	[1]	Hydraulic Hose - Fabricate	36.5252" X 869 MM (34-1/4") X 36.5252" WITH AUXILIARY HYDRAULICS
11.	AT196320	[1]	Hydraulic Hose - Fabricate	1" X 965 MM (38") X 1" WITHOUT AUXILIARY HYDRAULICS
12.	T76938	[2]	O-Ring
13.	38H1180	[1]	Adapter Fitting
14.	U13639	[2]	O-Ring
15.	T191313	[1]	Orifice
16.	AT280598	[1]	Hydraulic Hose - Fabricate
17.	AH105968	[1]	Hose Clamp
18.	R29936	[1]	O-Ring
19.	38H1194	[2]	Adapter Fitting
19.	38H1164	[2]	Adapter Fitting
20.	N189220	[1]	Tie Band
21.	T167142	[1]	Hose Clamp
21.	T190669	[1]	Hose Clamp	WITH PILOT CONTROLS
21.	T190669	[1]	Hose Clamp
22.	AT303066	[1]	Hydraulic Hose - Fabricate	30.1752" X 1295 MM (51") X 30.1752" (SUB FOR AT196399 APPL)
22.	AT303065	[1]	Hydraulic Hose - Fabricate	36.5252" X 1295 MM (51") X 36.5252" (SUB FOR AT196318 APPL)
23.	U12547	[1]	O-Ring
23.	R29936	[1]	O-Ring
24.	38H1163	[1]	Adapter Fitting	(SUB FOR 38H1007 APPL)
24.	38H1164	[1]	Adapter Fitting	(SUB FOR 38H1037 APPL)
25.	AT196397	[1]	Hydraulic Hose - Fabricate	13/16" X 863 MM (34") X 13/16"
25.	AT318647	[1]	Hydraulic Hose - Fabricate	30.1752" X 825 MM (32-1/2") X 36.5252" PILOT CONTROL
25.	AT196319	[1]	Hydraulic Hose - Fabricate	1" X 825 MM (32-1/2") X 1"
26.	38H1073	[1]	Elbow Fitting
26.	38H1049	[1]	Elbow Fitting
27.	AT196398	[1]	Hydraulic Hose - Fabricate	13/16" X 495 MM (19-1/2") X 13/16"
27.	AT196321	[1]	Hydraulic Hose - Fabricate	1" X 495 MM (19-1/2") X 1"
28.	38H1194	[1]	Adapter Fitting
28.	38H1216	[1]	Adapter Fitting	PILOT CONTROL
28.	38H1216	[1]	Adapter Fitting
29.	T208467	[1]	Fitting	(SUB FOR T204992)
30.	AT300153	[4]	Hose Clamp
31.	TY22556	[1]	Hose	(CTL 2.25')
