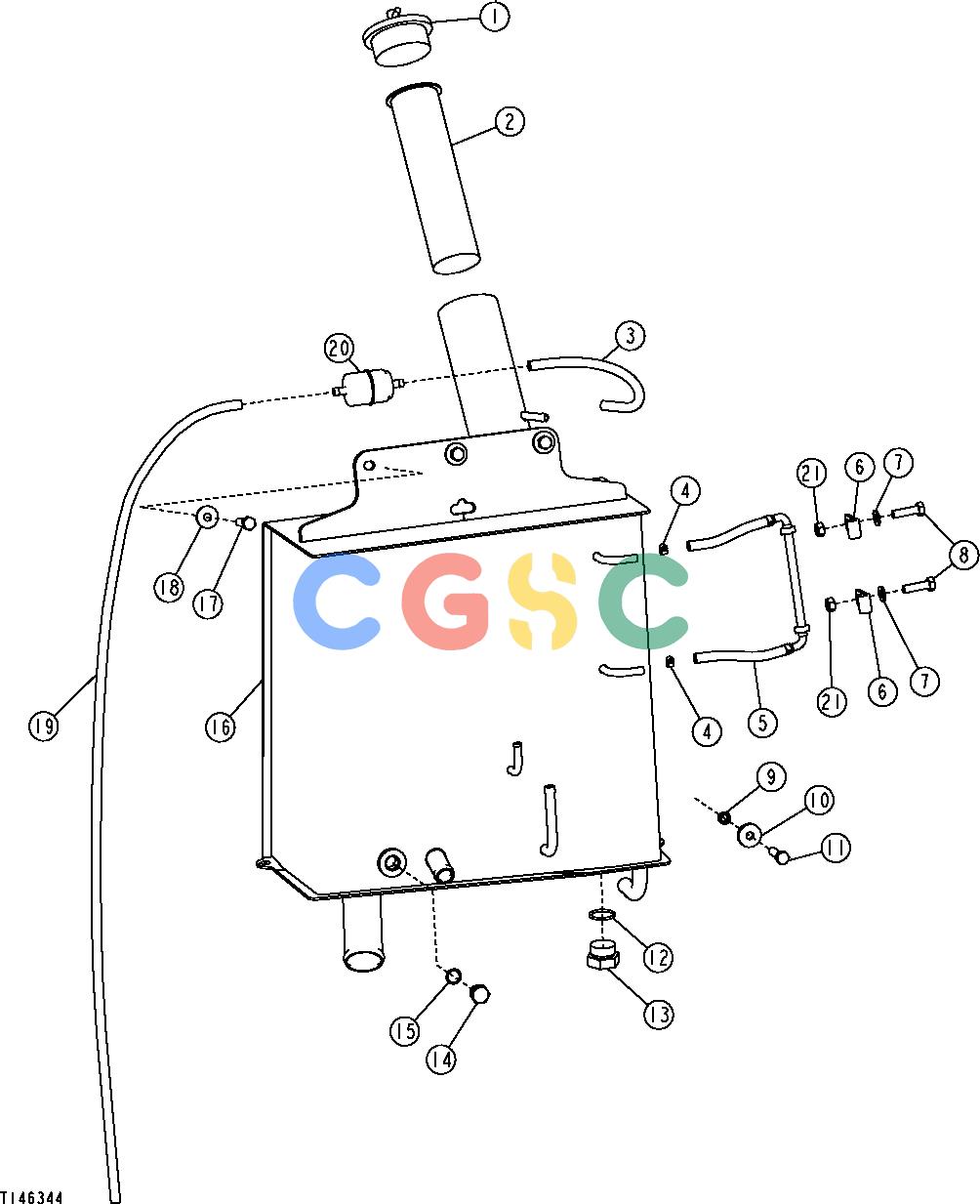

Pos.	Part No	Qty	Parts name	Comments
1.	AT174743	[1]	Filler Cap
2.	AT161638	[1]	Strainer
3.	........	[1]	Hose	(CTL) (MF M87571)
4.	AR77962	[2]	Hose Clamp
5.	AT199541	[1]	Level Gauge
6.	T185683	[2]	Clip
7.	24M7239	[2]	Washer	10.700 X 21 X 2.500 MM
8.	19M7662	[2]	Cap Screw	M10 X 30
9.	T184657	[1]	Spacer
10.	24H1311	[1]	Washer	13/32" X 1-1/4" X 0.220"
11.	19M8637	[1]	Cap Screw	M10 X 40
12.	R29936	[1]	O-Ring
12.	R26375	[1]	O-Ring
13.	R36636	[1]	Fitting Plug
13.	R39112	[1]	Fitting
14.	R39112	[1]	Fitting
15.	R26375	[1]	O-Ring
16.	AT184082	[1]	Hydraulic Reservoir
16.	AT196813	[1]	Hydraulic Reservoir
16.	AT280396	[1]	Hydraulic Reservoir
16.	........	[1]	Hydraulic Reservoir	(AT197542 NLA) (SUB AT305766 ) (ALSO ORDER T208467, (4) AT300153 AND TY22556)
16.	AT305766	[1]	Hydraulic Reservoir
17.	19M8637	[3]	Cap Screw	M10 X 40
18.	24M7296	[3]	Washer	10.500 X 30 X 2.500 MM
19.	........	[1]	Hose	(CUT TO LENGTH) (MF M87571)
20.	AT101565	[1]	Air Filter	BREATHER INSTALL WITH FLOW ARROW POINTING TOWARD RESERVOIR
21.	14M7274	[2]	Nut	M10
