约翰迪尔零件查询310G - BACKHOE, LOADER Main Hydraulic SystemEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 937 次

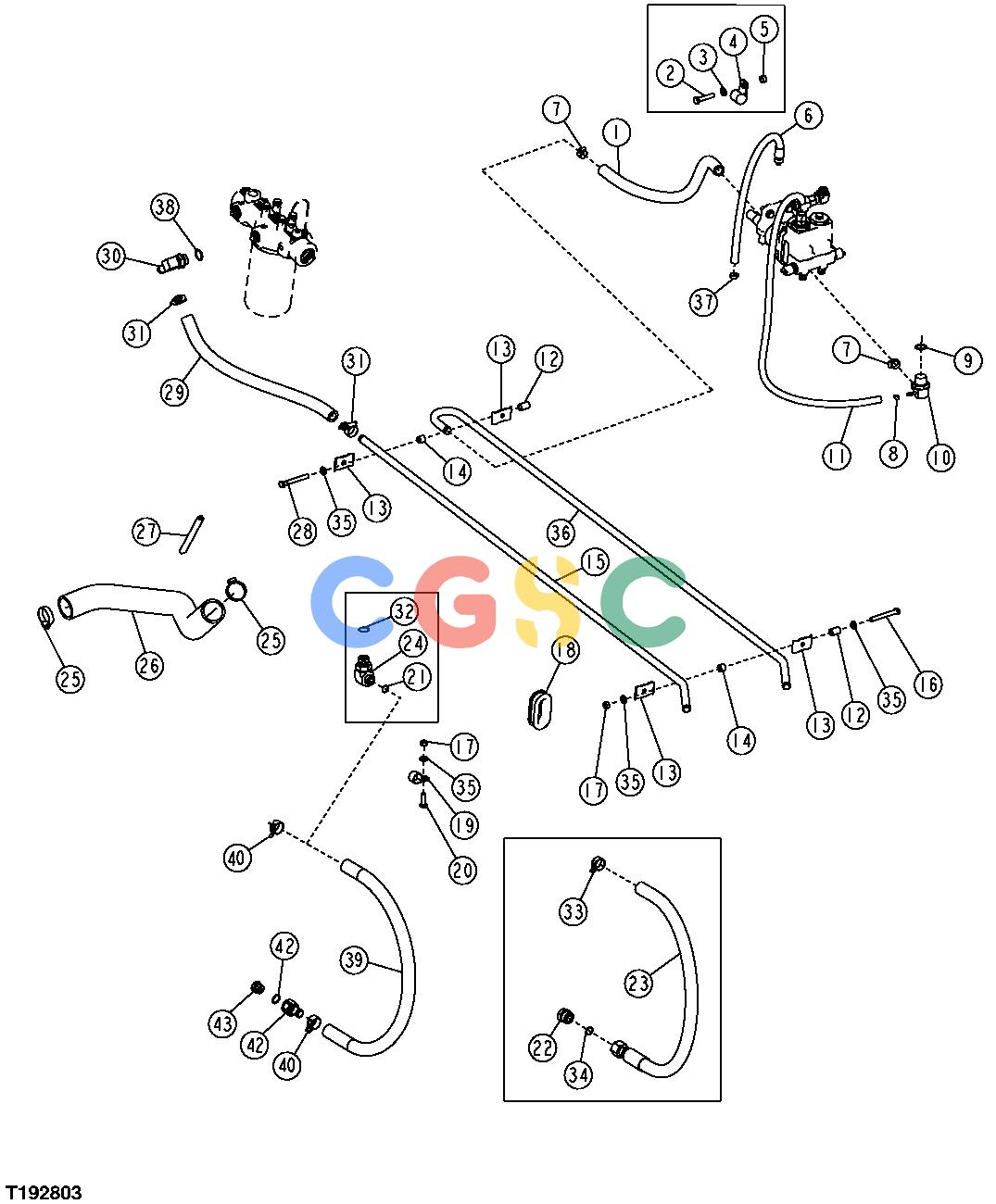

Pos.	Part No	Qty	Parts name	Comments
1.	........	[1]	Hose	(CTL, 322 MM) (MF T78497)
2.	19M8600	[2]	Cap Screw	M10 X 50
3.	24M7239	[2]	Washer	10.700 X 21 X 2.500 MM
4.	R46667	[2]	Clamp
5.	28H3412	[2]	Washer	0.493" X 0.675" X 3/8"
6.	AT185078	[1]	Hydraulic Hose - Fabricate	(ALSO ORDER 62H1042 AND T77613)
6.	AT101779	[1]	Hydraulic Hose - Fabricate	STC
7.	AT301917	[2]	Hose Clamp	(SUB FOR RE65978)
8.	TY22462	[1]	Clamp	(SUB FOR AR48236)
9.	U12547	[1]	O-Ring
10.	AT187779	[1]	Tee Fitting
11.	AT185077	[1]	Hydraulic Hose - Fabricate	(ALSO ORDER 62H1042 AND T77613)
11.	AT280598	[1]	Hydraulic Hose - Fabricate	STC
11.	62H1042	[1]	Adapter Fitting
12.	H141836	[2]	Bushing
13.	R46919	[4]	Half Clamp
14.	T126052	[2]	Spacer
15.	T183913	[1]	Oil Tube	UPPER
16.	19M8081	[1]	Cap Screw	M10 X 80
17.	14M7274	[2]	Nut	M10
18.	T158476	[1]	Grommet
19.	T102934	[1]	Clamp
20.	19M7662	[1]	Cap Screw	M10 X 30
21.	T77932	[1]	O-Ring
22.	38H1148	[1]	Fitting Plug
22.	38H1149	[1]	Fitting Plug
23.	AT191884	[1]	Hydraulic Hose - Fabricate
23.	AT196814	[1]	Hydraulic Hose - Fabricate
24.	38H1404	[1]	Elbow Fitting
25.	AT308555	[2]	Hose Clamp	(SUB FOR AR65294)
26.	AT186170	[1]	Suction Hose
27.	........	[1]	Molding	(CTL) (MF T61861)
28.	19M8081	[1]	Cap Screw	M10 X 80
29.	........	[1]	Hose	(CTL, 622 MM) (MF T78497)
30.	AH61472	[1]	Hose Fitting
31.	AT301917	[4]	Hose Clamp	(SUB FOR RE65978 AND AT196496)
32.	U12547	[1]	O-Ring
33.	T185826	[1]	Clamp
34.	T77932	[1]	O-Ring
34.	T77858	[1]	O-Ring
35.	24M7239	[4]	Washer	10.700 X 21 X 2.500 MM
36.	........	[1]	Oil Tube	LOWER (SUB T188573)
36.	T188573	[1]	Oil Tube	LOWER
37.	AR77962	[1]	Hose Clamp
38.	U12547	[1]	O-Ring
39.	........	[1]	Bulk Hose	(CTL, 32 IN.) (MF T78497 ) (SUB FOR T203949)
40.	T185826	[2]	Clamp
41.	T190892	[1]	Hose Fitting
42.	R26906	[1]	O-Ring
43.	R27474	[1]	Drain Plug
