约翰迪尔零件查询310SK TC - BACKHOE, LOADER Differential and Rear Axle Housings ( - 270515)EPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Differential and Rear Axle Housings ( - 270515)EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 591 次

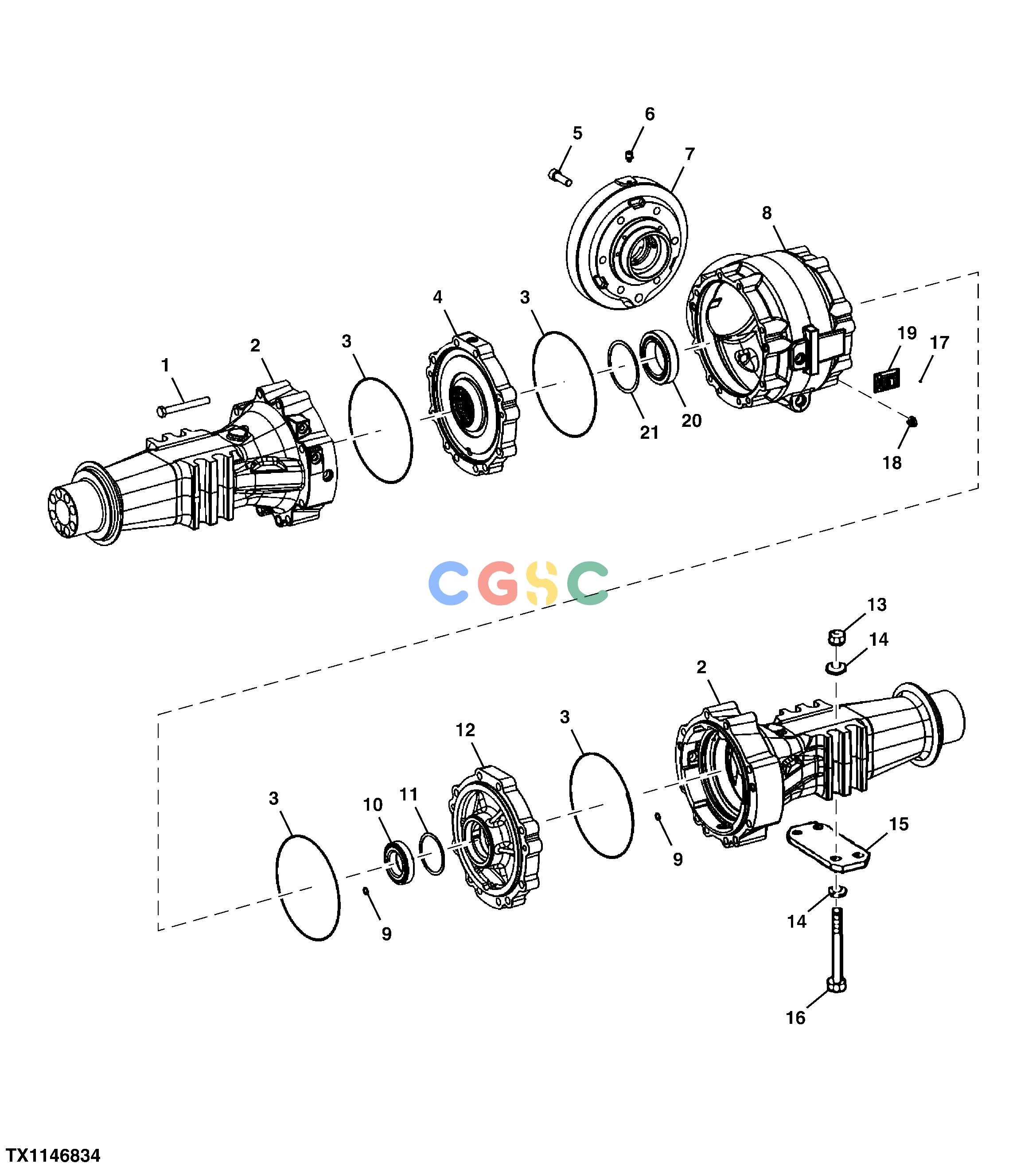

Pos.	Part No	Qty	Parts name	Comments
1.	T228913	[20]	Screw
2.	T233864	[2]	Housing	SUB FOR T228970
3.	T218785	[4]	Seal	SUB FOR T228943
4.	T258089	[1]	Housing	LEFT HAND
5.	T228939	[6]	Screw
6.	AL32877	[1]	Vent
7.	T218490	[1]	Housing
8.	T228957	[1]	Housing
9.	T159373	[8]	O-Ring
10.	JD10229	[1]	Bearing Cup
10.	JD8161	[1]	Bearing Cone
11.	T228935	[1]	Shim	0.90 MM
11.	T177394	[1]	Solid Shim	0.95 MM
11.	T228934	[1]	Shim	1.00 MM
11.	T228933	[1]	Shim	1.05 MM
11.	T228932	[1]	Shim	1.10 MM
11.	T228931	[1]	Shim	1.15 MM
11.	T228930	[1]	Shim	1.20 MM
11.	T228929	[1]	Shim	1.25 MM
11.	T228928	[1]	Shim	1.30 MM
11.	T228927	[1]	Shim	1.35 MM
11.	T228926	[1]	Shim	1.40 MM
11.	T228925	[1]	Shim	1.45 MM
11.	T228924	[1]	Shim	1.50 MM
11.	T228923	[1]	Shim	1.55 MM
11.	T228922	[1]	Shim	1.60 MM
11.	T228921	[1]	Shim	1.65 MM
11.	T228920	[1]	Shim	1.70 MM
11.	T228919	[1]	Shim	1.75 MM
11.	T228918	[1]	Shim	1.80 MM
11.	T228917	[1]	Shim	1.85 MM
11.	T228916	[1]	Shim	1.90 MM
11.	T228915	[1]	Shim	1.95 MM
11.	T228914	[1]	Shim	2.00 MM
12.	T228973	[1]	Housing	RIGHT HAND
13.	14M7315	[6]	Nut	M20
14.	N231749	[16]	Washer
15.	T147269	[2]	Plate
16.	19M9749	[8]	Cap Screw	M20 X 250
17.	25M7021	[4]	Groove Pin	3 X 5 MM
18.	T159565	[2]	Plug	INCLUDES H81744
18.	H81744	[2]	O-Ring	20.498 X 1.524 MM (0.807" X 0.060")
19.	........	[1]	Plate	NLA
20.	AT179504	[1]	Tapered Roller Bearing
21.	T159444	[1]	Shim	0.10 MM
21.	T159445	[1]	Shim	0.15 MM
21.	T159443	[1]	Shim	0.20 MM
21.	T159440	[1]	Shim	0.30 MM
21.	T159441	[1]	Shim	0.50 MM
21.	T228936	[1]	Shim	0.75 MM
21.	T159442	[1]	Shim	1.00 MM
21.	T159446	[1]	Shim	1.10 MM
21.	T159447	[1]	Shim	1.20 MM
21.	T159448	[1]	Shim	1.30 MM
21.	T159449	[1]	Shim	1.40 MM
21.	T159450	[1]	Shim	1.50 MM
21.	T159451	[1]	Shim	1.60 MM
21.	T159452	[1]	Shim	1.70 MM
21.	T159453	[1]	Shim	1.80 MM
21.	TTZF160528	[1]	Shim	2.00 MM
21.	TTZF160529	[1]	Shim	2.05 MM
21.	TTZF160530	[1]	Shim	2.10 MM
21.	T183500	[1]	Solid Shim	2.15 MM
21.	TTZF160532	[1]	Shim	2.20 MM
21.	T183502	[1]	Solid Shim	2.25 MM
21.	TTZF160534	[1]	Shim	2.30 MM
21.	TTZF160535	[1]	Shim	2.35 MM
21.	T183505	[1]	Solid Shim	2.40 MM
21.	T183506	[1]	Solid Shim	2.45 MM
21.	T183507	[1]	Solid Shim	2.50 MM
21.	T159454	[1]	Shim	2.60 MM
21.	T159455	[1]	Shim	2.70 MM
21.	T159457	[1]	Shim	2.80 MM
21.	T159458	[1]	Shim	2.90 MM
21.	T159459	[1]	Shim	3.00 MM
21.	T159460	[1]	Shim	3.10 MM
21.	T159461	[1]	Shim	3.20 MM
21.	T159462	[1]	Shim	3.30 MM
21.	T159463	[1]	Shim	3.40 MM
