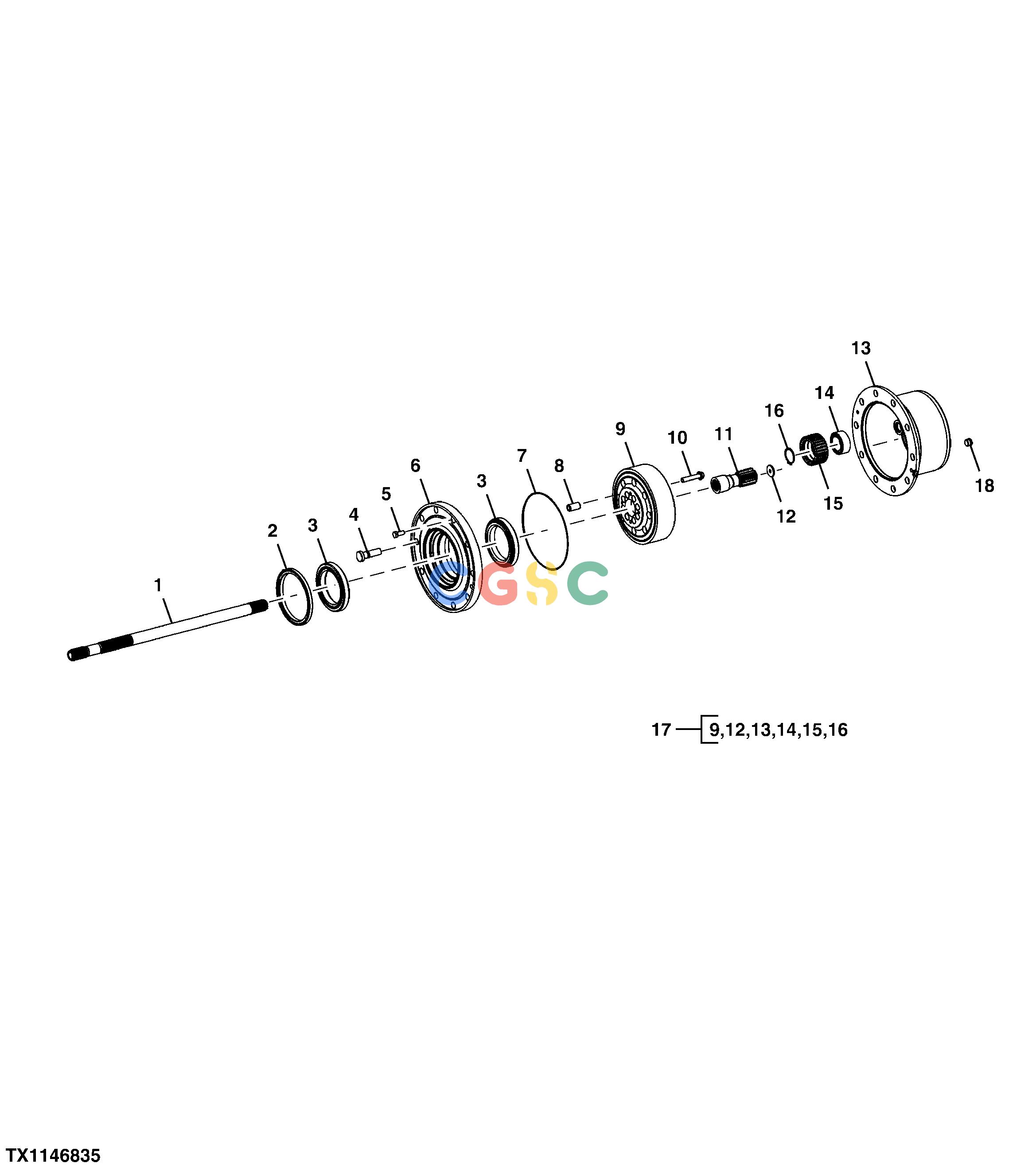

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Rear Axle Planetary Drive Pinion CarrierEPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
583 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T228937
|
[2] |
Shaft
|
|
| 2. |
T187684
|
[2] |
Seal
|
|
| 3. |
AL81844
|
[4] |
Tapered Roller Bearing
|
|
| 4. |
T218487
|
[20] |
Stud
|
|
| 5. |
AT321472
|
[4] |
Bolt
|
|
| 6. |
T228975
|
[2] |
Hub
|
|
| 7. |
T218785
|
[2] |
Seal
|
|
| 8. |
T228942
|
[16] |
Bushing
|
|
| 9. |
T228952
|
[2] |
Ring Gear
|
|
| 10. |
T228956
|
[16] |
Screw
|
|
| 11. |
T291953
|
[2] |
Shaft
|
|
| 12. |
T291793
|
[2] |
Thrust Washer
|
|
| 13. |
T228908
|
[2] |
Planet Pinion Carrier
|
|
| 14. |
AT339627
|
[8] |
Spherical Roller Bearing
|
|
| 15. |
AT399523
|
[8] |
Gear
|
|
| 16. |
40M7166
|
[8] |
Snap Ring
|
|
| 17. |
AT399073
|
[1] |
Planetary Assembly
|
|
| 18. |
T159565
|
[2] |
Plug
|
|
