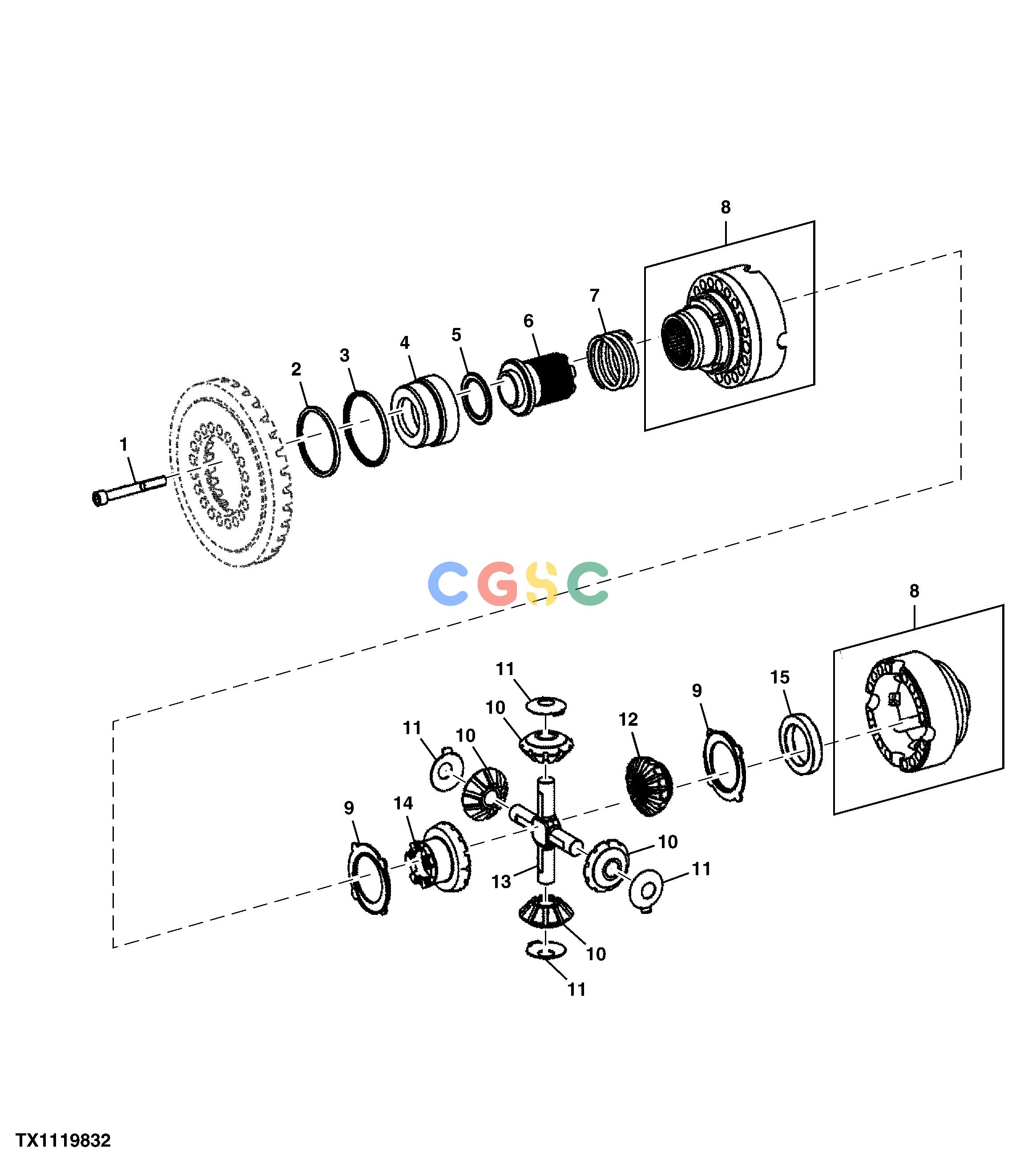

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Differential Case and GearsEPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
992 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T228723
|
[16] |
Screw
|
|
| 1. |
T280887
|
[4] |
Screw
|
|
| 2. |
T258096
|
[1] |
Seal
|
|
| 3. |
T258097
|
[1] |
Seal
|
|
| 4. |
T159343
|
[1] |
Piston
|
|
| 5. |
AT179498
|
[1] |
Needle Bearing
|
|
| 6. |
T166336
|
[1] |
Shift Collar
|
|
| 7. |
T159341
|
[1] |
Spring
|
|
| 8. |
AT369887
|
[1] |
Differential
|
|
| 9. |
T228714
|
[2] |
Thrust Washer
|
|
| 10. |
T291546
|
[4] |
Bevel Gear
|
|
| 11. |
T228716
|
[4] |
Thrust Washer
|
|
| 12. |
T291547
|
[1] |
Bevel Gear
|
|
| 13. |
T228717
|
[1] |
Pinion Shaft
|
|
| 14. |
T293145
|
[1] |
Bevel Gear
|
|
| 15. |
T292388
|
[1] |
Spacer
|
|
