约翰迪尔零件查询310SK TC - BACKHOE, LOADER Spiral Bevel Input Pinion and Ring Gear SetEPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Spiral Bevel Input Pinion and Ring Gear SetEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 206 次

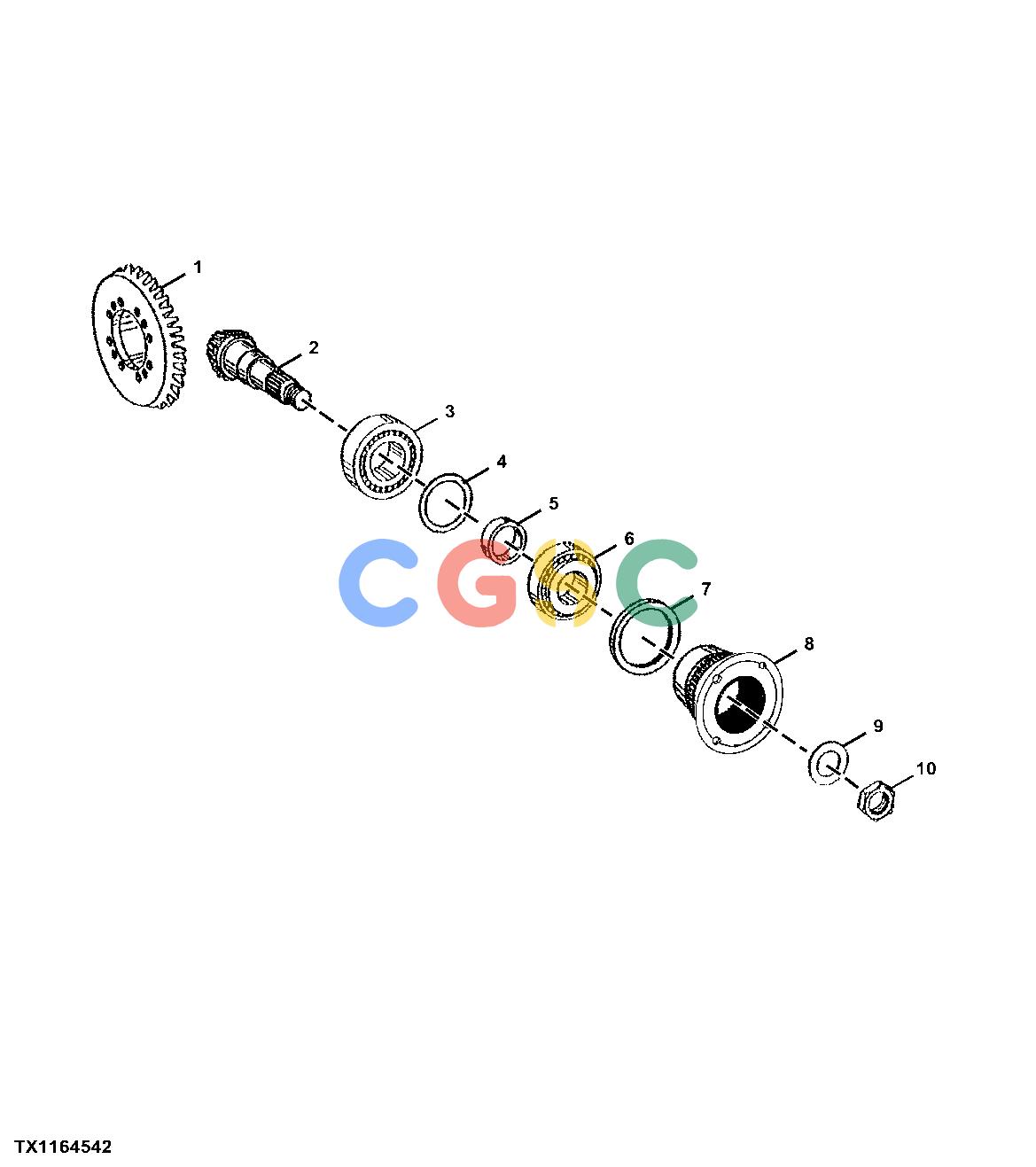

Pos.	Part No	Qty	Parts name	Comments
1.	T230866	[1]	Bevel Gear
1.	T293141	[1]	Bevel Gear	SUB FOR T258088
2.	AT400190	[1]	Tapered Roller Bearing	SUB FOR AT176491
3.	T159310	[1]	Shim	1.20 MM
3.	T159315	[1]	Shim	1.30 MM
3.	T159314	[1]	Shim	1.40 MM
3.	T159309	[1]	Shim	1.50 MM
3.	T159313	[1]	Shim	1.60 MM
3.	T159308	[1]	Shim	1.70 MM
3.	T159311	[1]	Shim	1.90 MM
3.	T159307	[1]	Shim	2.00 MM
3.	AT321701	[1]	Shim	1.70 MM
3.	AT321702	[1]	Shim	1.00 MM
3.	AT321703	[1]	Shim	0.90 MM
3.	AT321704	[1]	Shim	0.80 MM
3.	AT321705	[1]	Shim	0.70 MM
3.	AT321706	[1]	Shim	0.60 MM
3.	R75834	[1]	Shim	0.50 MM
3.	R75404	[1]	Shim	0.30 MM
3.	R75403	[1]	Shim	0.20 MM
3.	R75405	[1]	Shim	0.10 MM
3.	T228664	[1]	Shim	0.75 MM
3.	T228665	[1]	Shim	0.65 MM
3.	T228666	[1]	Shim	1.25 MM
3.	T228667	[1]	Shim	1.35 MM
3.	T228668	[1]	Shim	1.45 MM
3.	T228669	[1]	Shim	1.55 MM
3.	T228671	[1]	Shim	1.65 MM
3.	T228672	[1]	Shim	1.75 MM
3.	T228673	[1]	Shim	1.85 MM
4.	T293097	[1]	Shim	16.00 MM
4.	T293098	[1]	Shim	16.10 MM
4.	T293099	[1]	Shim	16.20 MM
4.	T293100	[1]	Shim	16.30 MM
4.	T293101	[1]	Shim	16.40 MM
4.	T293102	[1]	Shim	16.50 MM
4.	T293103	[1]	Shim	16.56 MM
4.	T293104	[1]	Shim	16.60 MM
4.	T293105	[1]	Shim	16.62 MM
4.	T293106	[1]	Shim	16.64 MM
	T293107	[1]	Shim	16.66 MM
	T293108	[1]	Shim	16.68 MM
	T293109	[1]	Shim	16.70 MM
	T293110	[1]	Shim	16.72 MM
	T293111	[1]	Shim	16.74 MM
	T293112	[1]	Shim	16.76 MM
	T293113	[1]	Shim	16.78 MM
	T293114	[1]	Shim	16.80 MM
	T293115	[1]	Shim	16.82 MM
	T293116	[1]	Shim	16.84 MM
	T293117	[1]	Shim	16.86 MM
	T293118	[1]	Shim	16.88 MM
	T314054	[1]	Shim	16.89 MM
	T293119	[1]	Shim	16.90 MM
	T293120	[1]	Shim	16.92 MM
	T293121	[1]	Shim	16.94 MM
	T293122	[1]	Shim	16.96 MM
	T293123	[1]	Shim	16.98 MM
	T293124	[1]	Shim	17.00 MM
	T293125	[1]	Shim	17.02 MM
	T293126	[1]	Shim	17.04 MM
	T293127	[1]	Shim	17.06 MM
	T293128	[1]	Shim	17.08 MM
	T293129	[1]	Shim	17.10 MM
	T293130	[1]	Shim	17.12 MM
	T293131	[1]	Shim	17.14 MM
	T293132	[1]	Shim	17.16 MM
	T293133	[1]	Shim	17.18 MM
	T293134	[1]	Shim	17.20 MM
	T293135	[1]	Shim	17.22 MM
	T293136	[1]	Shim	17.24 MM
	T293137	[1]	Shim	17.26 MM
	T293138	[1]	Shim	17.28 MM
	T293139	[1]	Shim	17.30 MM
	T293140	[1]	Shim	17.40 MM
5.	AL79794	[1]	Tapered Roller Bearing
6.	T218833	[1]	Guard
7.	T218489	[1]	Flange
8.	T159316	[1]	Washer
9.	T228709	[1]	Nut
10.	T293142	[1]	Pinion	SUB FOR T230865
